4
3 ASSEMBLY
After assembly, the actuator can operate in any position.
Adapting the actuator to your valve input
Actuator is supplied with a set of adapters to ensure the output fits
your valve shaft.
You only need to insert the accurate square adapter inside the socket.
Adapter can be oriented as parallel square or as diagonal square,
depending on your need.
Standard
On request
Standard
On request
Internal size in mm
Max. shaft length accepted 20mm
Internal size in mm
Max. shaft length accepted 25mm
AQ1L/AQ3L AQ7L

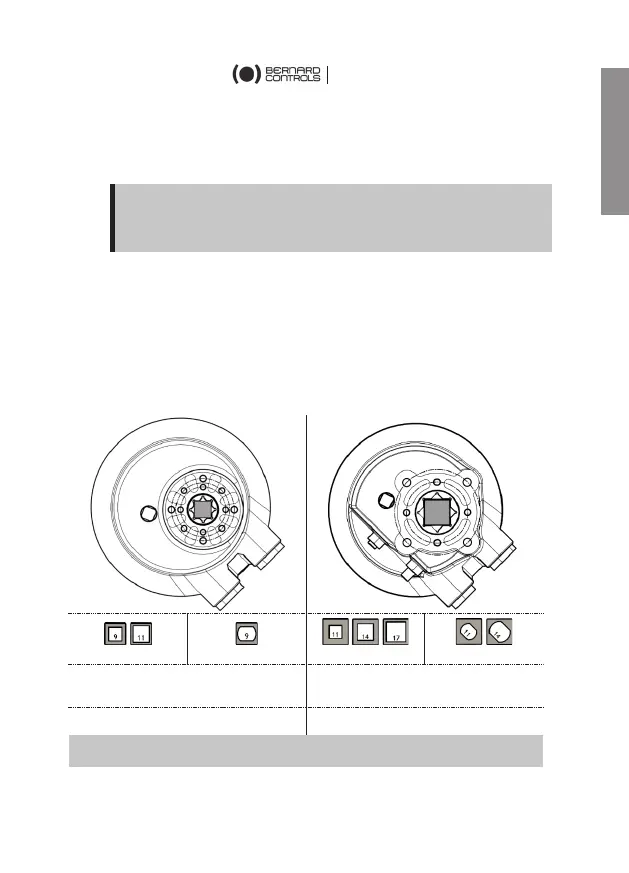

Adapters shapes (view from under the actuator)

However:
• It is not recommended to install actuator with cover downwards
• Cable glands must not be oriented upwards
(loss of water tightness)
