Bernina 1230 - S-1230 Print

S-1230 Print

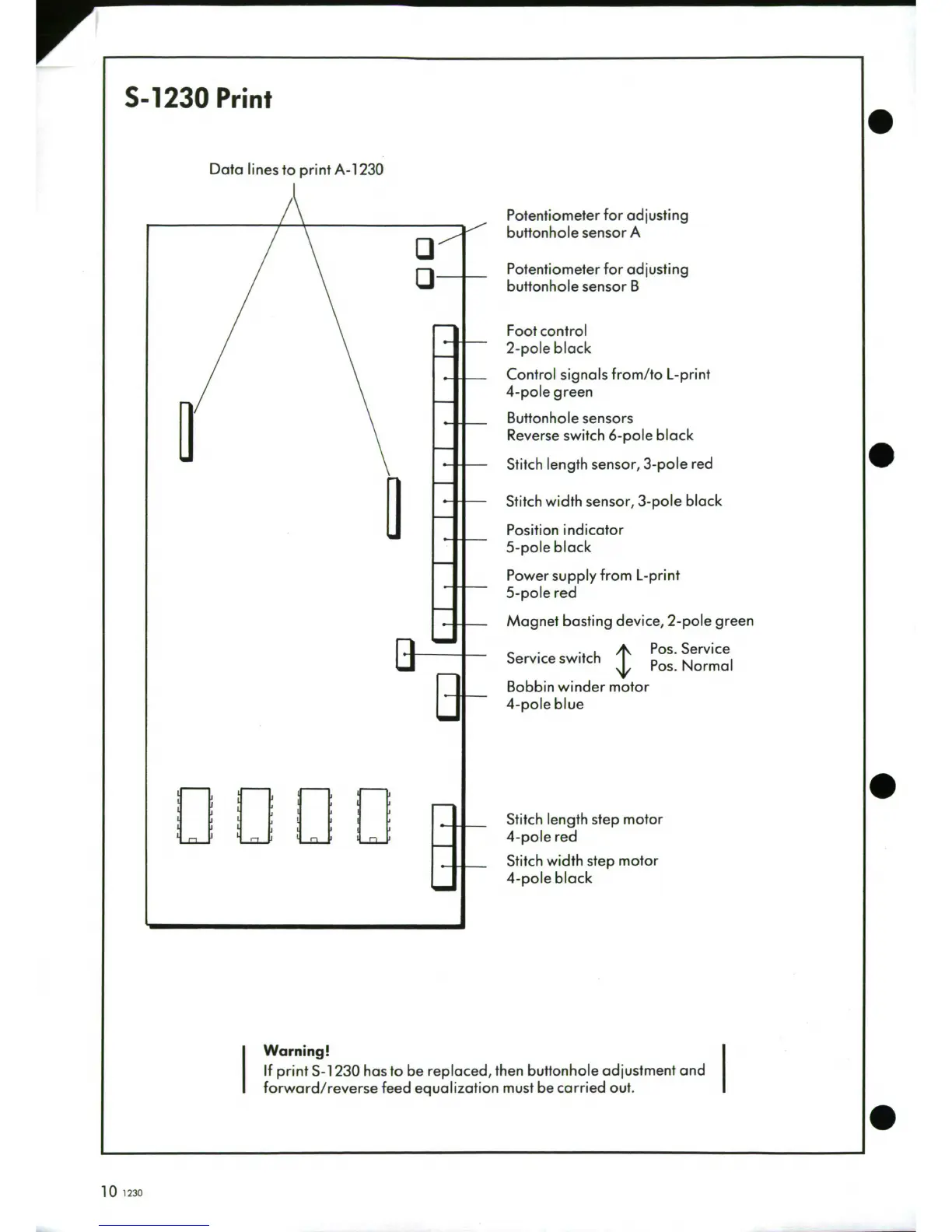

Data lines to print A-1230
Potentiometer
for
adjusting
buttonhole
sensor A
Potentiometer for adjusting
buttonhole
sensor
B
Foot control
2-pole black
Control
signals from/to
L-print
4-pole green
Buttonhole sensors
Reverse switch 6-pole black
L- Stitch length sensor, 3-pole red
Stitch
width sensor,
3-pole black
Position indicator
5-pole black
Power
supply from
L-print
5-pole red
Magnet basting device, 2-pole green
Service switch Pos. Service
I Pos. Normal
Bobbin winder motor
4-pole blue
Stitch length step motor
4-pole red
Stitch width step motor
4-pole black
Warning!
If print S-1230
has to be replaced,
then buttonhole
adjustment
and
forward/reverse feed equalization must be carried out.
