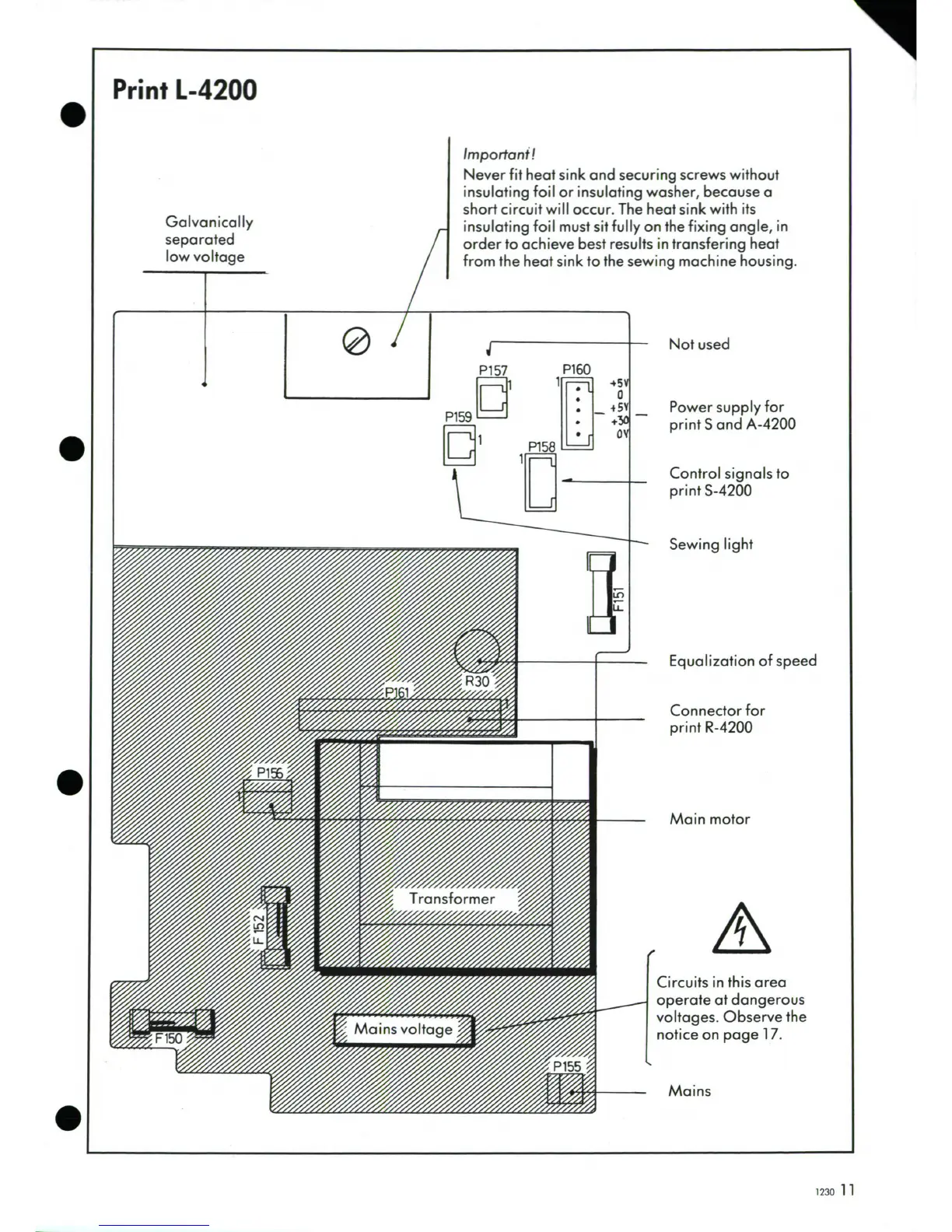

Bernina 1230 - Print L-4200

Print L-4200
Important!
Never fit
heat sink and securing screws without
insulating foil or insulating washer, because a
short circuit
will occur. The heat sink with its
Galvanically
insulating foil must sit fully on the fixing angle,
in
separated
order to achieve best results in transfering heat
low voltage from the heat sink to the sewing
machine housing.
4- Not used
P157 P160
4
[ 1 45V
41 I
Power supply
for
P159
1-
print
S
and
A-4200
1Control
signals
to
print S-4200
Sewing light
Equalization of speed
Connector
for
print R-4200
Main motor
Circuits
in this area
operate at dangerous
voltages. Observe the
F Main notice
on page 17.
Mains
123011
