Supertop
®
– Installation Instructions
Rev. G 0312 51599 pg. 5
A loose Windshield Re-
tainer may allow the top
to disengage from the
windshield, causing damage to the top and possible
injury to the occupants of the vehicle.
Make certain that the Windshield Retainer is se-
curely fastened to the windshield during installation
and at all other times by checking the tightness of
the mounting screws every three months.
Do not use any drill size other than 1/8". Failure
to use the correct size may cause the Windshield
Retainer to loosen.

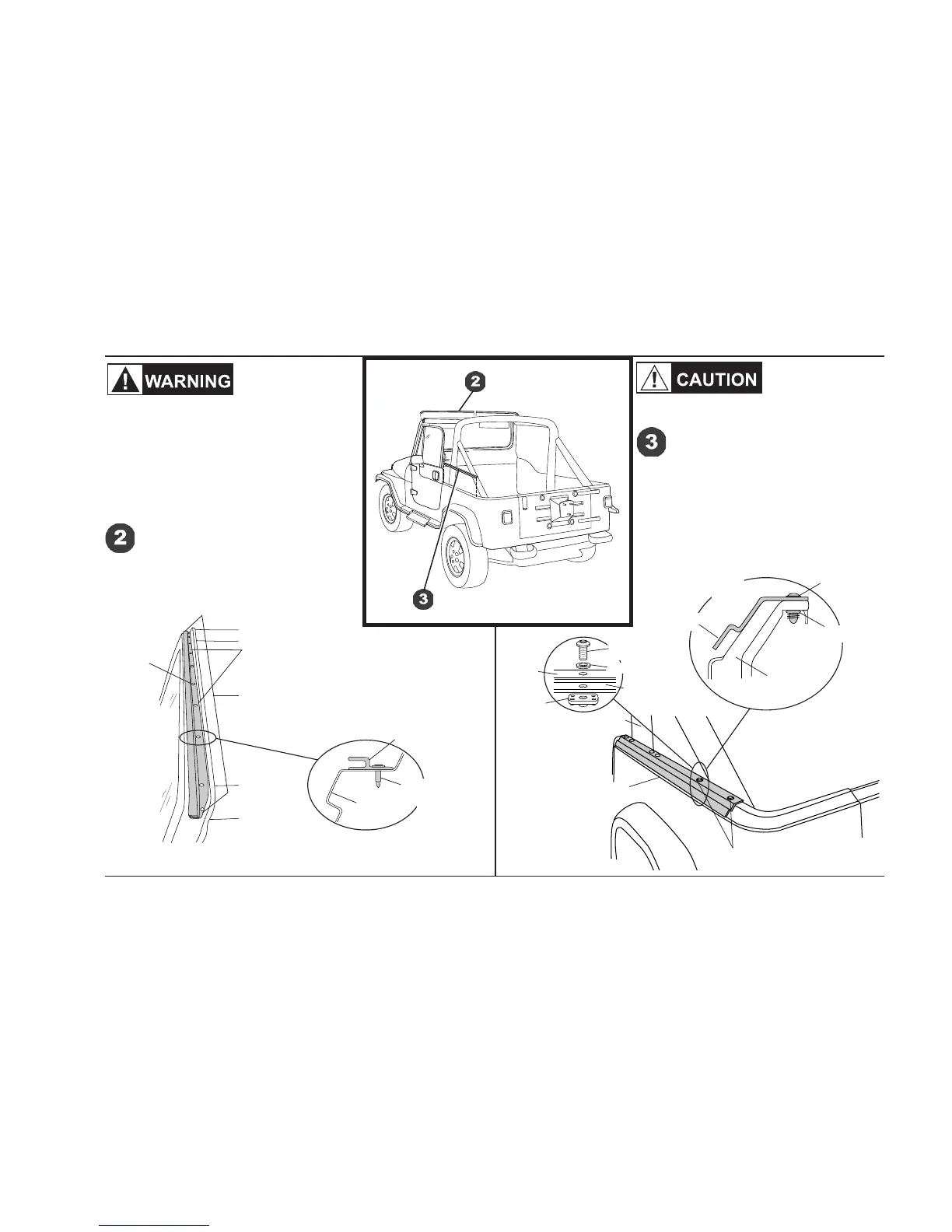

Install Windshield Retainer
Position the two piece Windshield Retainer on
top of windshield frame. Use retainer pieces as
templates to mark, center punch and drill eleven
1/8" holes. Install with eleven #8 x 1/2" Pan Head
Screws.
Windshield
Windshield Retainer
(2 pieces)
Use retainer pieces
as guide to drill holes.
Install retainer pieces
with #8 x 1/2" Phillips
Head Screws
Windshield
Frame
Front
Windshield
Retainer
#8 x 1/2"
Pan Head
Screw
Drill 1 hole
between the
two retainer
pieces
Windshield
Retainer Detail
Cross Section
Install the Left and Right Side Belt Rails on each
side of the vehicle. Use the Belt Rails as templates
to mark, center punch and drill six 3/8" holes along
the top edge of the body on each side of the vehicle.
Secure the two rear holes in the rails with two 5/16"
Phillips Head Bolts, two 5/16" Washers and two
5/16" Tapping Plates. Do not tighten the bolts yet.
Install Side Belt Rails
When drilling in the top
edge of the vehicle body,
check underneath for
wiring for the rear lights. Pull the wiring out of the
way before drilling.
Tapping Plate
Detail
Tapping
Plate
Corner
Belt Rail
5/16" Phillips
Head Bolt
Vehicle
Body
5/16" Washer
Side Belt
Rail
5/16" Phillips
Head Bolt
Side Belt
Rail
Inside of Vehicle
5/16" Phillips
Head Bolt and
5/16" Washer
Side Belt Rail Detail
Cross Section
Sport
Bar
Sport
Bar
Front
Tapping
Plate
Body Panel
To Next Page
