Bestop Supertop - Bow Assembly and Top Installation; Install Bow Assembly (Part 1)

Supertop
®
– Installation Instructions
Rev. G 0312 51599 pg. 7

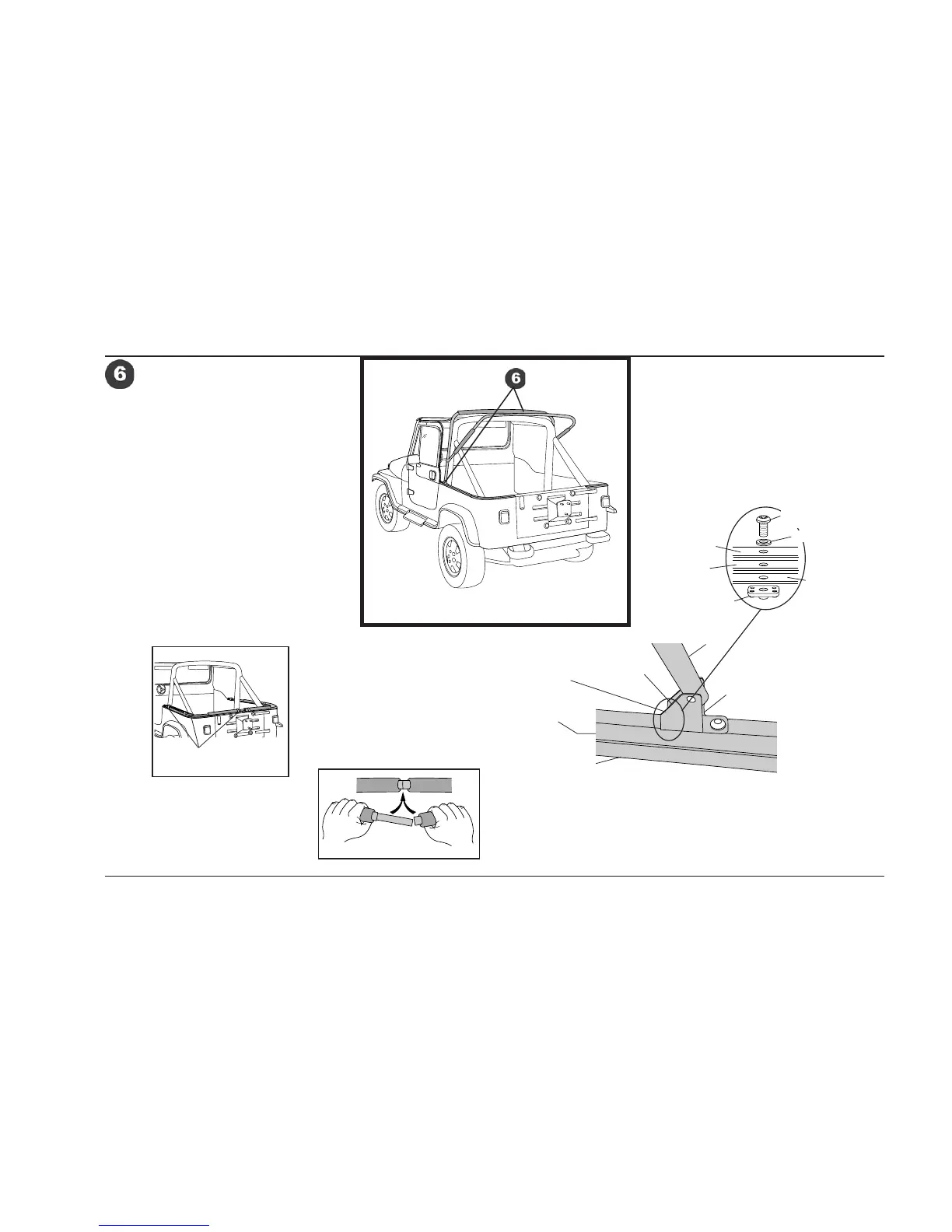

Install Bow Assembly
Lay the bow halves on top of the body with the
holes in the Bow Mounts over the third and fourth
holes in the Side Belt Rails.
It is important that the white packaging tape
remain on the bow assemblies until the forward
bolt is tightened on both sides.
Secure the FRONT hole in the Bow Mount with a
5/16-18 x 1" Phillips Head Bolt, a 5/16" Washer and
a 5/16" Tapping Plate. Once the front hole is secure,
cut the packing tape.
Start the male end of the Top (Front) Bow into the
female end. Push forward on the bow until the two
sides snap together. Slide the foam pieces on the
bow together.
Once the Bow Mounts are secure, tighten all of
the bolts on the Belt Rails.
Leave packing tape on Bow
Assemblies until front holes
of Bow Mounts are secure
Bow
Front
Side Belt Rail
Bow
Mount
Secure front hole
fi rst - inside mount
5/16-18 x 1"
Phillips Head
Bolt and 5/16
Washer
5/16 Tapping Plate -
under ledge
Tapping Plate
Detail
Tapping
Plate
Side
Belt Rail
5/16" Phillips
Head Bolt
Vehicle
Body
Bow
Mount
Push Bow Ends Together
