Bestop Supertop - Install Rear Corner Belt Rails; Install Vertical Retainer Mounts

Supertop
®
– Installation Instructions
Rev. G 0312 51599 pg. 6

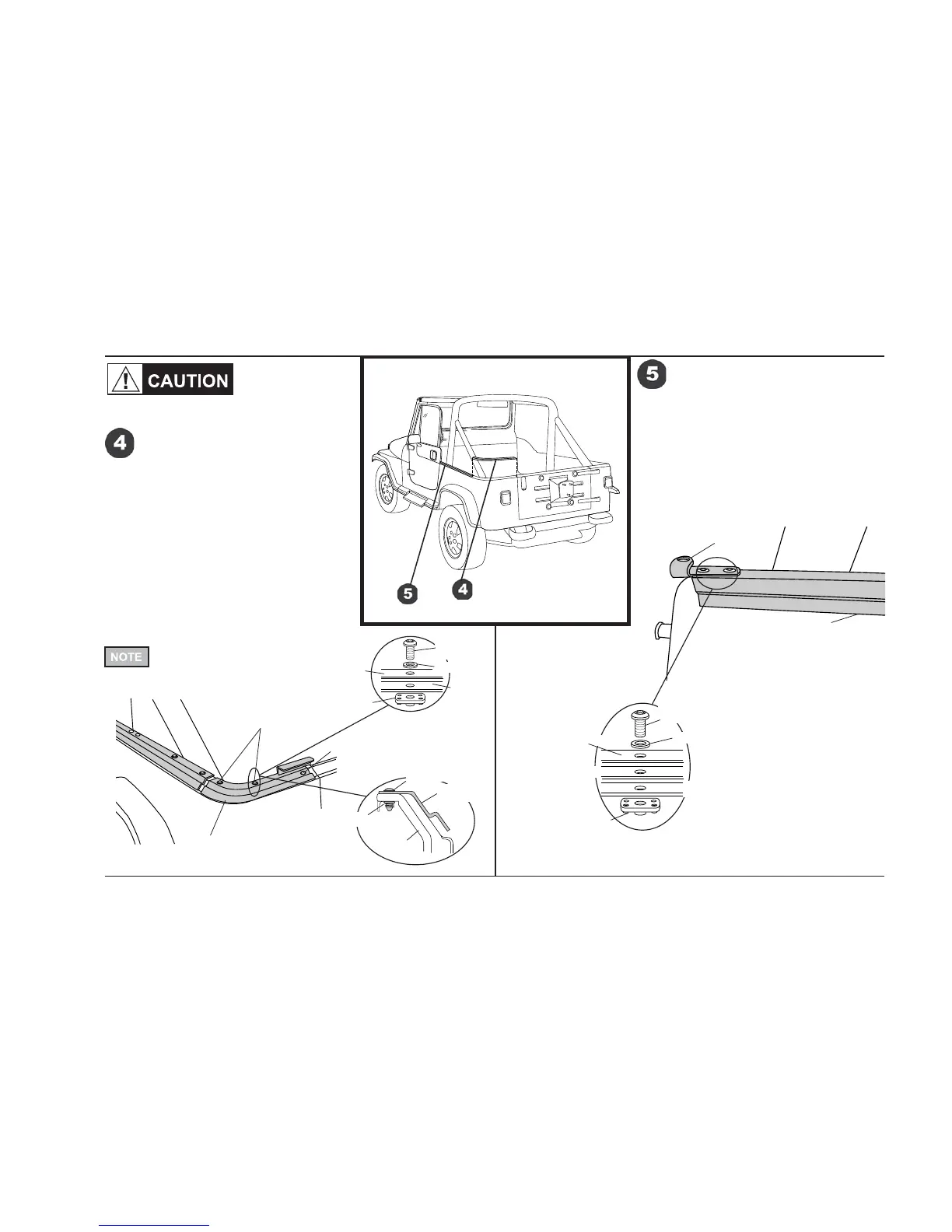

Install Rear Corner Belt Rails
When drilling in the top
edge of the vehicle body,
check underneath for
wiring for the rear lights. Pull the wiring out of the
way before drilling.
Tapping Plate
Detail
Tapping
Plate
Corner
Belt Rail
5/16" Phillips
Head Bolt
Vehicle
Body
5/16" Washer
Install Vertical Retainer
Mounts
Tapping Plate
Detail
Tapping
Plate
Vertical
Retainer
Mount
Side Belt
Rail
5/16" Phillips
Head Bolt
5/16" Washer
Vehicle Body
There may be a small gap of
+/- 1/4" between the Corner Belt
Rails and the Side Belt Rails.
Install the Left and Right Rear Corner Belt Rails on
each side of the vehicle. Notice that the Corner
Belt Rails do not butt-up against the Side Belt Rails
installed in Step 3, this is normal. Use the Corner
Belt Rails as templates to mark, center punch and
drill two 3/8" holes in the top edge of the vehicle
body. Some vehicles may already have some of
these holes. Install the Corner Belt Rails with two
5/16" Phillips Head Bolts, two 5/16" Washers and
two 5/16" Tapping Plates. At the location of the
remaining hole in the Corner Belt Rail, next to the
tailgate, mark, center punch and drill a 1/8" hole.
Install a #8 x 1/2" Pan Head Screw. Do not tighten
the bolts yet.
Rear Corner
Belt Rail
Tapping
Plate
Inside of
Vehicle
Body
Panel
Rear Corner Belt Rail
Detail Cross Section
Rear Corner
Belt Rail
Sport
Bar
5/16" Phillips
Head Bolts
5/16" Phillips
Head Bolt and
5/16" Washer
Screw
Install the Vertical Retainer Mounts on top of the
Side Belt Rails, just behind the door openings.
Secure them in place with two 5/16-18 x 1" Phillips
Head Bolts, two 5/16" Washers and two 5/16" Tap-
ping Plates. Do not tighten the bolts yet.
Vertical Retainer
Mount
Side Belt Rail
Sport Bar
