Beta LaserMike EFL User Manual

EFL Operator Guide
Installation
Part No. MAN/EN5103-0076 Page 14 of 34 Revision A (Jan 2014)

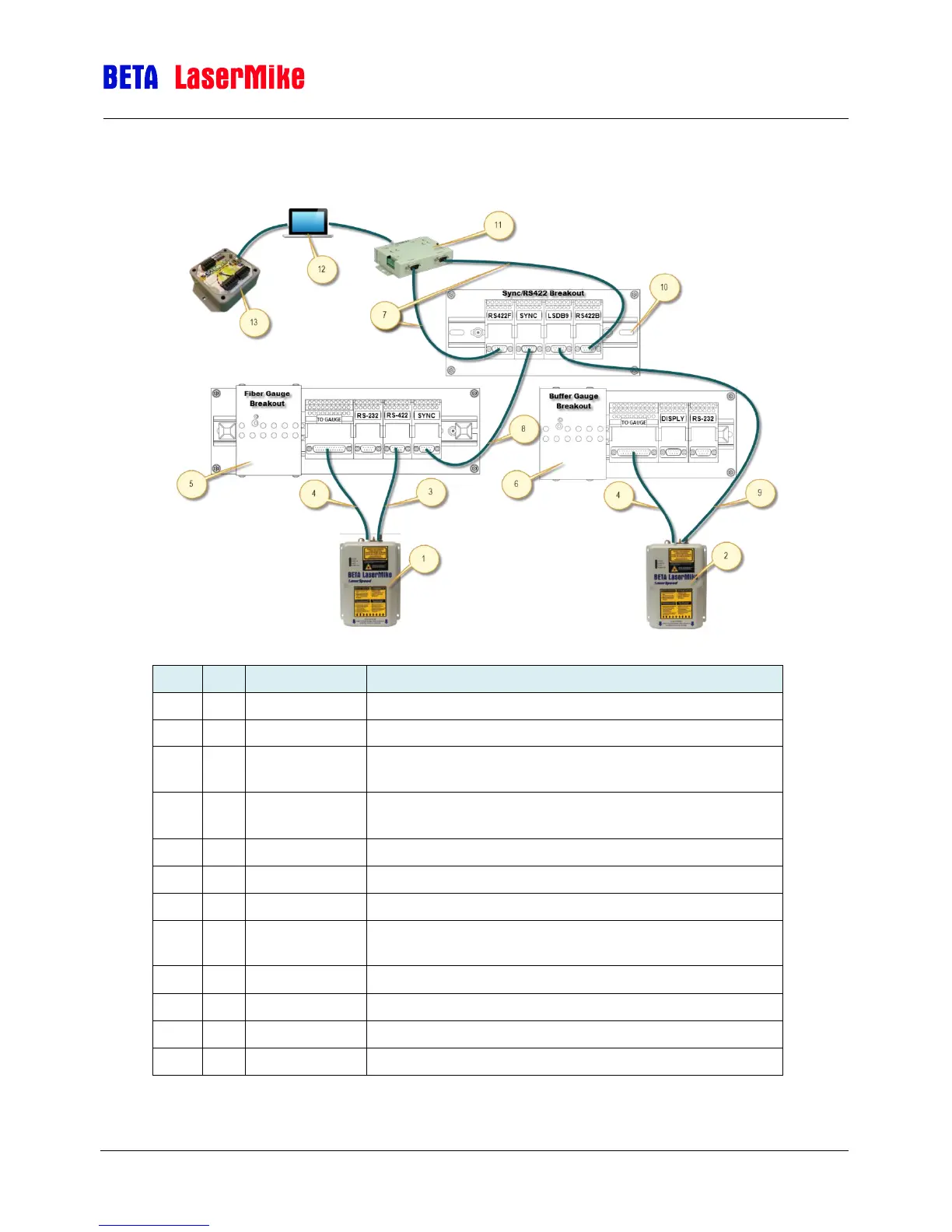

System Diagram
Item
Qty
Part Number
Description
1
1
85357
LS9000-303 (Rev H or higher firmware req’d)
2
1
86790
LS8000-303 (Rev H or higher firmware req’d)
3
1
62834-xxM
xxm DB9M-F cable, Connect RS422 from gauge to
terminal strip
4
2
240211-xxM
xxm DB25M-F cable, Connect gauge to power supply
terminal strip
5
1
ASY5103-0044
Power Supply Terminal Strip (Fiber gauge)
6
1
85329
Power Supply Terminal Strip (Buffer gauge)
7
2
62834-3M
3m DB9M-F cable, Connection to dual RS422 converter
8/9
2
62834-xxM
xxm DB9M-F cable, Connects fiber and buffer gauges to
synchronization terminal strip
10
1
ASY5103-0043
RS422 and synchronization terminal strip
11
1
62809
Dual RS422 to USB-serial converter
12
1
Computer to run EFLTrak software package
13
1
62835
USB Relay IO Module (Optional)
