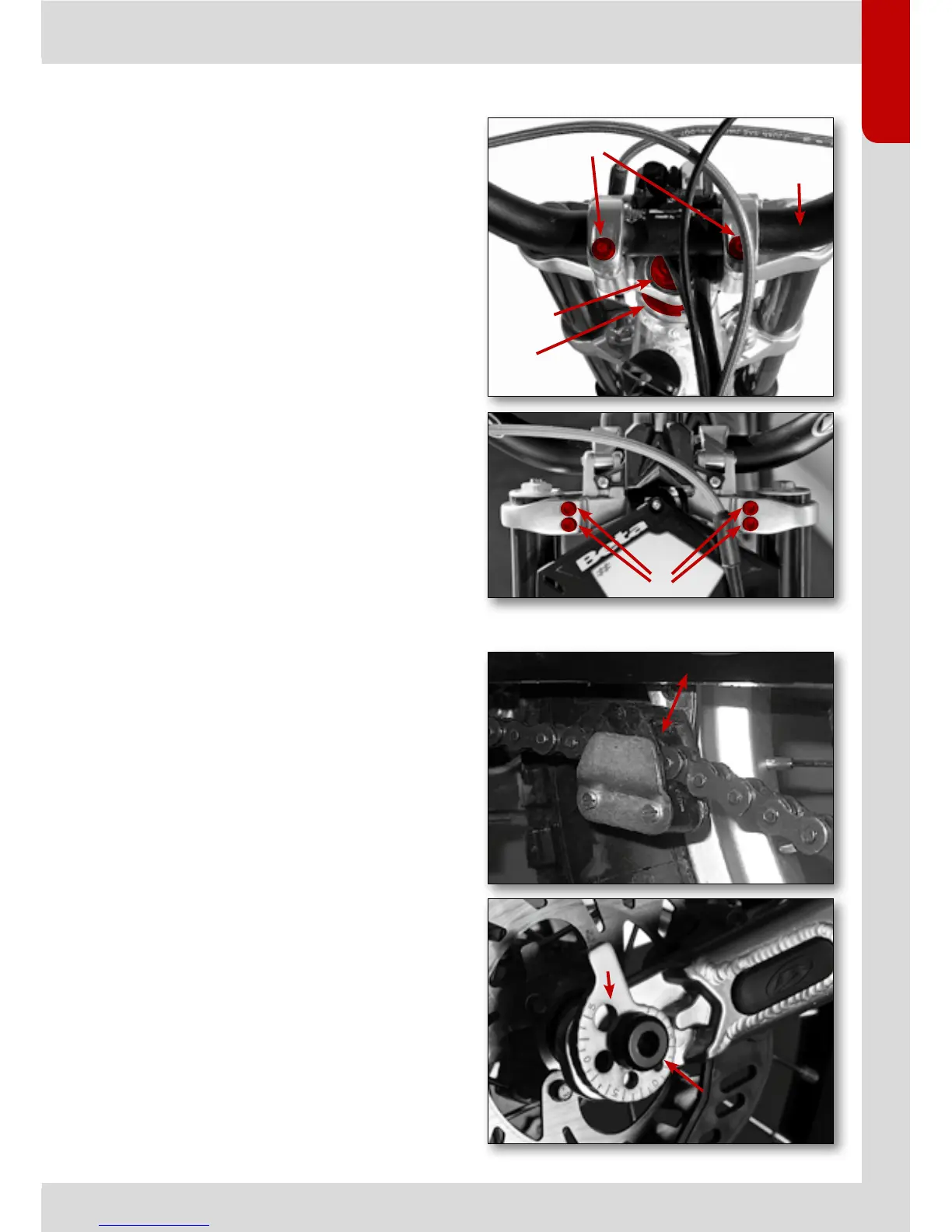

- Loosen the screws (G) on the upper pla-
te.
- Recover the clearance by intervening on
ring nut F.
- Check that the rotation of the steering
gear takes place in a fluent way. Excessive
tightening of the steering gear bearings
may jeopardise operation.
- Tighten nut E.
To re-secure, proceed in reverse order.
CHAIN TENSION
For a longer life of the final drive chain,
we suggest you to check its tension pe-
riodically.
Always clean off dirt deposits and lubricate it.
If the free clearance in the chain exceeds
20 mm, it needs tensioning as follows:
- Slack off nut A.
- Adjust with lever B.
- Adjust with the same lever on the opposi-
te side, taking it to the same position.
- Check the wheel alignment.
- Re-tighten nut A.
C
D
E
F
G
20M M
B
A
