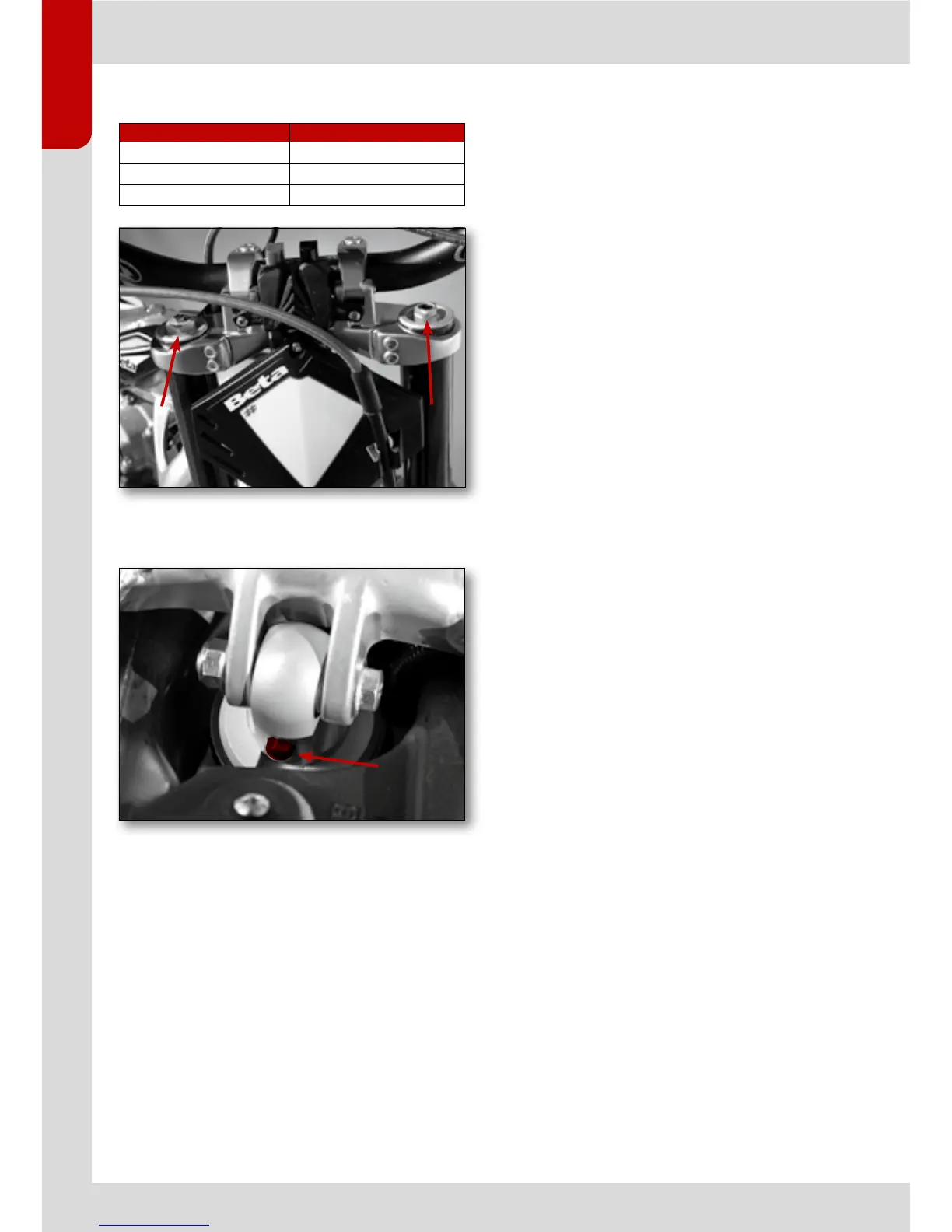

FRONT SUSPENSION ADJUSTMENT
Forks
- For a more reactive ride, unscrew adjuster
knob B completely, with respect to the
standard position.
- For a more controlled ride, preload the
spring by about 4-5 turns, using screw
A, and lock knob B 15 clicks from fully
open (about mid-point in the range of
adjustment).
- Rider’s weight. Adjust to compensate for
the rider’s weight as follows.
In the event of any abnormality in opera-
tion, please contact our authorised service
centres.
REAR SHOCKABSORBER ADJUSTMENT
Information on adjustment
- For a more reactive ride, back off the com-
pression adjustment screw (A).
- For a more controlled ride, tighten the
compression adjustment screw (A).
Note
For the standard adjustment, position the screw
at +12 clicks from fully open.
Periodically clean the working area of the-
buffer as follows:
- Lower/remove the buffer, using a small
screwdriver, and blow compressed air by
means of the milling on the spring spacer.
- Always ensure that the progressive linkage
bolts and the upper and lower shock ab-
sorber fixing bolts are correctly tightened.
Note
For correct tightening, refer to the “Rear Su-
spension Linkage” paragraph on page 70.
B
RIDER’S WEIGHT (Kg) SPRING PRELOAD
peso > 80 + 10 giri
75 < peso < 80 + 5 giri
peso < 70 0
A
A
In the event of any abnormality in opera-
tion, please contact our authorised service
centres.
