Beta REV 50 User Manual

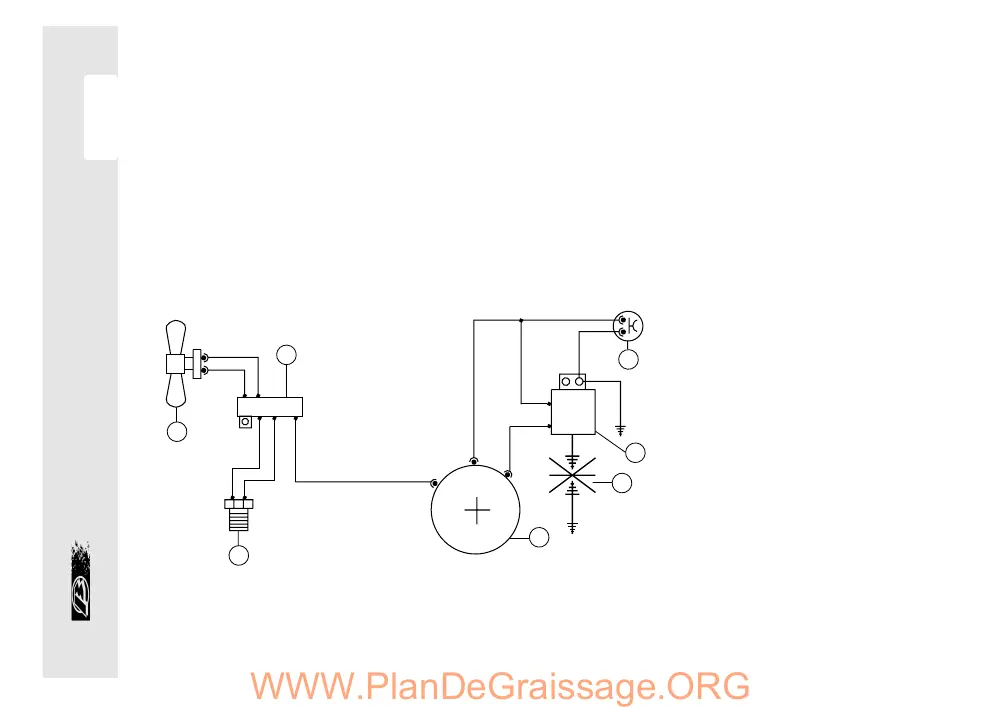

SCHEMA ELETTRICO
Legenda
1 Generatore
2 Bobina A.T.
3 Candela d’accensione
4 Pulsante arresto motore
5 Regolatore
6 Termostato
7 Elettroventola
ELECTRICAL DIAGRAM
Legend
1 Generator
2 High voltage coil
3 Spark plug
4 Engime stop push button
5 Regulator
6 Thermostat
7 Electric fan
10
1
CONOSCENZA DEL VEICOLO GENERAL INFORMATION
Ma .......................................Marrone/Brown
N ..............................................Nero/Black
R ................................................Rosso/Red
G ...........................................Giallo/Yellow
B ....................................................Blu/Blue
G
B
B
R
N
N
N
Ma
N
R
1
3
2
4
6
7
5
