MAINTENANCE AND CHECKS
MANUTENZIONE E CONTROLLI
48
3
RIMOZIONE DELLE PLASTICHE
Per effettuare agevolmente i con-
trolli e interventi in alcune zone del
veicolo, è indispensabile smontare
le parti della carrozzeria nel modo
seguente:
Smontaggio fiancate posteriori
Svitare le quattro viti A di fissaggio
(due per lato) e rimuovere le
fiancate posteriori. La vite superio-
re, oltre che bloccare la fiancata
posteriore, blocca la parte superio-
re del parafango.
Smontaggio fiancate anteriori
Le fiancate anteriori B sono collega-
te alle protezioni frontali C da dei
rivetti. Per lo smontaggio di queste
protezioni occorre svitare le sei viti D
laterali (tre per parte) e le quattro
viti F (due per parte) che fissano la
protezione anteriore al telaio.
A
D
F
B
C

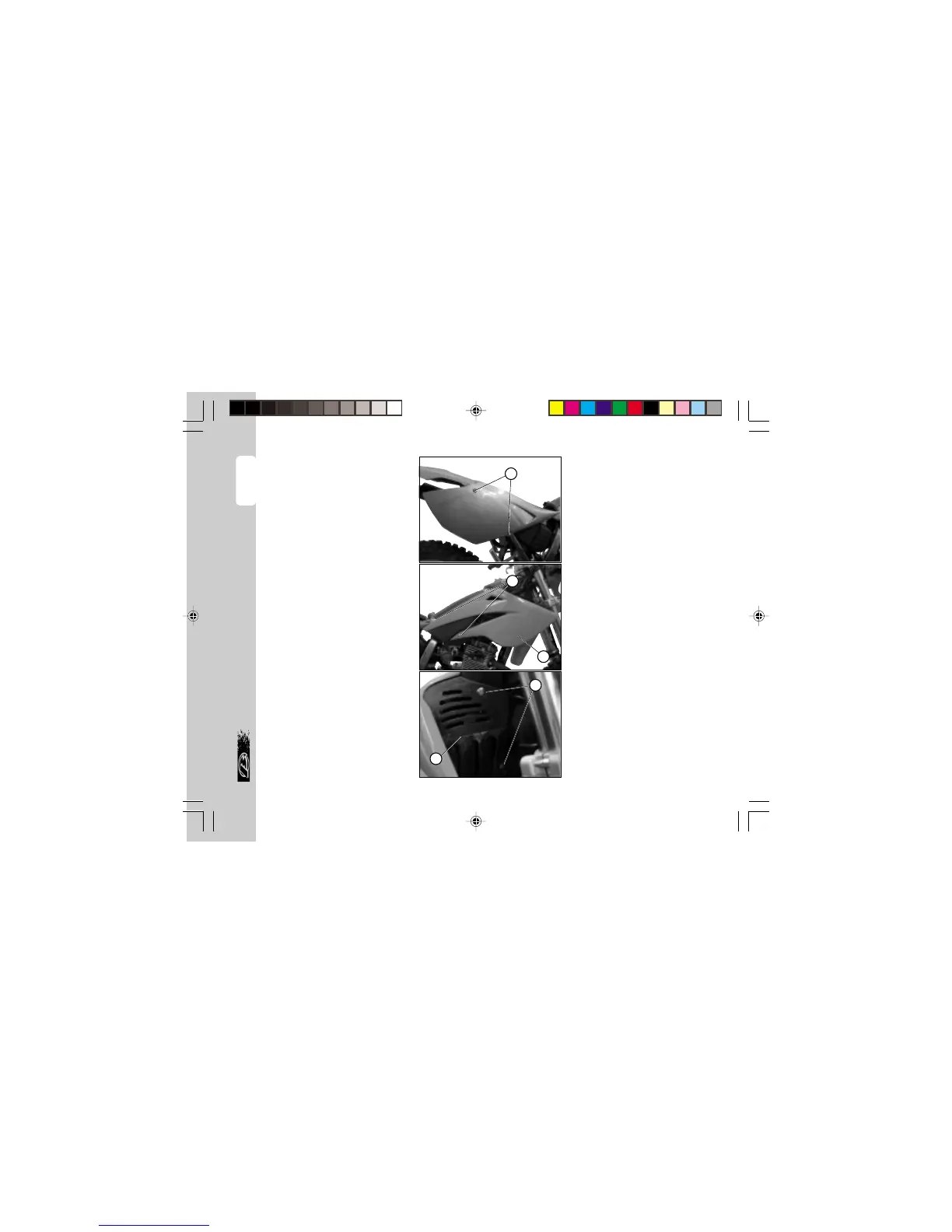

REMOVING THE PLASTICS
To make some areas of the vehicle
easier to check and service, it is first
necessary to remove parts of the
bodywork as described below.
Removing the rear side panels
Unscrew the four fixing screws A (two
on each side) and take off the rear
side panels. In addition to fastening
the rear side panel, the upper screw
also fixes the upper section of the
mudguard.
Removing the front side panels
Front side panels B are riveted to
front guards C. To remove the front
guards, unscrew the six side screws
D (three on each side) and the four
screws F (two on each side) fixing
the guards to the frame.
