3
CHECKS AND MAINTENANCE
44
GB

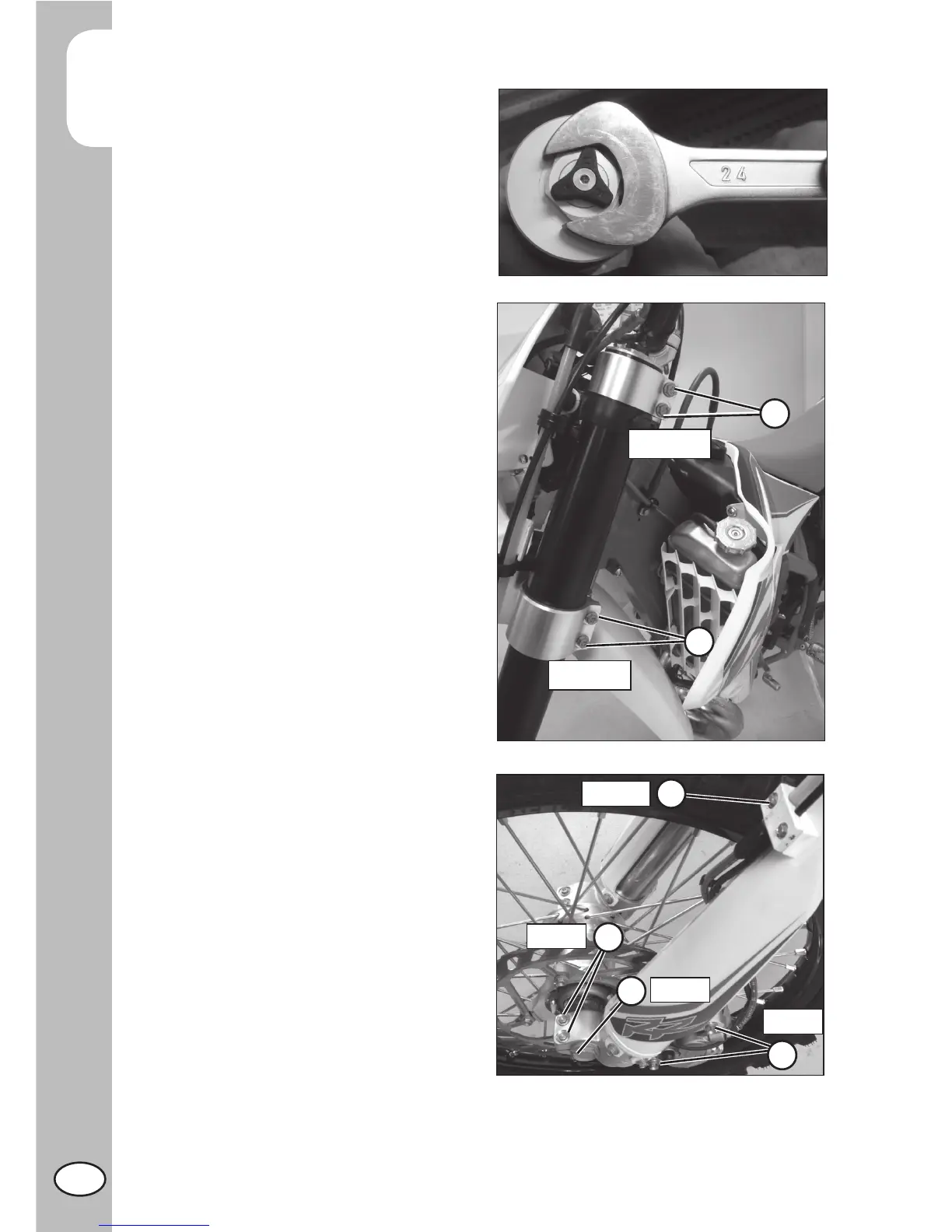

• Tighten the cap to the completely ex-
tended leg.
•Insert the legs into the plates. Once the
leg has been positioned at the desired
extension, tighten screws E at 17Nm
and F at 12Nm, after the screws have
been greased.
•Apply the wheel complete with spacers,
pin and cap C, which will be tightened to
50Nm. Tighten the screws D to 10Nm.
Apply the brake caliper and apply thread-
lock of average intensity onto screws B.
Tighten to 35Nm.
Apply the cable gland U-bolt and tighten
the screws A to 1.5 Nm.
17Nm
12Nm
C
A
B
D
1,5Nm
10Nm
50Nm
35Nm
F
E
