BFT ECOSOL User Manual

●

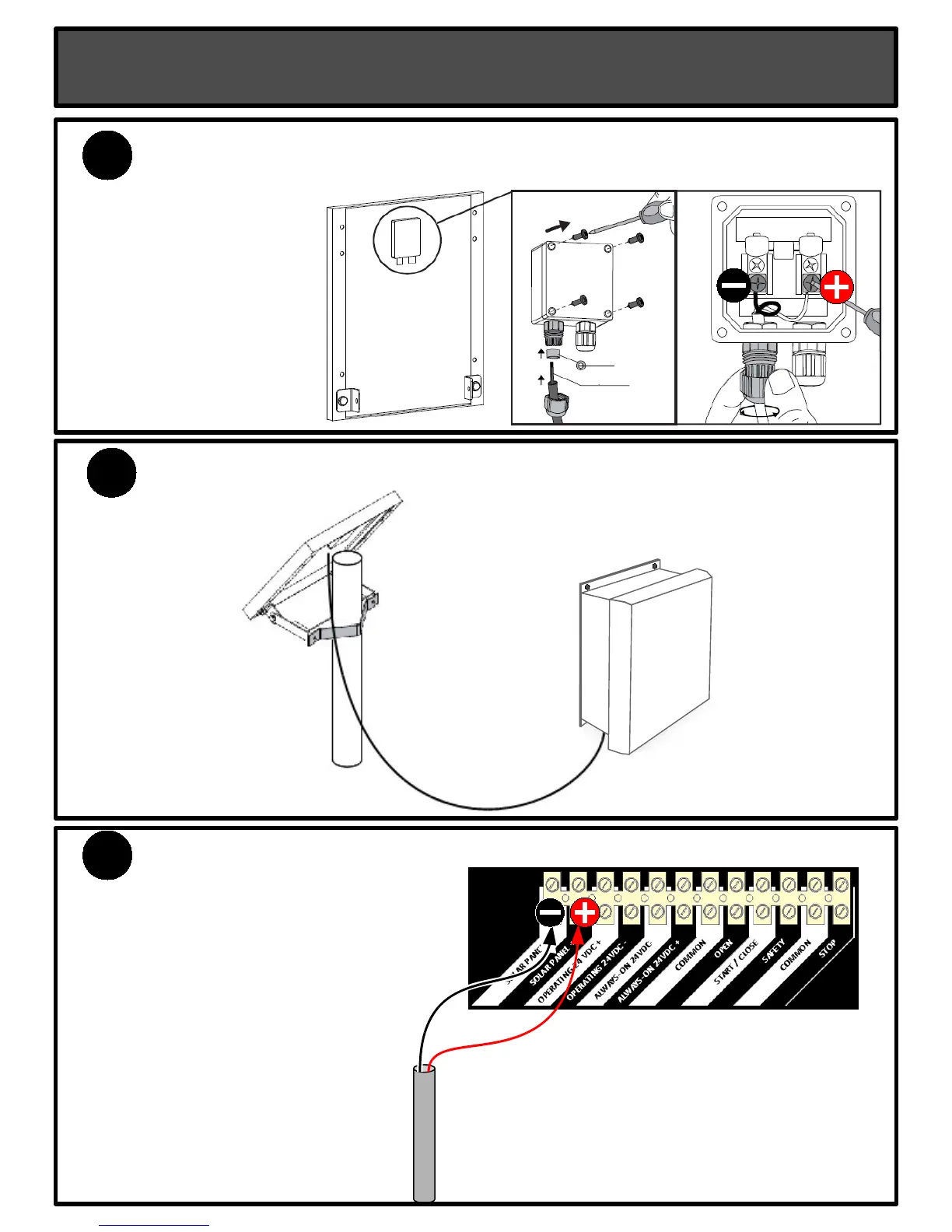

Remove the 4 screws that
hold the cover to the solar
panel terminal block.
●
Run the cable through (1) of
the connector fittings.
●
Connect the black wire to
the left (negative) terminal
and the red wire to the right
(positive) terminal.
Connect the wires from the solar
panel to the terminals labeled SOLAR
PANEL – and SOLAR PANEL +
FROM SOLAR PANEL
15 ft. max cable length
CONNECT CABLE TO SOLAR PANEL
RUN THE CABLE TO THE ECOSOL ENCLOSURE
CONNECT CABLE TO TERMINAL STRIP
1
2
3
USE 16 AWG OR BETTER, STRANDED WIRES
WIRING THE SOLAR PANEL14
