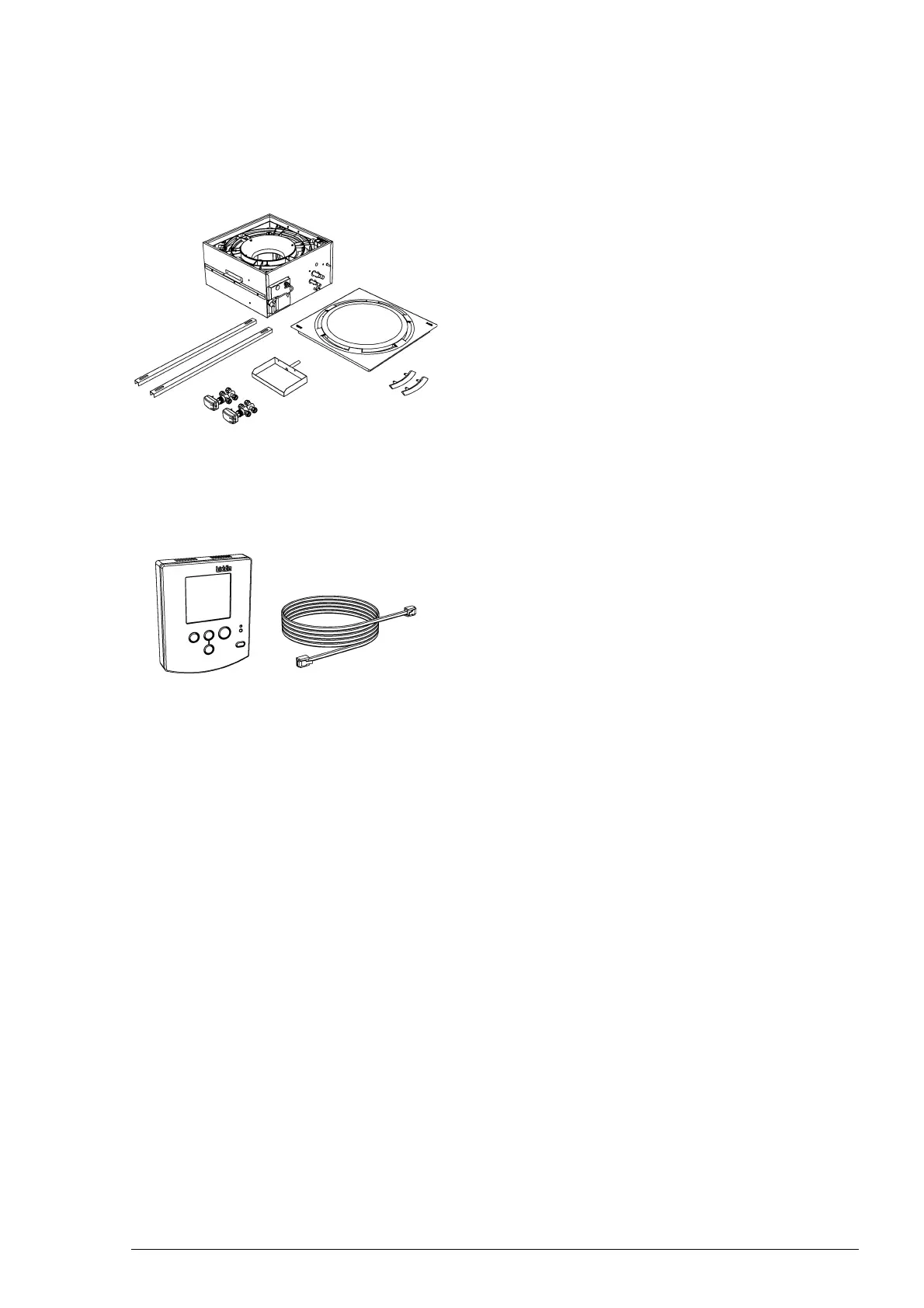

1.3.5 What’s in the box

The unit comes in a box, which contains the following compo-

nents:

• unit 1

•cover 2;

• 2 suspension profiles 3;

• 2 blind plates 4 with fixing screws to adjust the discharge

pattern;

• 1 or 2 valves 5 with servomotors (only for units with

modulating control);

• external drip tray 6 with fixing screws (only for cooling

units).

1.3.6 Components and accessories

1.3.7 Components

The following components are delivered separately but are

always required:

• controller 7;

• control cable 8, available in various lengths.

Accessories

The following accessories are available as options:

• low-limit sensor for change-over detection;

• saddle piece for additional discharge connection;

• ventilation module for coupling to exhaust fan.

1.3.8 Third-party deliverables

The following components are needed for the proper installa-

tion of the ventilation units:

• wall or roof grates;

• air valves;

• air valve servomotors;

• air filters;

•insulated ducts.

These parts are not delivered by Biddle and should be pur-

chased from other suppliers.
