General Warnings
Section 1: General Warnings
The actuator (see Figure 2) is made up of a weatherproof scotch yoke mechanism
transforming the linear movement of the pneumatic cylinder (on closing or opening) into
the rotary movement, which is necessary for operation. The angular stroke of the yoke is
adjustable between 82° and 98° by means of the external mechanical stops screwed into
the left wall of the mechanism housing and into the end ange of the pneumatic cylinder.
The cover of the scotch yoke mechanism is arranged for the assembly of the required
accessories (positioner, signalling limit switches, position transducer, etc.) by means of
proper matching units. The above mentioned accessories are operated by the actuator
drive sleeve. The housing of the scotch yoke mechanism has a ange with threaded holes
to x the actuator to the valve either directly or, if required, with the interposition of an
adaptor ange or a mounting bracket. The actuator yoke has a hole with keyways suitable
for the assembly of an insert bush the internal hole of which is machined (by Bif or at
Customer's care), according to the shape and dimensions of the valve stem. Bif can
supply different types of control system following Customer's requirements.
The expected lifetime of actuator is approximately 25 years.

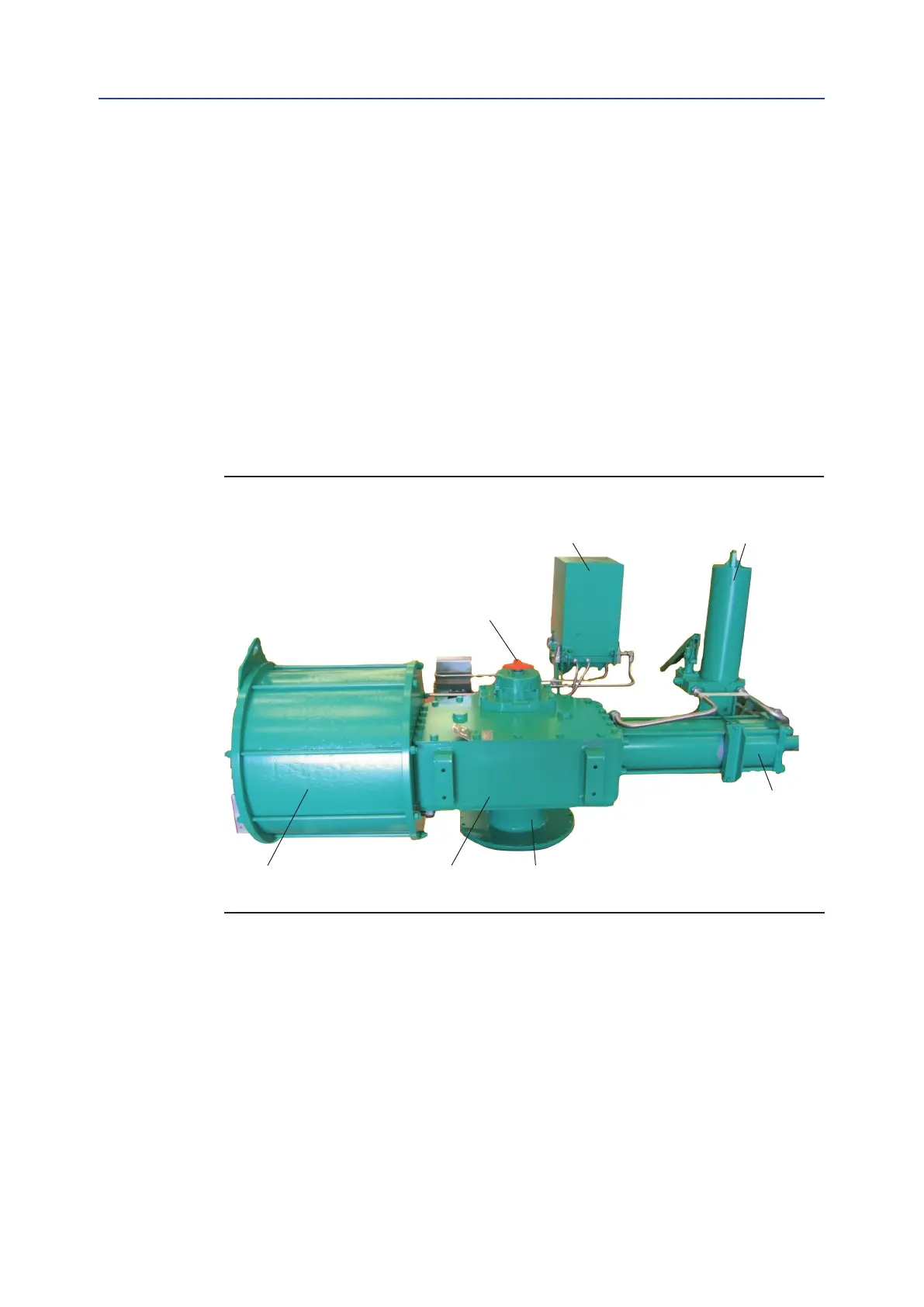

Figure 2 Identication of Actuator Parts
Manual handpump
MHP (optional)
Control system
(optional)
Valve
coupling
Pneumatic
cylinder
Valve position
indicator
Scotch yoke
mechanism
Hydraulic cylinder for ALGA-MHP
models or second pneumatic
cylinder for ALGA*2 double
cylinder models (optional)
1.4 Data Sheet
Supply uid Air, nitrogen or sweet gas, special version available for sour gas
Operating temperature Standard: from –30 °C to +100 °C
Optional: from –60 °C to +200 °C
Supply pressure Please refer to technical document: “actuator data-sheet”
Output torque Up to 750000 Nm (higher value with special version)
