BIG TREE TECH Octopus MAX EZ User Manual

Shenzhen Big Tree Technology Co., Ltd.
BIGTREETECH
10 / 35

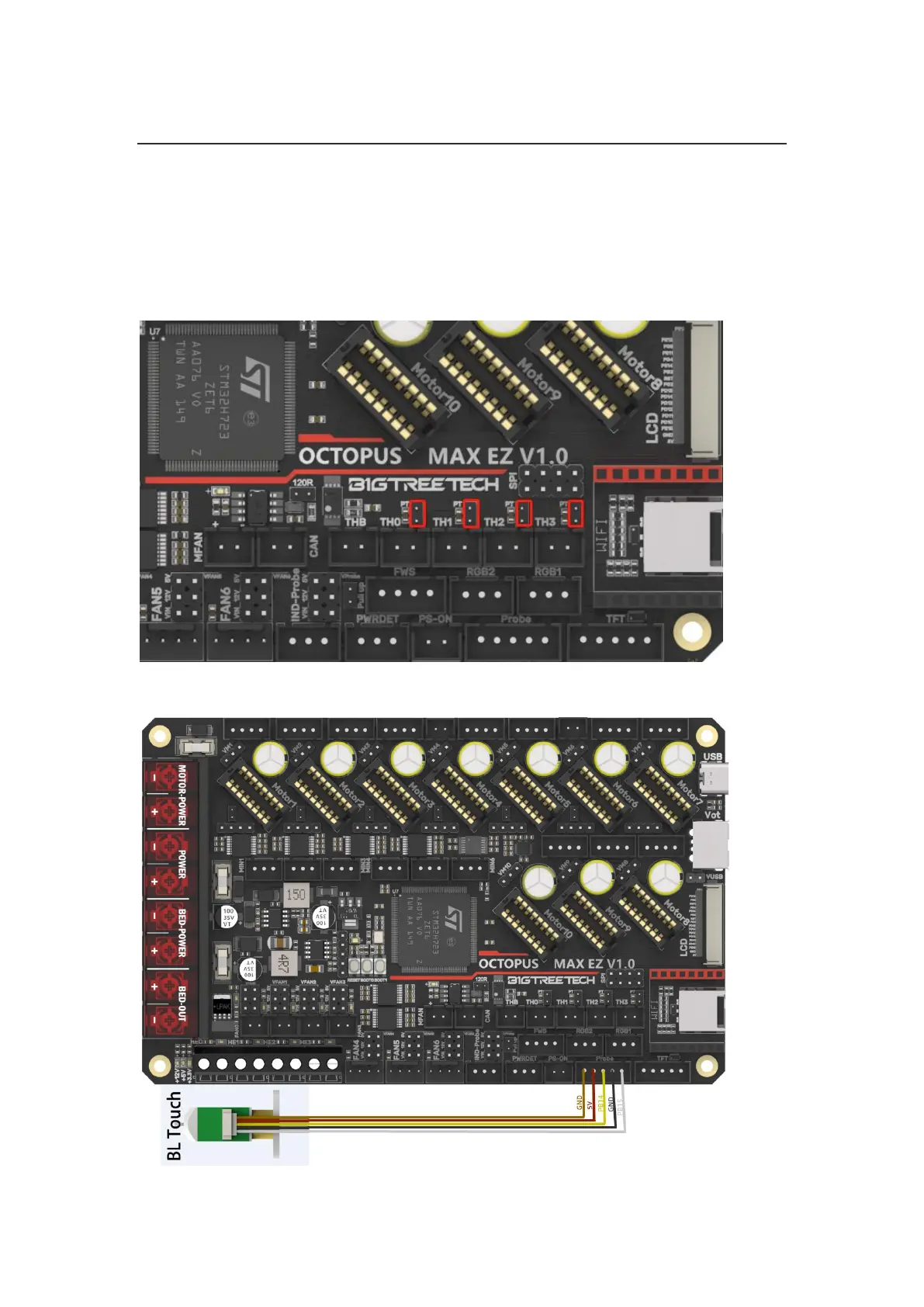

100K NTC or PT1000 Setting
When using 100K NTC, no jumpers need to be connected, the pull-up resistance of TH0-
TH3 is 4.7K 0.1%. When using PT1000, the pins indicated in the picture below need to be
connected via jumpers, parallel connection of 4.12K 0.1% resistors, the pull-up resistance
of TH0-TH1 is 2.2K. (Note: this method has a much lower accuracy than the MAX31865
in reading temperature.)
BLTouch Wiring
