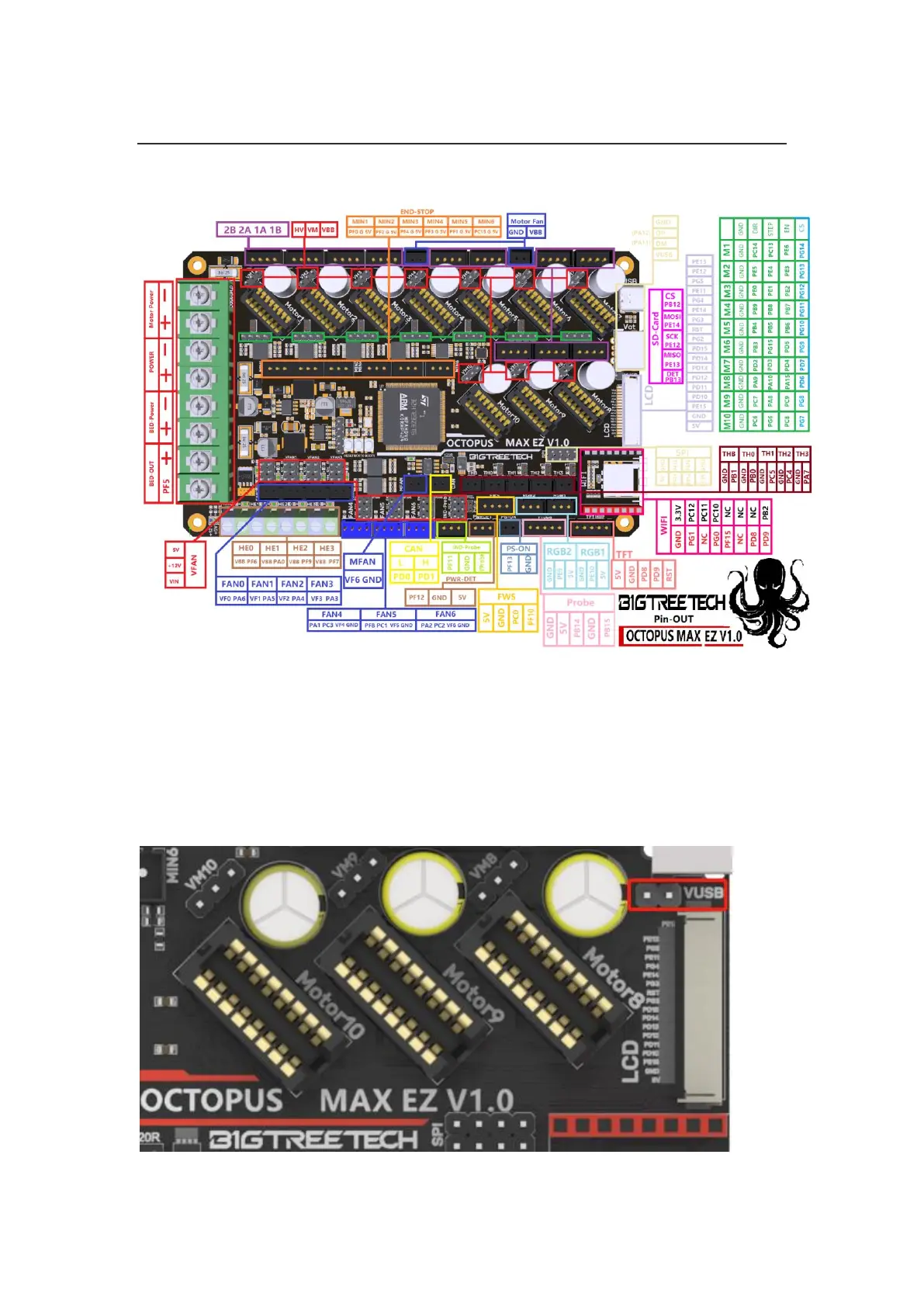

Pinout Diagram

Connection Description

USB Power Supply

After the Octopus MAX EZ has been powered, the Red light D32 on the left side of the

MCU will light up, indicating power on. When using only USB to power the board or to

supply power via USB, please insert the jumper cap onto the VUSB.
