Side marking lights

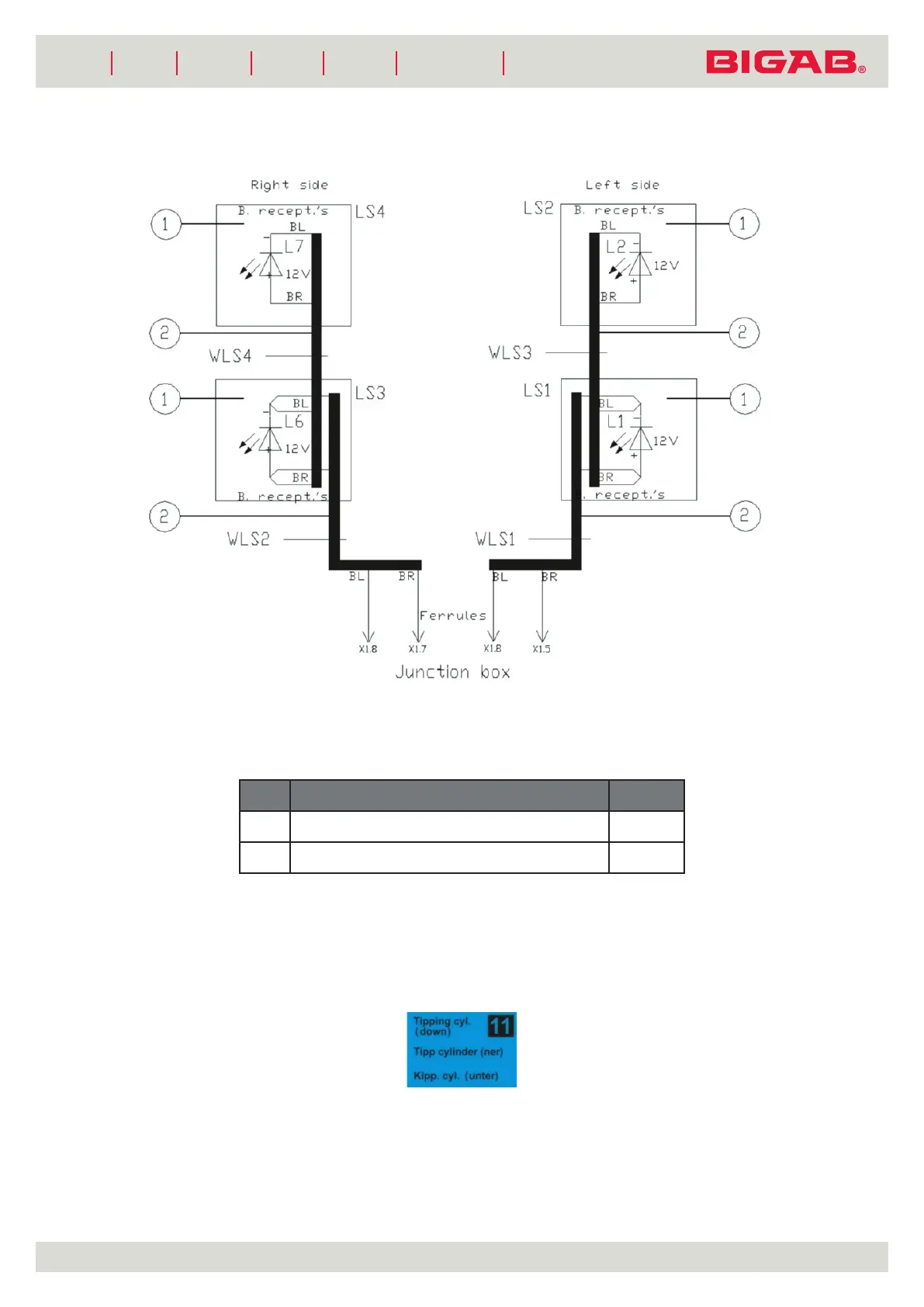

Electrical scheme side for the marking lights
Table 10. Electrical scheme side for the marking lights
Pos
Description Qty.
1
Side marking light 4
2
PVC cable 15 m
Hydraulic system
The trailer is equipped with a hydraulic system for operating the functions. All of the hydraulic hoses of
the trailer are marked with coloured labels (see gure below).
Hose label colors:
• Red - oil from pump.
• Blue - oil to tank.
• Yellow - Brake
