Tipping/rolling BIGAB 7-10 – 14-17

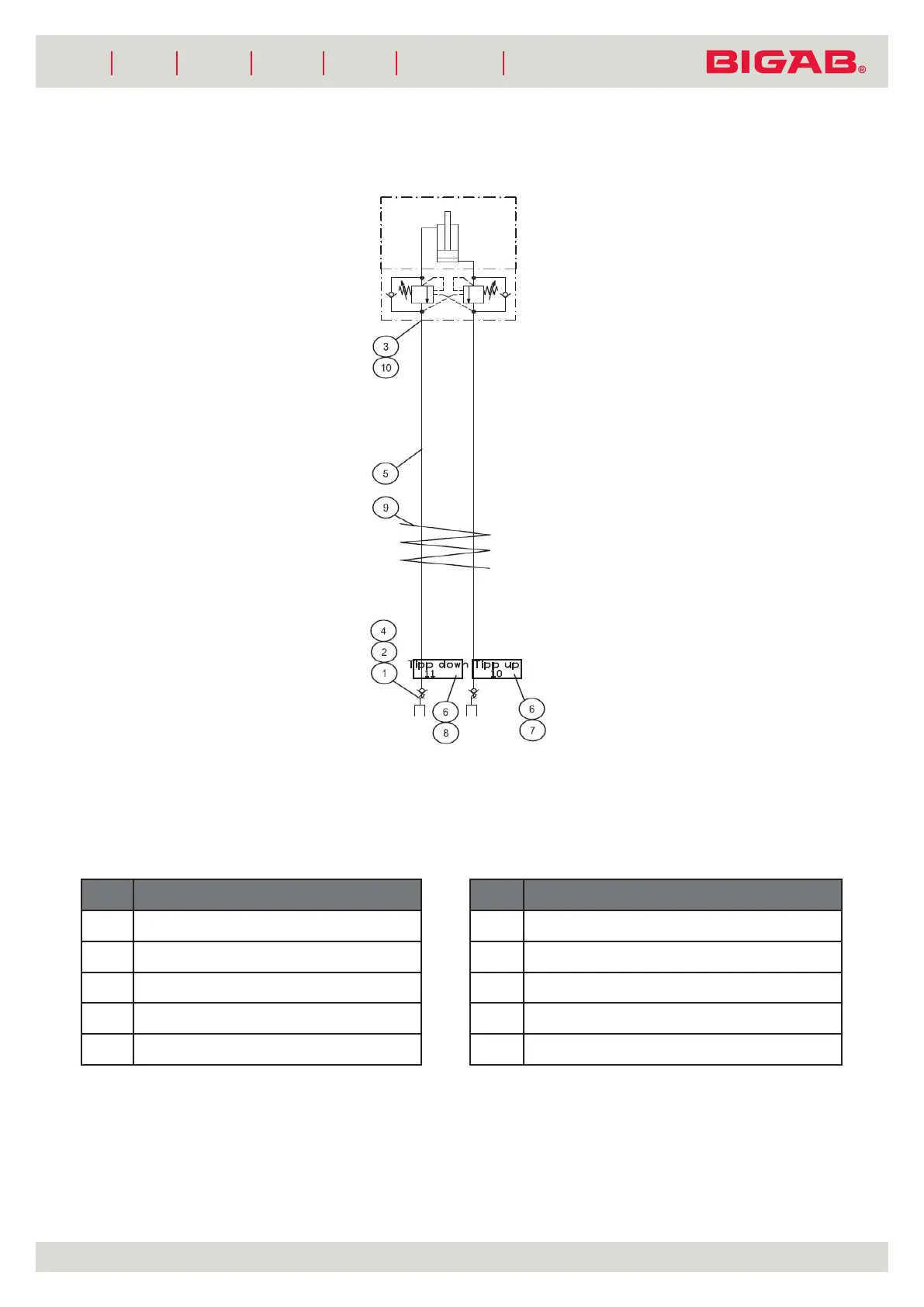

Hydraulic scheme BIGAB 7-10 – 14-17
Table 12.Hydraulic scheme tipping/rolling BIGAB 7-10 - 14-17
Pos Description Pos Description
1
Rubber seal
6
Heat shrink tube
2
Bayonet coupling
7
Stricker
3
Straight nipple
8
Stricker
4
Dust cover
9
Spiro pipe
5
H-hose
10
Rubber seal
