12’–24’ BASIC 6
®
WWW.BIGASSFANS.COM ©2012 DELTA T CORP. ALL RIGHTS RESERVED
16

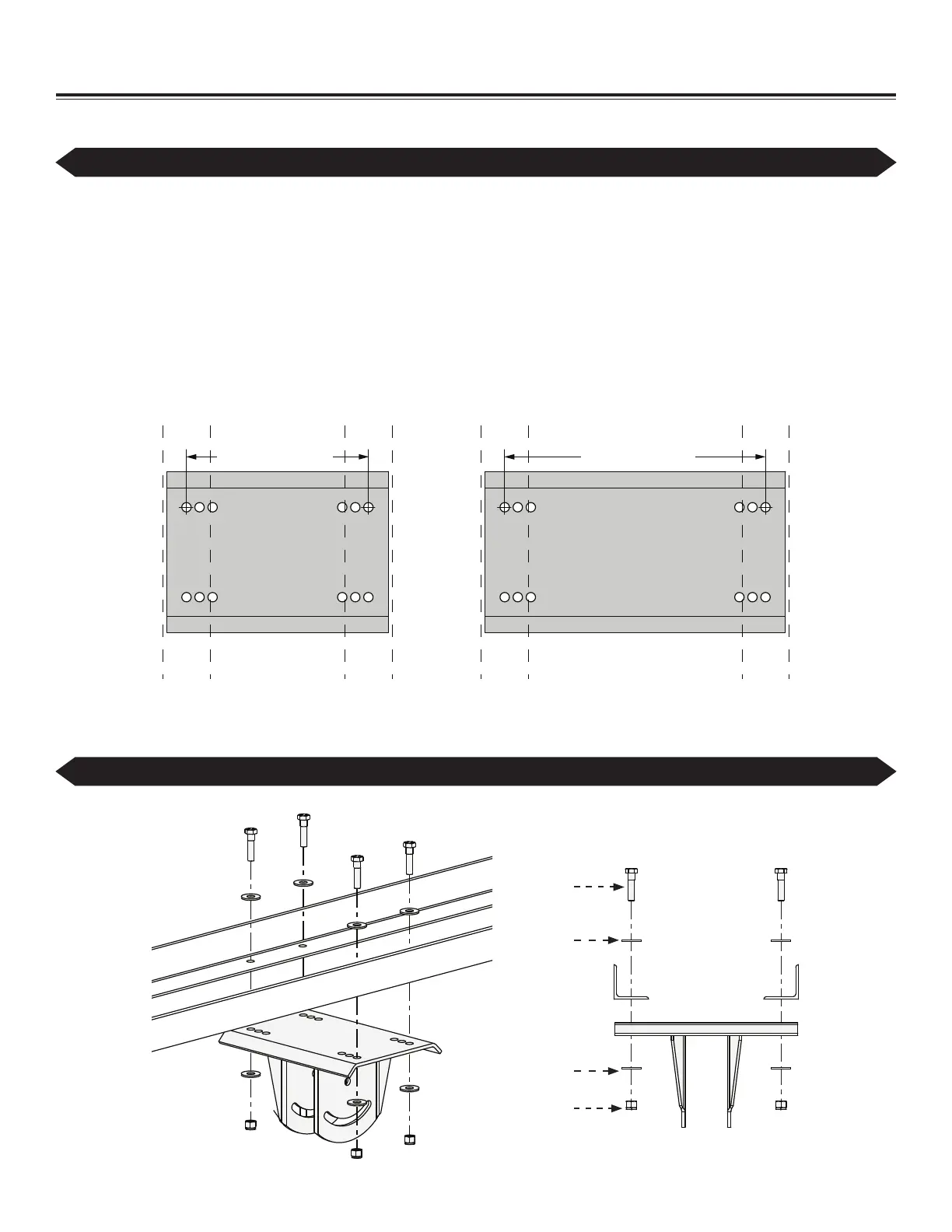

5a. Attach upper yoke (to angle irons)
Secure the upper yoke directly to the angle irons with the Upper Yoke Hardware as shown. The angle irons should be aligned with the
outermost holes of the upper yoke. Consult the diagrams below for distances between the angle irons.
Tighten the bolts to 40 ft·lb (54.2 N·m) using a torque wrench and 3/4” socket. After attaching the upper yoke to the angle irons, tighten
all the bolts securing the angle irons to the roof structure to 40 ft·lb (54.2 N·m).
Proceed to “Hanging the Fan” (page 18).
Upper Yoke Hardware (BAF-Supplied):
a. (4) 1/2”-13 x 2” GR 8 Bolt
b. (8) 1/2’’ Flat Washer
c. (4) 1/2-13 Nylock Nut
Mounting Structure: Bar Joists (cont.)
Note: Dashed lines represent angle irons.
Side View
a
b
c
b
10-7/8” (27.6 cm)
Small Upper Yoke
13-3/4’’ (34.9 cm) x
9-5/8” (24.4 cm)
15-5/8” (39.7 cm)
Large Upper Yoke
18-1/2’’(46.9 cm) x
9-5/8”(24.4 cm)
If the fan will be directly mounted to the angle irons, skip this step and proceed to step 5b.
The angle irons should be aligned with the outermost holes on the upper yoke. Do not use beam clips on angle irons!
