Electrical Installation (cont.)

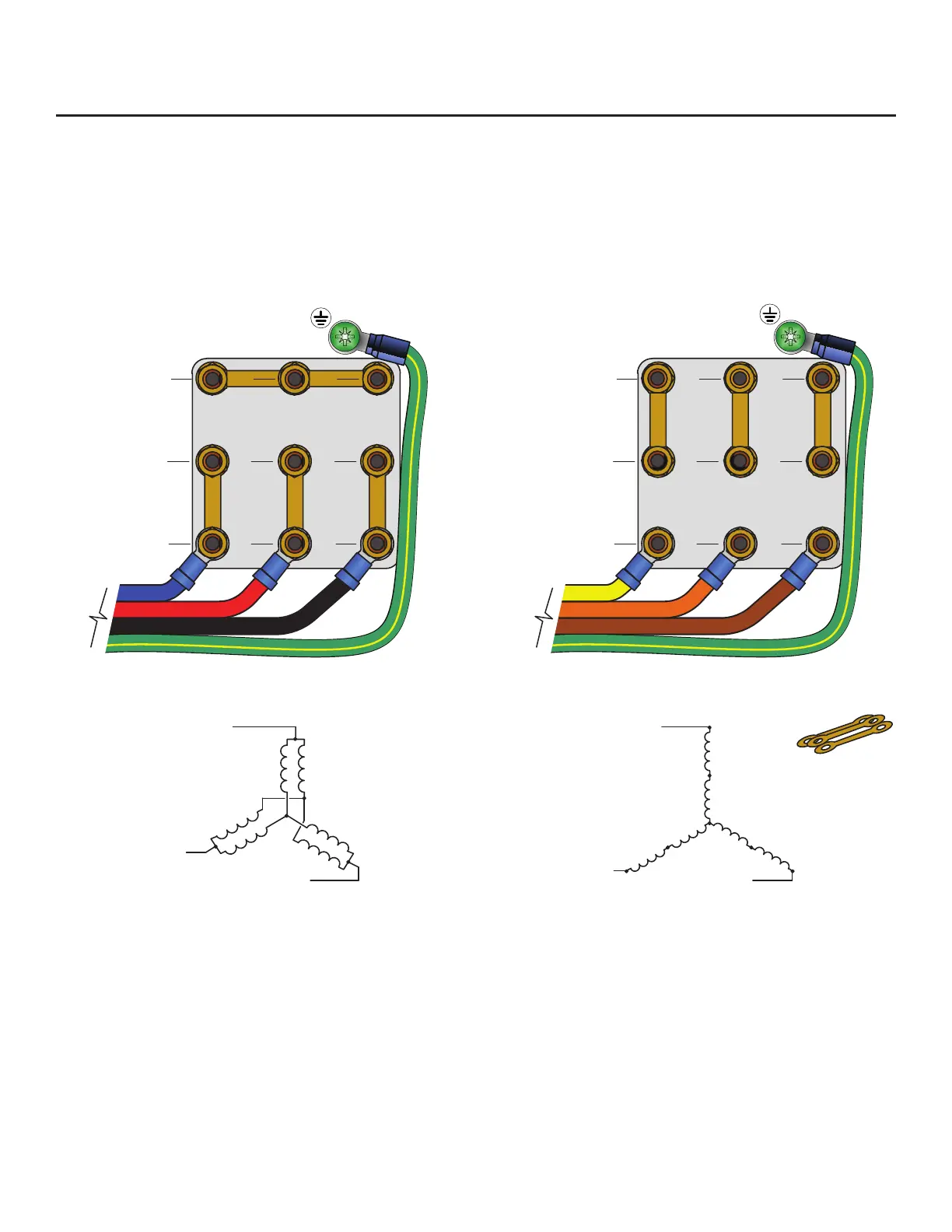

Wiring the motor: 9-lead, dual voltage, wye motor congurations
The motor wiring congurations shown below are applicable to 9-lead, dual voltage wye wound motors rated for 230/460 VAC and
330/600 VAC. Consult the motor nameplate and/or wiring placard for verication of required wiring connections. Motors with terminal
blocks require ring terminals and a 7 mm nut driver for termination. The diagrams below include L2 and L3 swap to yield proper motor
rotation. Note: Swapping leads to reverse rotation is done only on the output side of the drive.
U1
T1
V1
T2
W1
T3
U5
T7
V5
T8
W5
T9
U2
T4
V2
T5
W2
T6
U1
T1
V1
T2
W1
T3
U5
T7
V5
T8
W5
T9
U2
T4
V2
T5
W2
T6
Low Voltage
200–240 VAC, 50–60 Hz
330–350 VAC, 50–60 Hz
High Voltage
400–480 VAC, 50–60 Hz
575–600 VAC, 50–60 Hz
Jumper bars are
provided with the motor
BLUE
RED
BLACK
YELLOW
ORANGE
BROWN
GREEN W/ YELLOW
GREEN W/ YELLOW
VAC from VFD
VAC from VFD
High Voltage
Low Voltage
