Bigassfans Basic 6 - Wiring: 100-125 V;200-250 V single-phase fan controllers

12’–24’ BASIC 6
®
WWW.BIGASSFANS.COM ©2012 DELTA T CORP. ALL RIGHTS RESERVED
30
Wiring: 100–125V/200–250V single-phase fan controllers
WARNING: Wait three minutes after disconnecting before servicing!
WARNING: Improper installation can cause electric shock or damage to the motor and controller. A qualied electrician
should perform the installation.

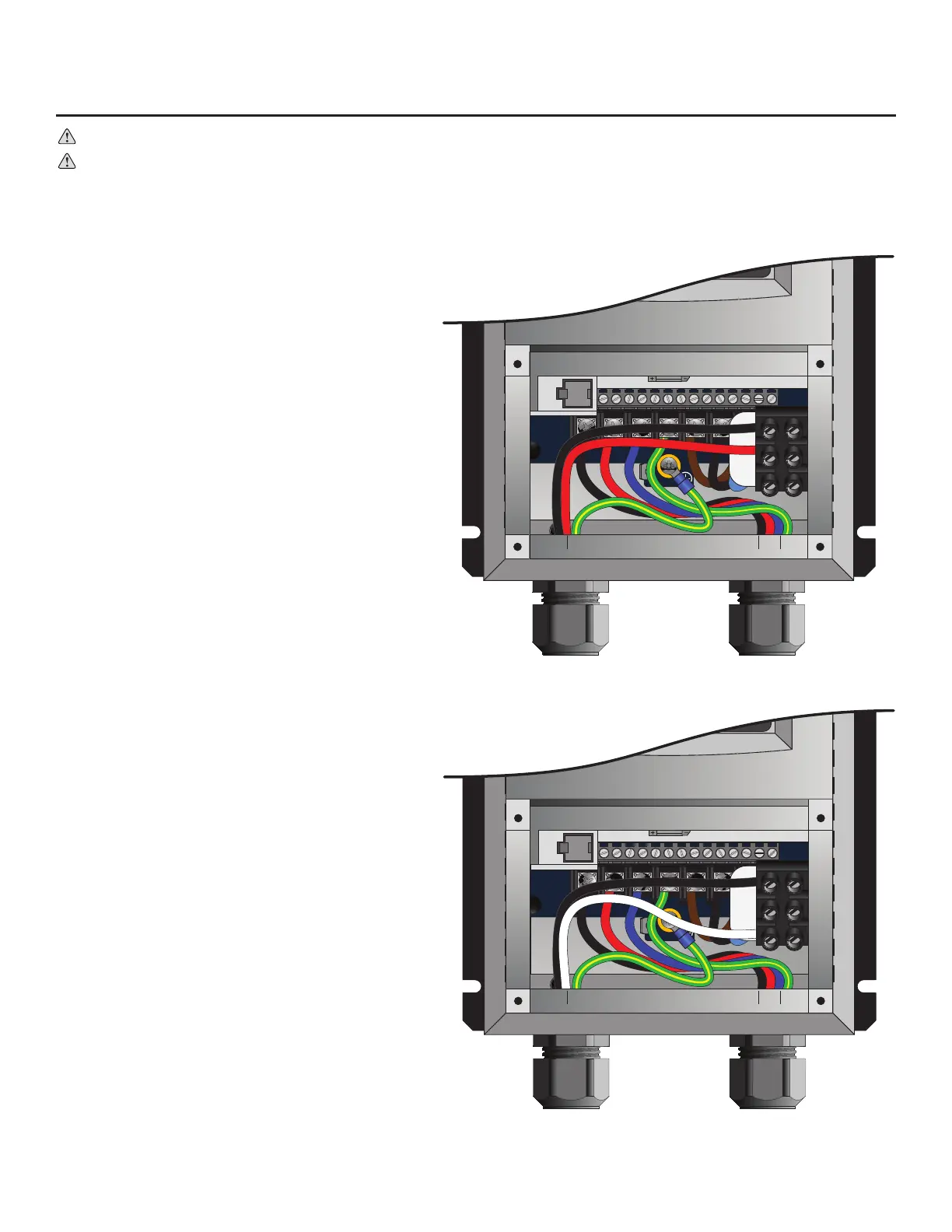

The diagram below shows wiring options for a 100–125 V/200–250 V, 1 Φ fan controller. See page 2 for detailed power requirements.
Electrical Installation (cont.)
Wiring for 200–250 V, 1 Φ, 50/60 Hz fan controllers
The neutral terminal is not used when wiring the fan
controller for 200–250 V, 1 Φ. A disconnect and EMI
filter are included with this fan controller.
Note: This fan controller does not contain fusing!
Power must be supplied to this controller via
a dedicated circuit breaker or properly fused
disconnect!
AC Input Wiring
2W plus GND
Motor Output Wiring
3W plus GND
AC Input Wiring
2W plus GND
Motor Output Wiring
3W plus GND
Optional wiring for 100–125 V, 1 Φ, 50/60 Hz fan controllers
The L2 terminal is not used when wiring the fan
controller for 100–125 V, 1 Φ. A disconnect is included
with this fan controller.
Note: This fan controller does not contain fusing!
Power must be supplied to this controller via
a dedicated circuit breaker or properly fused
disconnect!
U/T1 V/T2 W/T3
PE
L1 L2 L3
N
1 2 5 6 13A13B13C 14 30 16 1725 4 11
1 2 5 6 13A13B13C 14 30 16 1725 4 11
L1
L2
U/T1 V/T2 W/T3
PE
L1 L2 L3
N
1 2 5 6 13A13B13C 14 30 16 1725 4 11
1 2 5 6 13A13B13C 14 30 16 1725 4 11
L1
L2
BLK
BLK
BLK
BLK
RED
WHT
RED
RED
GRN/
YEL
GRN/
YEL
GRN/
YEL
GRN/
YEL
BLU
BLU
