Installing the Electronic Programming Module (EPM)
WARNING: Install the EPM prior to applying power to the fan controller!
The EPM contains all programming information specic to fan operation. It must be installed prior to applying power to the fan controller.
This module is provided as part of the fan’s accessory kit.

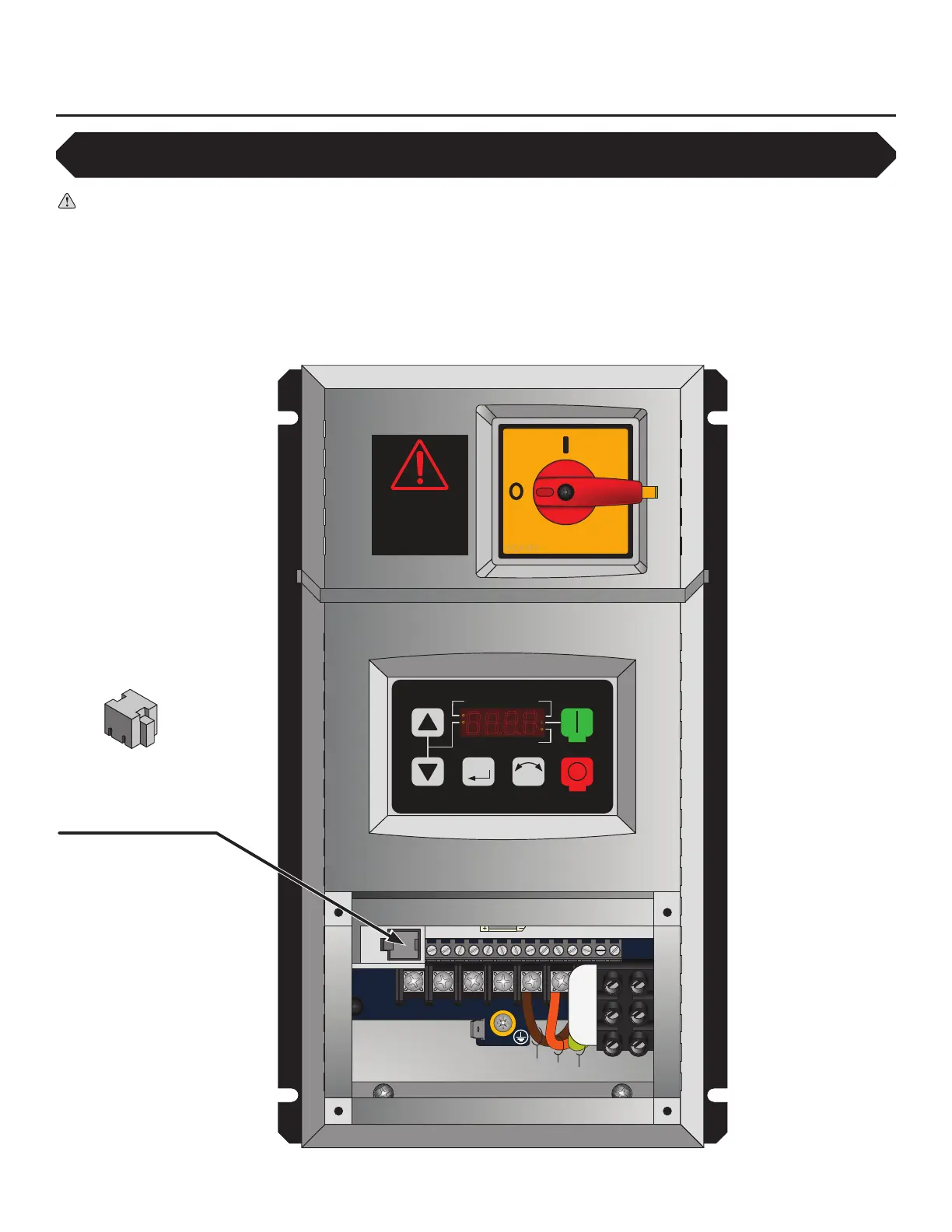

To install the EPM, disconnect the fan from power (refer to the position of the disconnect switch below). Insert the EPM in the location
shown below. Note: The EPM module can only be inserted one way. Do not force it!
Electrical Installation (cont.)
U/T1 V/T2 W/T3
PE
L1 L2 L3
L 1
L 2
L 3
1 2 5 6 13A13B13C 14 30 16 1725 4 11
1 2 5 6 13A13B13C 14 30 16 1725 4 11
SCA M E
SCA M E
M
R F
RUN
STOP
AUTO FWD
REV
WARNING
DO NOT USE THIS
DISCONNECT TO
START AND STOP THE
FAN. PERMANENT
DAMAGE WILL
RESULT!
Electronic
Programming
Module
BRN
ORG
YEL
If hanging multiple fans, ensure to install the exact EPM included in each fan’s packaging. EPMs are not
interchangeable!
