BIGTREETECH MINI12864 User Manual

BIGTREETECH MINI12864 V1.0 SHENZHEN BIGTREE TECHNOLOGY CO., LTD
1 Product introduction
BIGTREETECH MINI12864 V1.0 is a medium-sized 3D printing display
with RGB backlight which is launched by Shenzhen BIGTREETECH
Technology Co., Ltd. 3D printing Team.
1. Features：
1) Mini12864 includes EXP1, EXP2, where EXP1 and EXP2 are LCD screen
interfaces for ordinary motherboards.
2) It features multicolored RGB backlight, making it look cooler.
2. Specification：
Appearance size: 104.99mm * 47mm
Mounting size: More details see mini 12864 size
Power input: DC 5V
SD card logic voltage: 3.3V and 5V (e.g. Higher compatibility for the
motherboard with MEGA2560 main control chip)
2 Interfaces on the screen

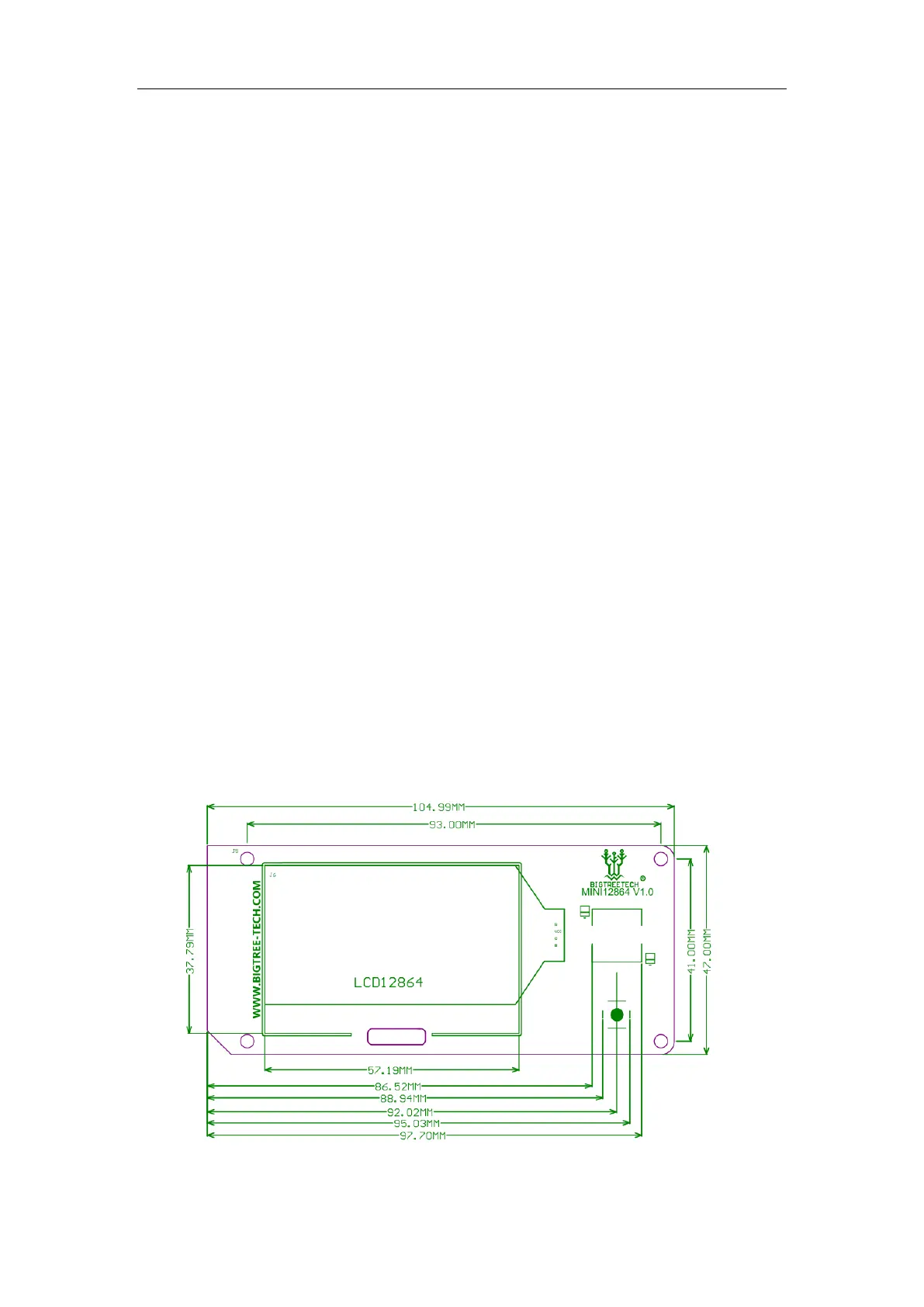

1. Dimensions

BIGTREETECH MINI12864 Specifications
