BIGTREETECH MINI12864 V1.0 SHENZHEN BIGTREE TECHNOLOGY CO., LTD
2. Wiring diagram

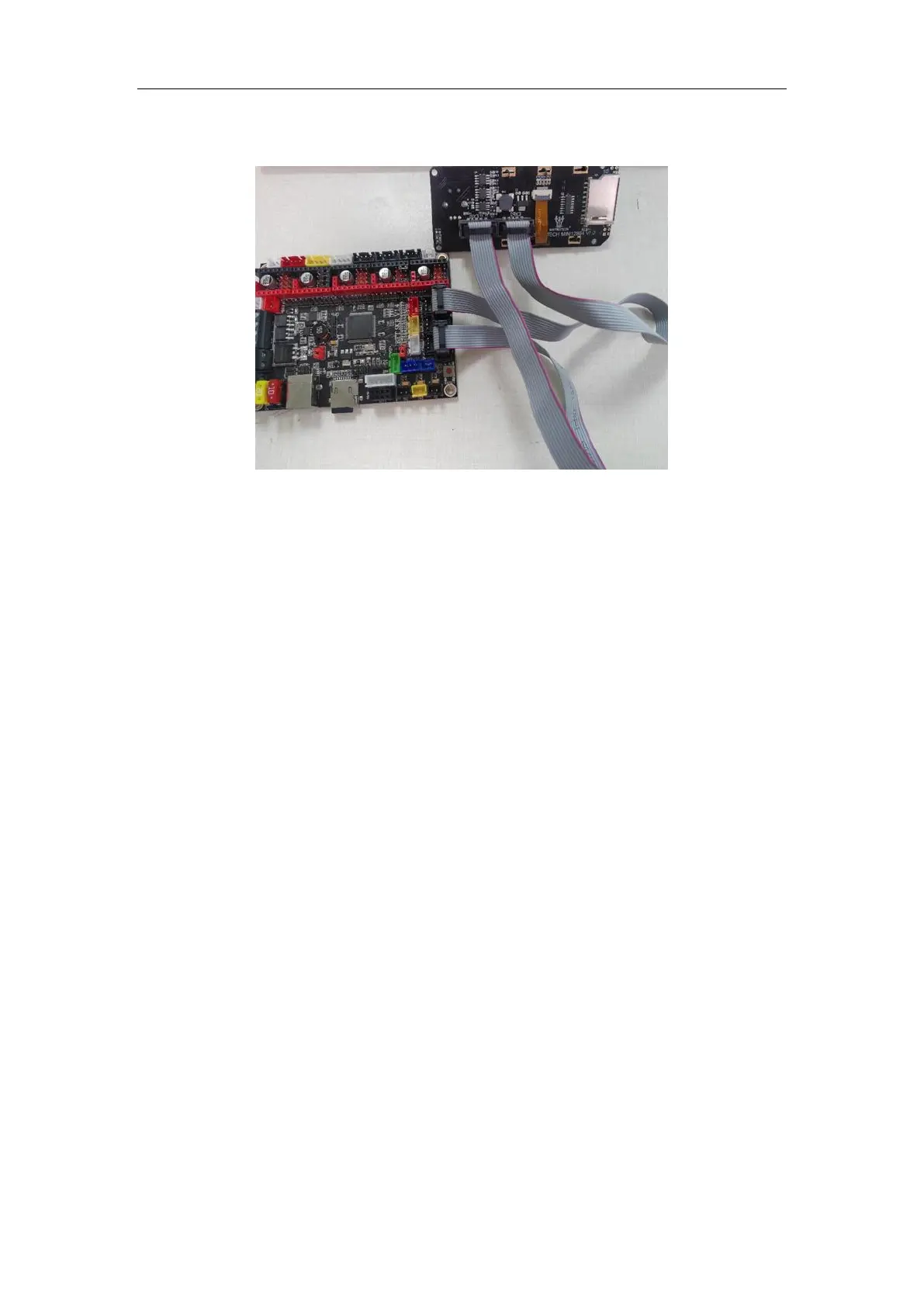

The above figure shows the connection between BTT SKR v1.4 and BIGTREETECH
MINI 12864 v1.0
Notes:
1. Same as LCD 12864, it connects with EXP1 and EXP 2 of the
motherboard.
2. The backlight can be set with its interface.
3 Firmware Instructions
The screen will be shipped with a test firmware,which can be used
directly, or upgraded according to the firmware updates at our Github
website.
1. How to obtain firmware
Ask our service person or technicians to get it；
Login to our Github website to download: https://github.com/bigtreetech
