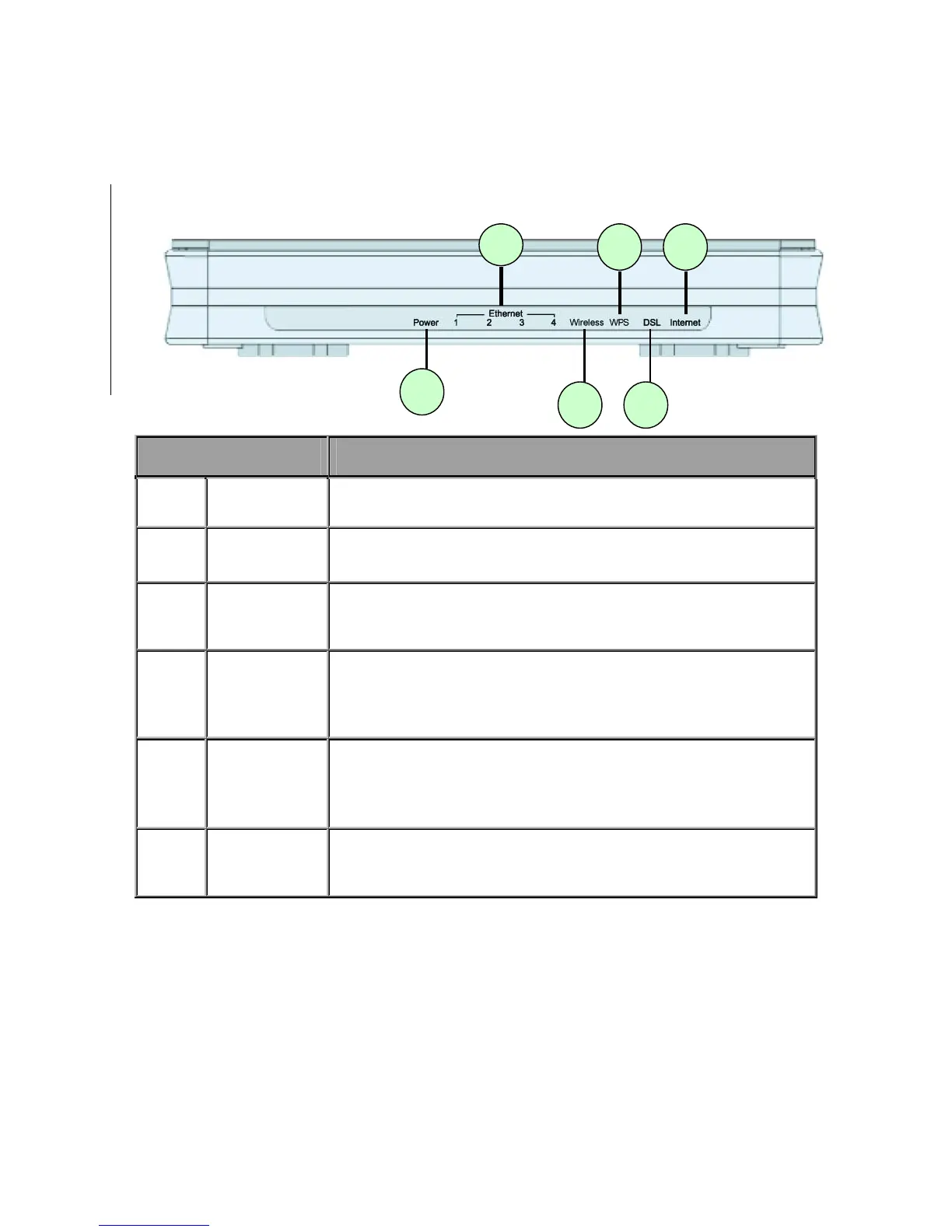

2.3 The Front LEDs
LED Meaning
1 Internet
Lit red when WAN port fails to get IP address.
Lit green when WAN port gets IP address successfully.
2 DSL
Lit when successfully connected to an ADSL DSLAM
(“linesync”).
3.
WPS (Only
available for
7300N)
Blinking when WPS is in progress.
4
Wireless
(Only
available for
7300N)
Lit green when the wireless connection is established.
Flashes when sending/receiving data.
5
Ethernet
Port 1-4
Lit when connected to an Ethernet device.
Green for 100Mbps; Orange for 10Mbps.
Blinking when data is Transmitted / Received.
6 Power
When the power is plugged in, it will lit Red and when the
system is ready, it will lit Green. Whilst the system is
rebooting or firmware upgrading, the LED light flashes.
1 3
5
6
4 2
