49

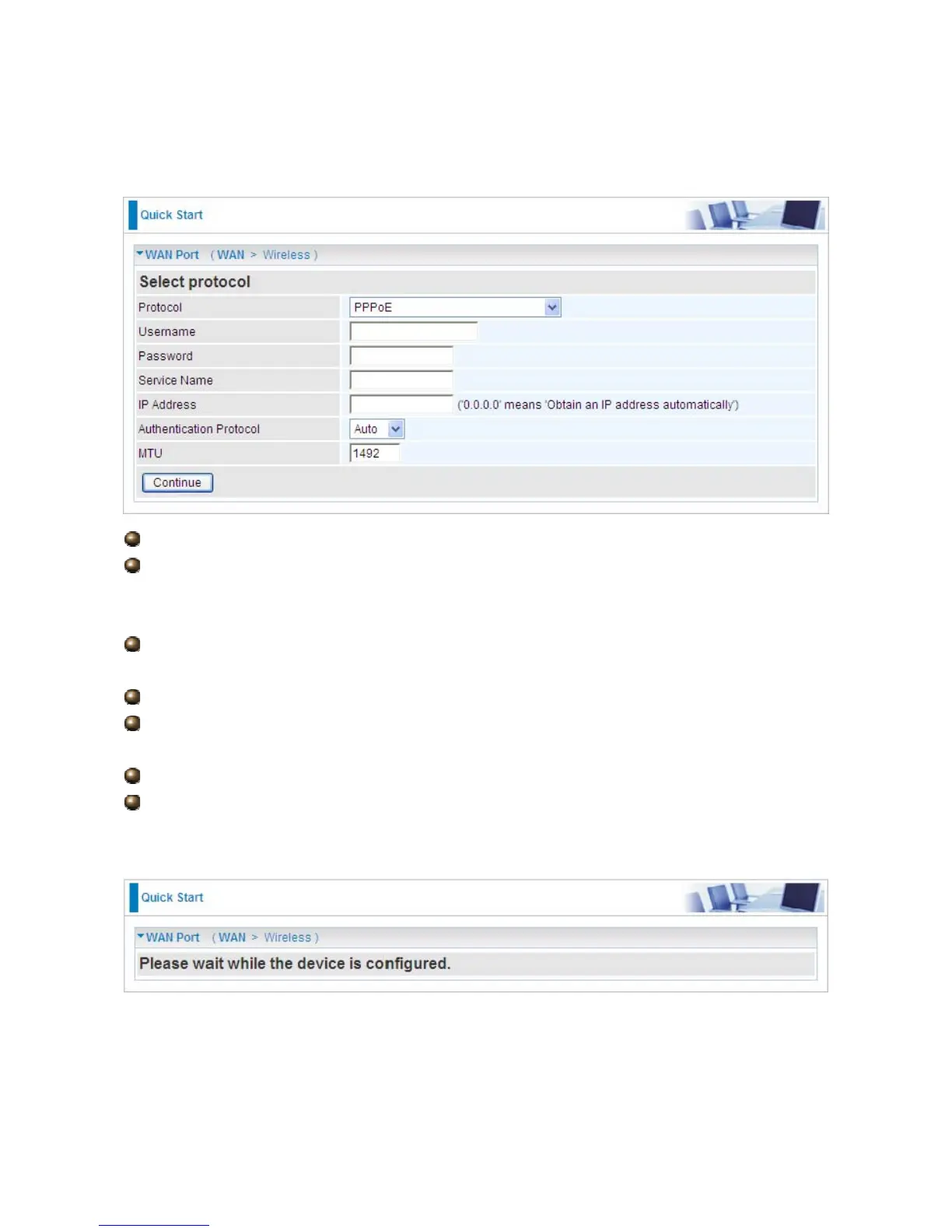

PPPoE
PPPoE (PPP over Ethernet) provides access control in a manner similar to dial-up services
using PPP.
Protocol: The current ATM protocol in the device
Username: Enter the username provided by your ISP. You can input up to 128
alphanumeric characters (case sensitive). This is in the format of “username@ispname”
instead of simply “username”.
Password: Enter the password provided by your ISP. You can input up to 128
alphanumeric characters (case sensitive).
Service Name: Enter a name for this connection.
IP Address: Your WAN IP address. Leave this at 0.0.0.0 to automatically obtain an IP
address from your ISP.
Auth. Protocol: Default is Auto. Your ISP advises on using Chap or Pap.
MTU: Maximum Transmission Unit. The size of the largest datagram (excluding
media-specific headers) an IP attempts to send through the interface.
Click on the Continue button and wait for your connection to be connected.
If connection is successful the following image will be shown.
