2.1 Chamber overview

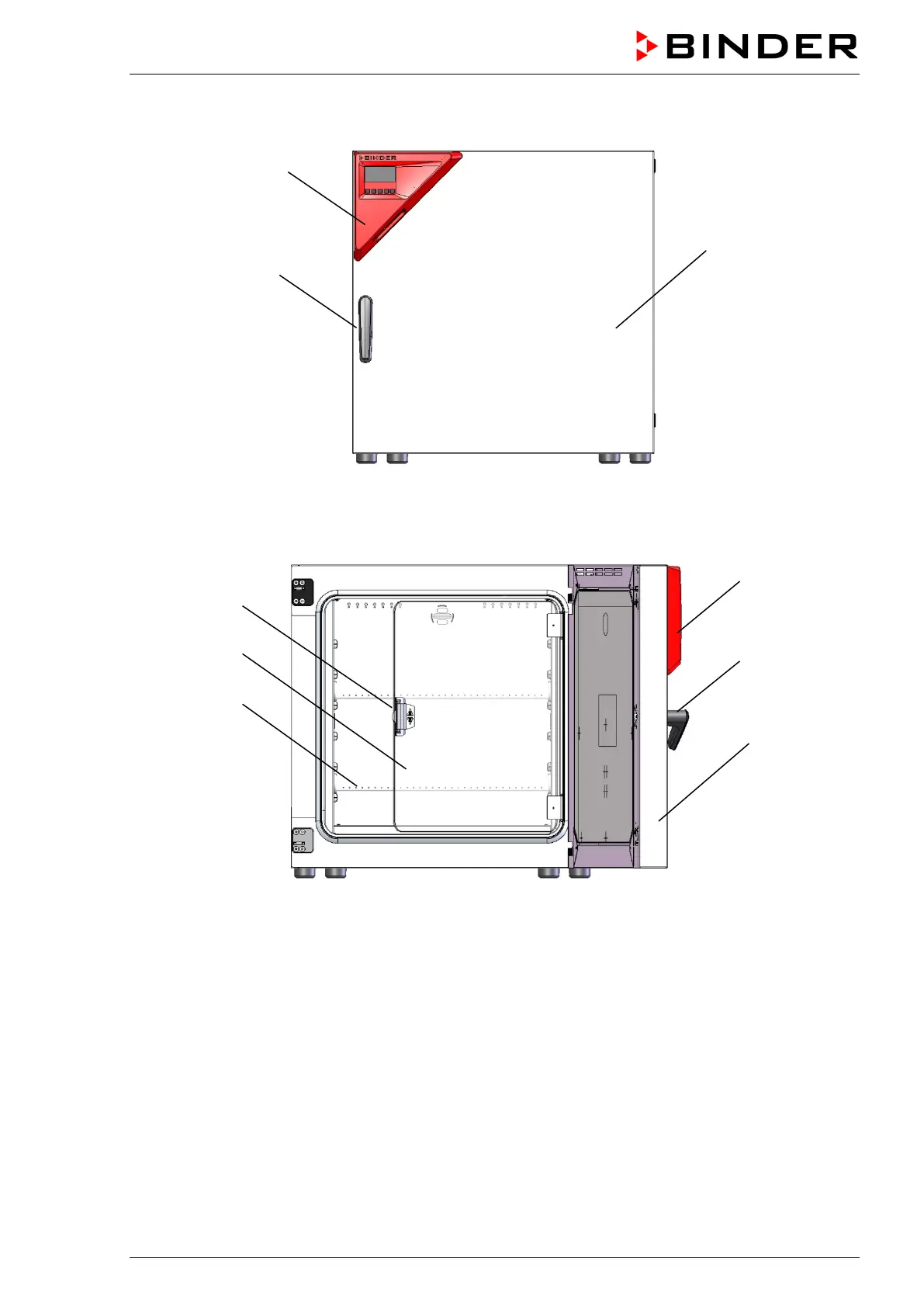

Figure 4: Overview, closed chamber (chamber with single door)
Figure 5: Overview, open chamber with glass door (chamber with single door) (BD, BF)
(1) Triangular instrument panel with controller R4 and USB interface
(2) Door handle
(3) Outer door
(4) Glass door handle (BD and BF)
(5) Glass door (BD and BF)
(6) Rack
