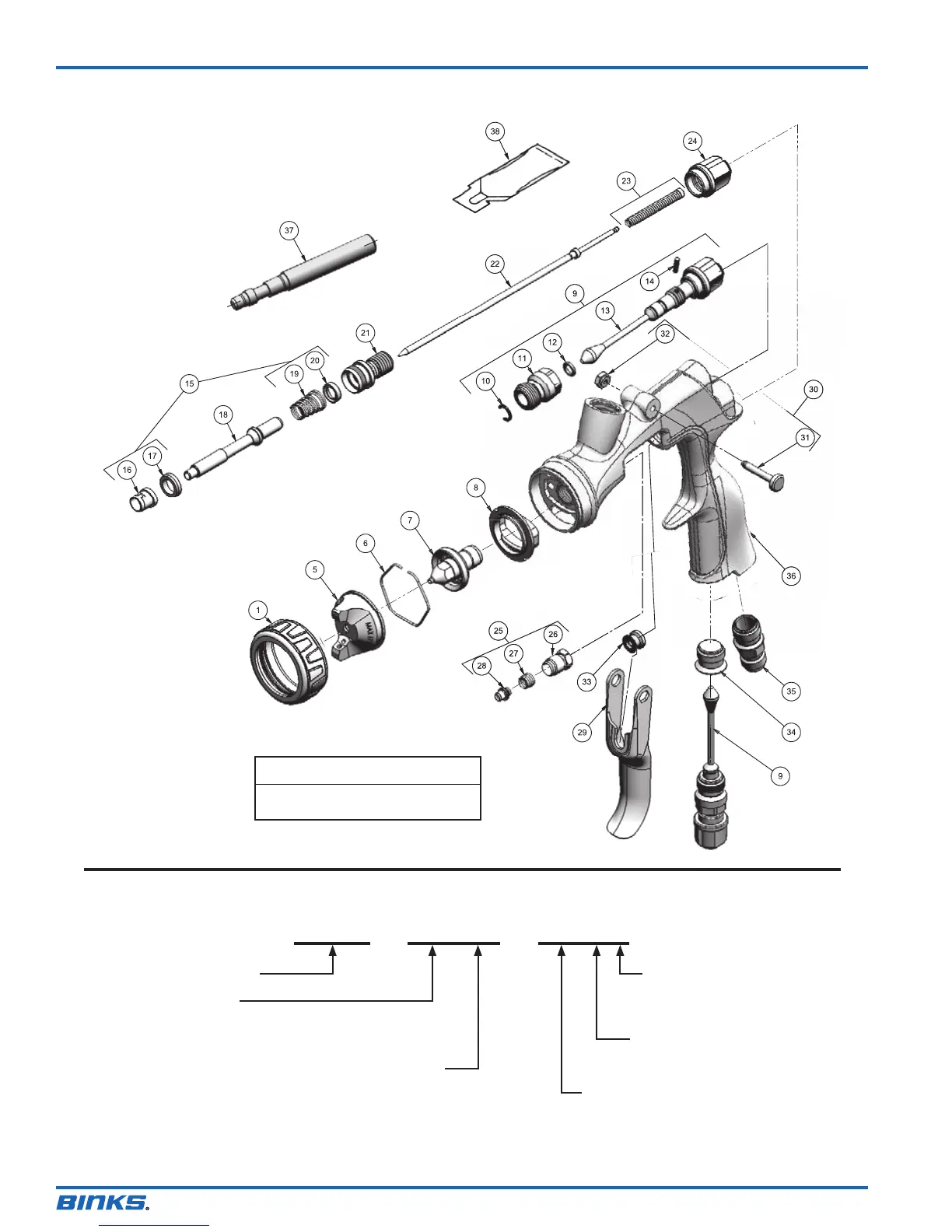

BINKS “TROPHY” SERIES GRAVITY SPRAY GUN
GRAVITY FEED GUN
ORIFICE SIZES
12 1.2 MM
14 1.4 MM
16 1.6 MM
18 1.8 MM
CUP DESIGNATION
0 NO CUP
G GRAVITY CUP
2466 – XXXX – XXXX
NEEDLE MATERIAL
S STAINLESS (HARDENED)
AIR CAP DESIGNATION
10 Series CONVENTIONAL
20 Series LVMP
30 Series HVLP
ATOMIZATION TECHNOLOGY
CN CONVENTIONAL
L V LVMP
HV HVLP
NUMBERING SYSTEM FOR FULL SIZE BINKS “TROPHY” SERIES GRAVITY SPRAY GUNS
Side port
adjusting valve
can be used as
an optional air
adjusting valve.
See charts on page 6 for complete gun assemblies.
NOTE
All gravity feed spray guns include
900cc aluminum cup (54-6106).
