Manual for VMP300-based instruments
53

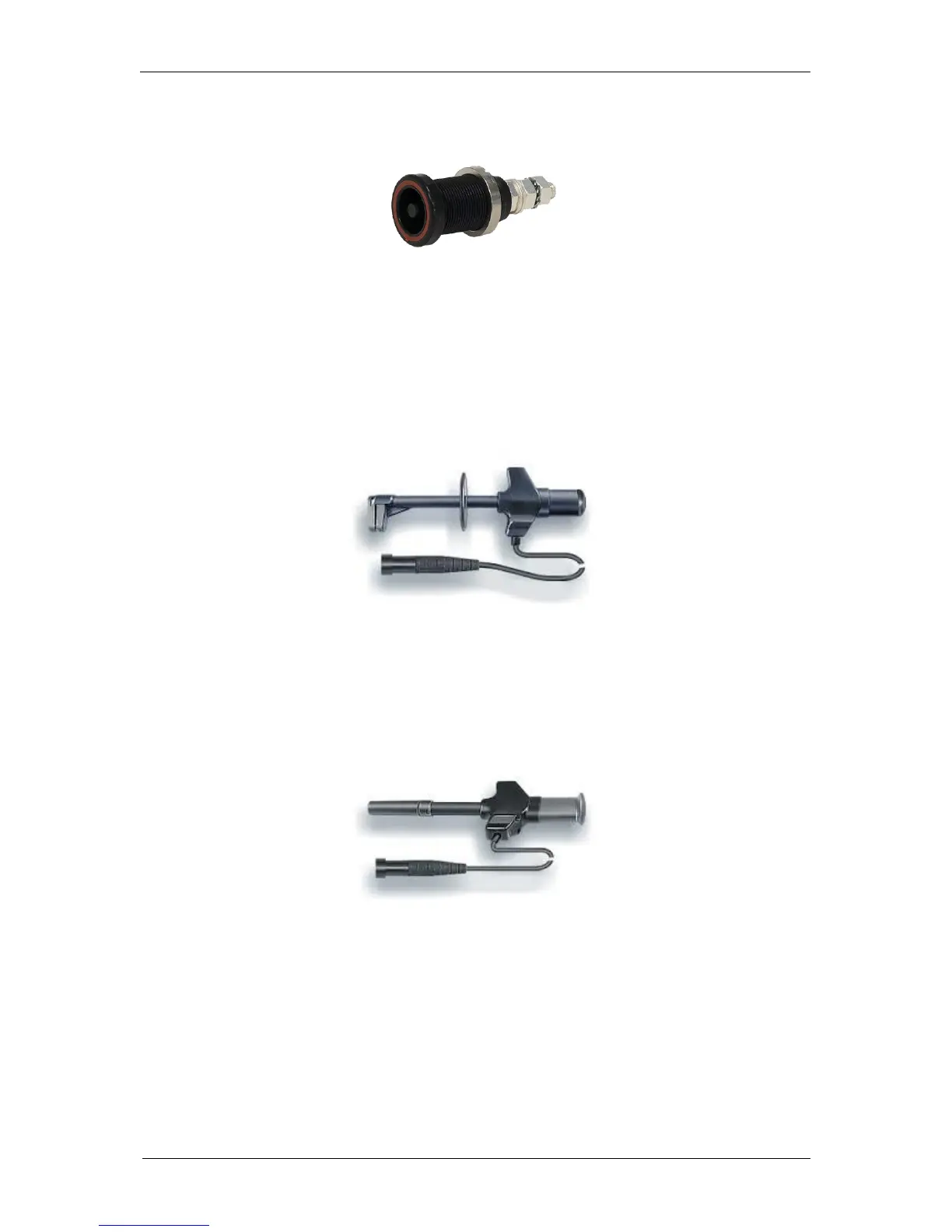

6 mm safety flush-mounting receptacles with snap-in lock and M6 threaded stud (Fig. 74) are
provided to connect the 6 mm standard cable to the battery or battery pack.
Fig. 74: 6 mm power socket.
5.3.3.2 Additional power cables/connector can be purchased
Additional power cables are available:
Flat contact clamps for fast and safe contact on flat conductor bars (max. 10mm thick).
Highly flexible lead with Ø 6mm spring-loaded safety socket with snap-in lock, the same
as in the standard power cables.
Fig. 75: Flat contact clamps.
M6-threaded pliers are for fast and safe contact of threaded bolts on motor terminal
boards. Highly flexible lead silicone insulated with Ø 6mm safety socket. A maximum
of 40 A can pass through the M6 thread.
Fig. 76: M6 threaded single-collet pliers.
Screw-on adapter for M8 threaded bolts. The axial connection is made by means of a
Ø 6mm socket with locking device or a Ø 4mm safety plug.
