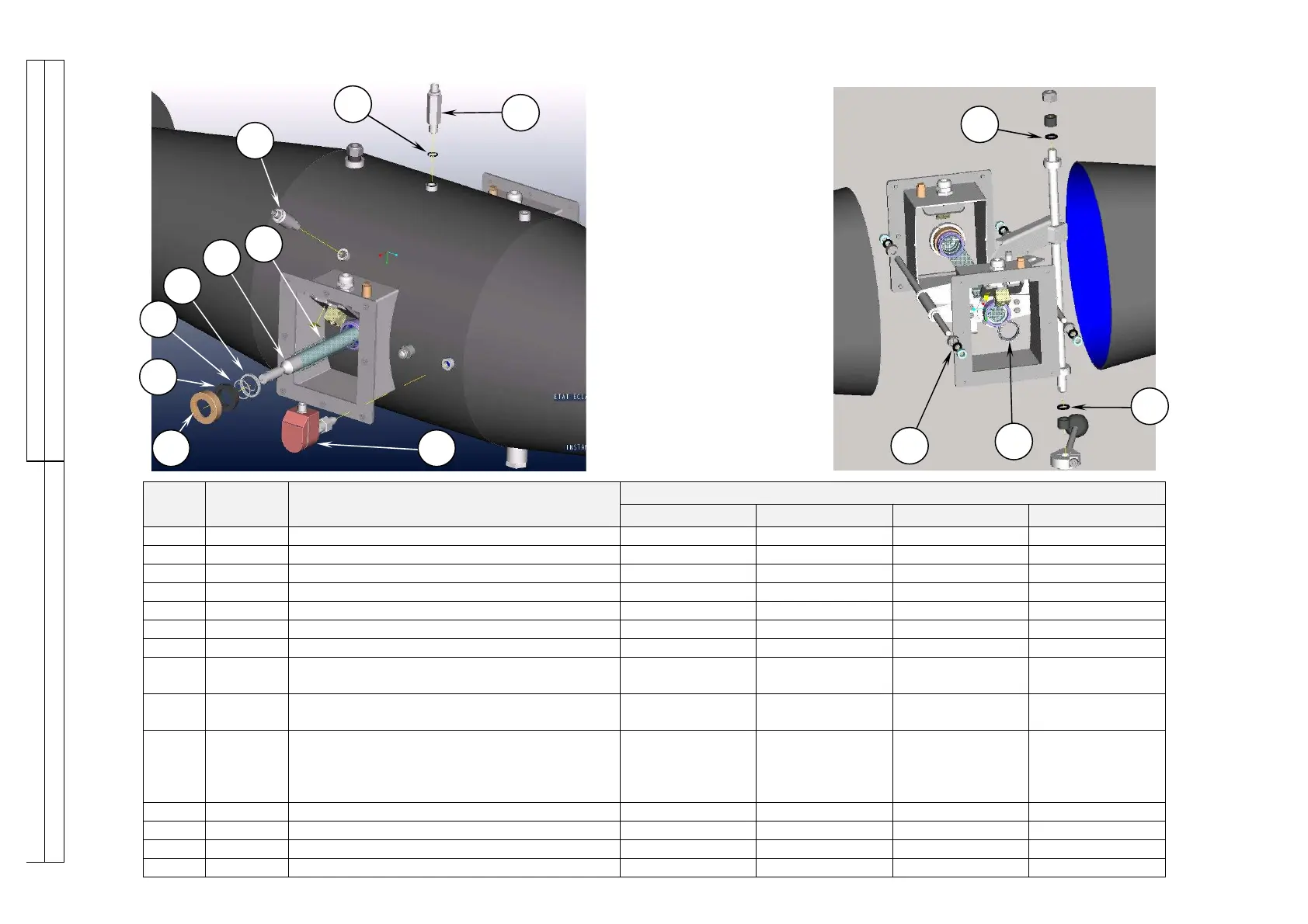

BIO UV MP 100 - Blown up View

N. BLOWN UP VIEW
Reference
N° Quantity Designation
MP 100 MP 125 MP 140 & 240 MP 340 & 440
1 2*
MP nut
USI000019 USI000019 USI000019 USI000019
2 2*
Aluminium washer
PIE000487 PIE000487 PIE000487 PIE000487
3 Variable
PTFE rings kit
PDP003478 PDP003478 PDP003478 PDP003478
4 2*
Seal
JTS000098 JTS000098 JTS000098 JTS000098
5 1*
Lamp
LPE000010 LPE004371 LPE004372 LPE004372
6 1*
Quartz sleeve
QUA000021 QUA000021 QUA000022 QUA000022
7 1
Seal
JTS000230 JTS000230 JTS000230 JTS000230
8 1
Temperature sensor
Temperature sensor cable
ELE002289
ELE002701
ELE002289
ELE002701
ELE002289
ELE002701
ELE002289
ELE002701
9 1
Teflon UV sensor for MP
UV sensor cable
ELE002288
ELE002800
ELE002288
ELE002800
ELE002288
ELE002800
ELE002288
ELE002800
10 1
Flow meter SI1000 and SI5000
Flow meter SI1006 and SI5006
Flow meter cable SI1000 and SI5000
Flow meter cable SI1006 and SI5006
ELE000057
ELE000056
ELE000306
ELE000016
ELE000057
ELE000056
ELE000306
ELE000016
ELE000057
ELE000056
ELE000306
ELE000016
ELE000057
ELE000056
ELE000306
ELE000016
11 4
Seal 10x3
JTS000094 JTS000094 JTS000094 JTS000094
12 2*
Wiper seal
JTS000099 JTS000099 JTS000099 JTS000099
13 2
Seal
JTS000095 JTS000095 JTS000095 JTS000584
14 2
Exhaust silencer
PNEU000097 PNEU000097 PNEU000097 PNEU000097
* Multiply this number by the number of lamps.
