D. INSTALLATION OF THE REACTOR

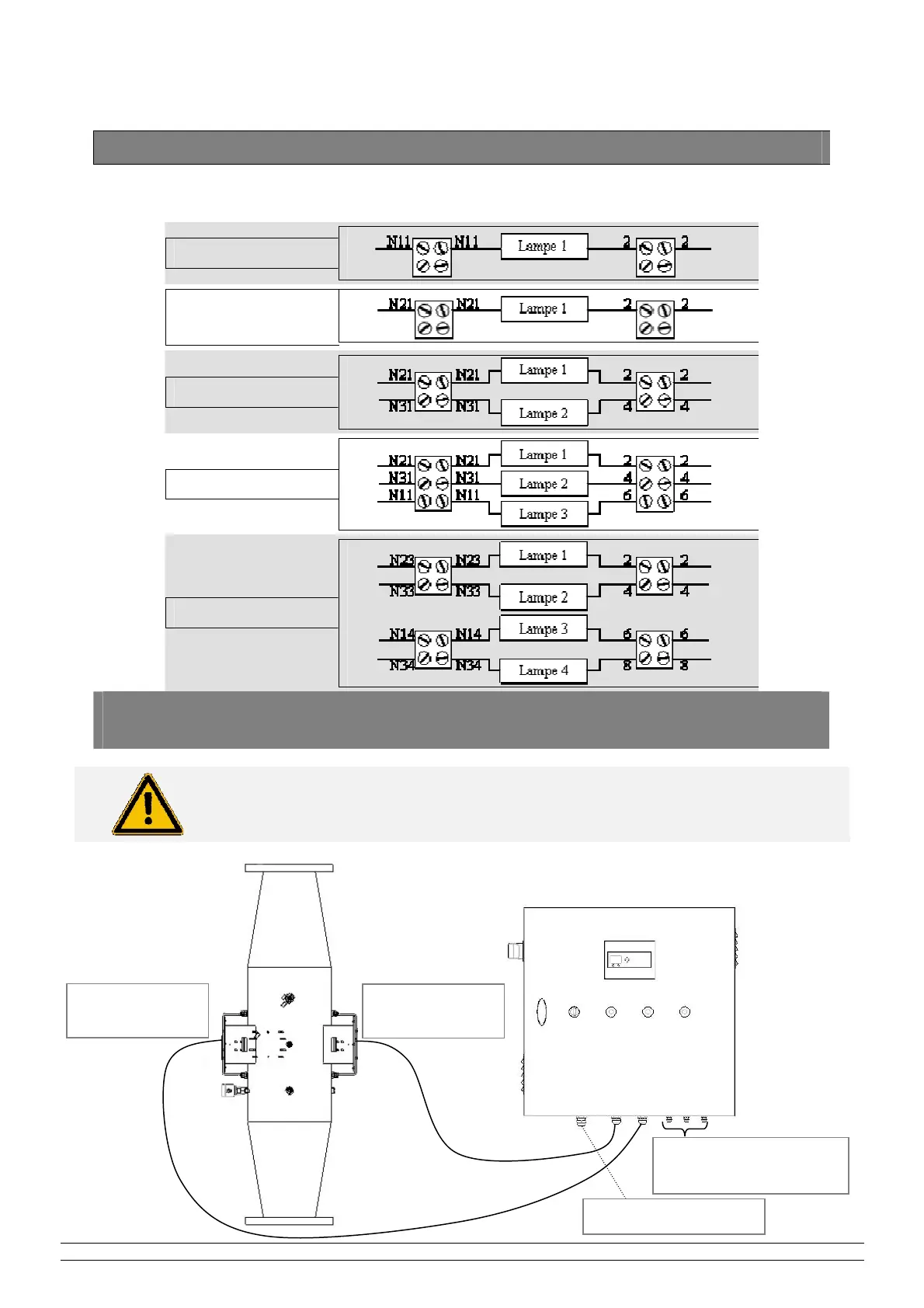

WIRING OF THE LAMPS
The following diagrams give the correspondences for wiring of the lamps according to the unit type.
MP 100
MP 125 AND
140
MP 240
MP 340
MP 440
Overall installation view
LAMPS must be HORIZONTAL.
Sensors, alarms and
cleaning
UV lamp
power supply
General power
UV lamp
power supply
