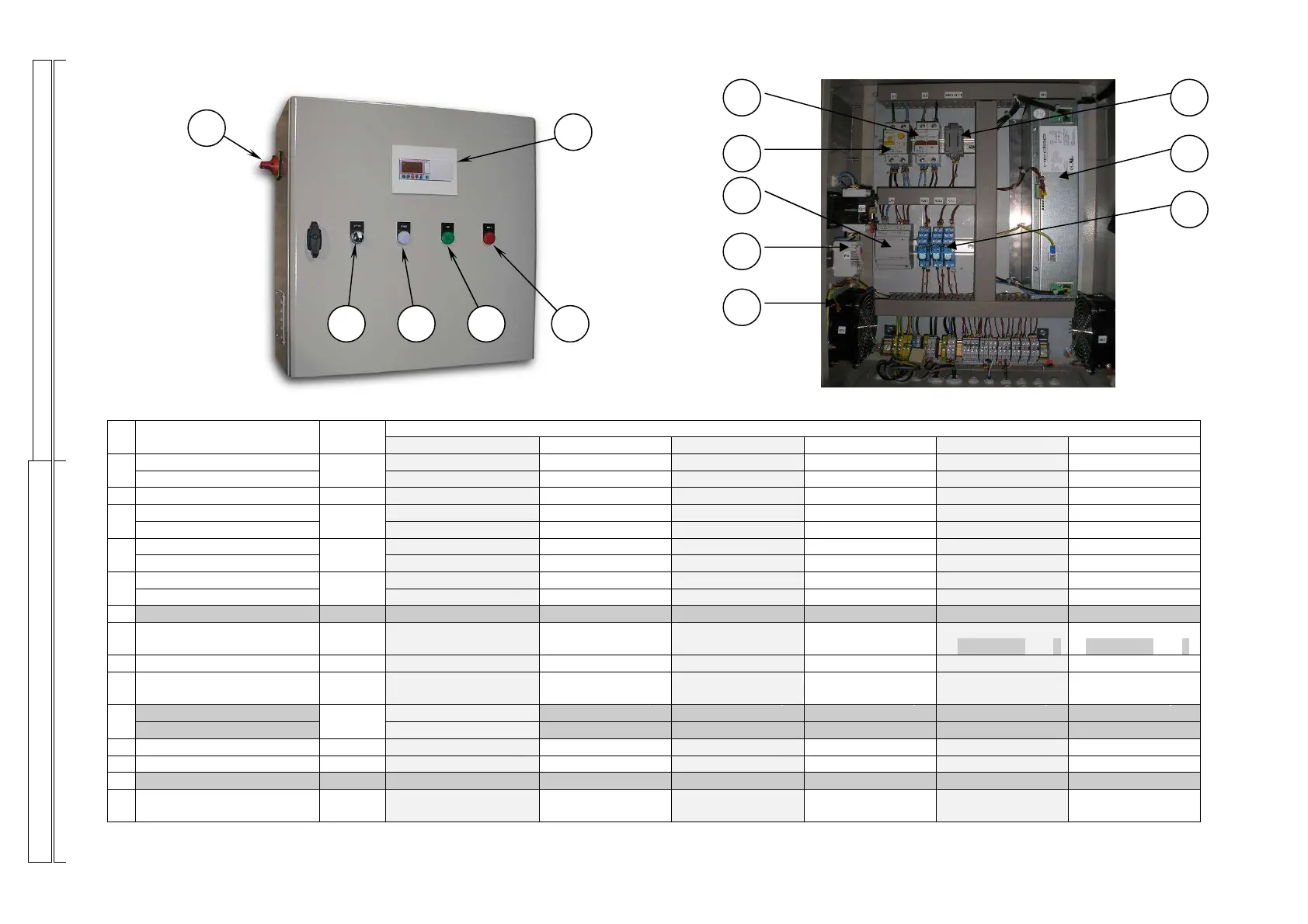

M. ELECTRICAL UNIT
Références and quanttities by reactor
N°
Désignation Tag
MP100
Qty
MP125
Qty
MP140
Qty
MP240
Qty
MP340
Qty
MP440
Qty
Disconnecting switch
ELE000117 1 ELE000117 1 ELE000117 1 ELE000112 1 ELE000112 1 ELE000140 1
1
Main pole
Q1
- ELE001080 1 ELE001080 1 ELE001082 1 ELE001082 1 ELE001083 1
2
ON/OFF switch
S1 ELE000271 1 ELE000271 1 ELE000271 1 ELE000271 1 ELE000271 1 ELE000271 1
Hide ligth white
ELE000297 1 ELE000297 1 ELE000297 1 ELE000297 1 ELE000297 1 ELE000297 1
3
LED white
H1
ELE000274 1 ELE000274 1 ELE000274 1 ELE000274 1 ELE000274 1 ELE000274 1
Hide ligth green
ELE000296 1 ELE000296 1 ELE000296 1 ELE000296 1 ELE000296 1 ELE000296 1
4
LED green
H2
ELE000272 1 ELE000272 1 ELE000272 1 ELE000272 1 ELE000272 1 ELE000272 1
Hide ligth red
ELE001016 1 ELE001016 1 ELE001016 1 ELE001016 1 ELE001016 1 ELE001016 1
5
LED red
H3
ELE001303 1 ELE001303 1 ELE001303 1 ELE001303 1 ELE001303 1 ELE001303 1
6
Monitor M3
Monitor ELE002401 1 ELE002401 1 ELE002401 1 ELE002401 1 ELE002401 1 ELE002401 1
7
Fan
Disposable filter
M
ELE000189
2
ELE000189
2
ELE000189
2
ELE000189
2
ELE000242
ELE001871
1
1
ELE000242
ELE001871
2
2
8
Thermostat
F0 ELE000335 1 ELE000335 1 ELE000335 1 ELE000335 1 ELE000335 1 ELE000335 1
9
Power supply 24VDC
U1
ELE002161
ELE002202*
1
ELE002161
ELE002202*
1
ELE002161
ELE002202*
1
ELE002161
ELE002202*
1
ELE002161
ELE002202*
1 ELE002202 1
Circuit breaker
ELE000186 1 ELE004426 1 ELE004426 1 ELE004499 1 ELE004497 1 ELE004496 1
10
Differential
D1
- - - 1 ELE004498 1 ELE004495 1 ELE004495 1
11
Circuit breaker
D2 ELE004425 1 ELE001445 1 ELE001445 1 ELE001445 1 ELE001445 1 ELE002334 1
12
Resistor box
RESIST1
13
Electronic Ballast
B BAL004390 1 BAL004270 1 BAL004270 1 BAL004270 2 BAL004270 3 BAL004270 4
14
Relay
KA
ELE001060
3
5*
ELE001060
3
5*
ELE001060
3
5*
ELE001060
3
5*
ELE001060
3
5*
ELE001060
3
5*
* Only with Automatic cleaning option
