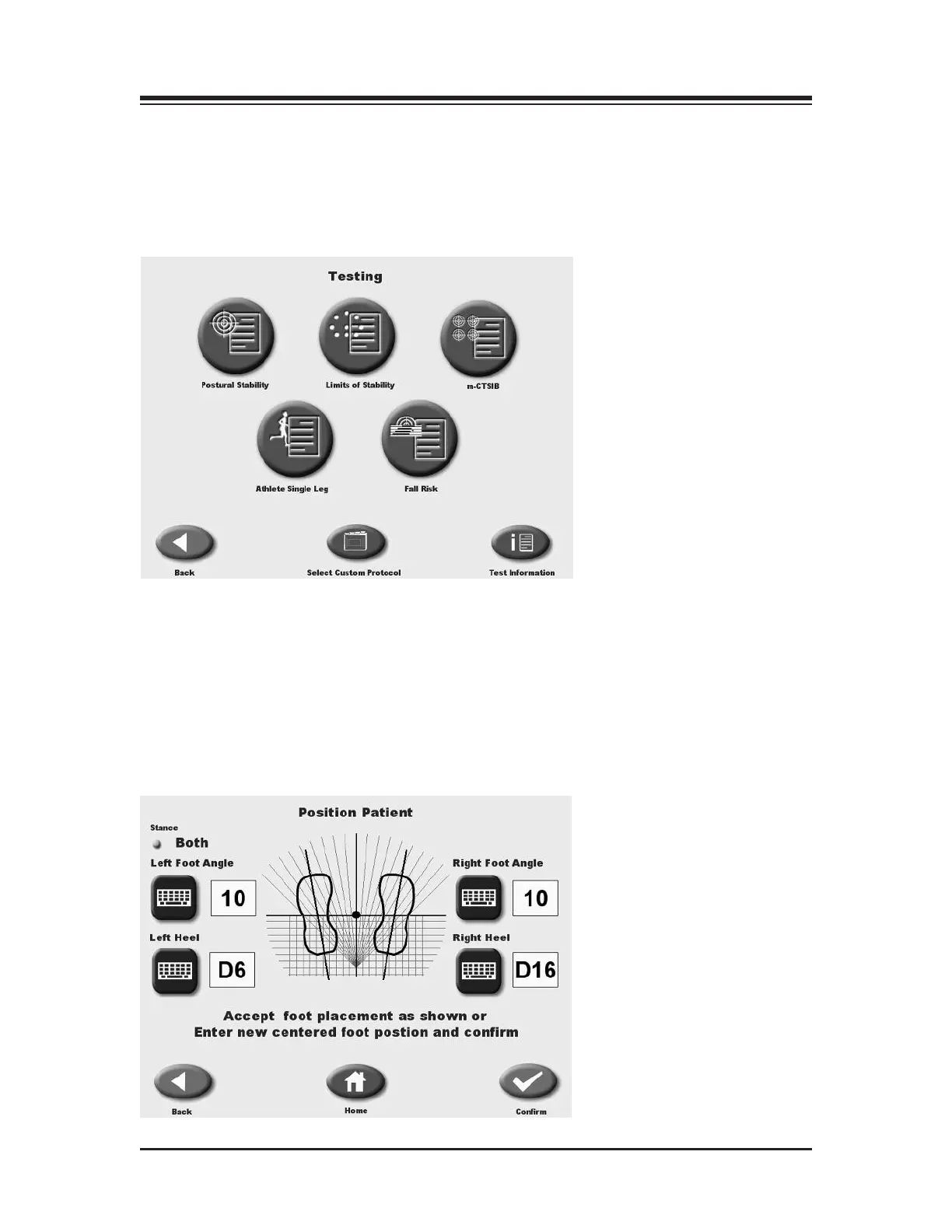

To perform the CTSIB test, simply follow screen prompts.
1. Select the m-CTSIB from the test screen menu
2
. Address each screen as you progress through the menus. The default test conditions are four
m-CTSIB conditions.
%@D:E:@?%2E:6?E
Position the patient’s feet as noted. If patient cannot be positioned as
suggested, center patient and enter new foot position. The foot angle is determined by the line that is
parallel with the inside of the foot.
Foot placement is based on height.
• < 53” defaults to a foot angle of 10/10 and Heel position of F7/F15 respectively.
• 53-59” defaults to a foot angle of 10/10 and Heel position of E7/E15 respectively.
• 59-65”and 65- 73” default to a foot angle of 10/10 and Heel position of D67/D16 respectively.
• 73” + defaults to a foot angle of 10/10 and Heel position of C5/C17 respectively.
CONTENTS
— 8-19 — TESTING
