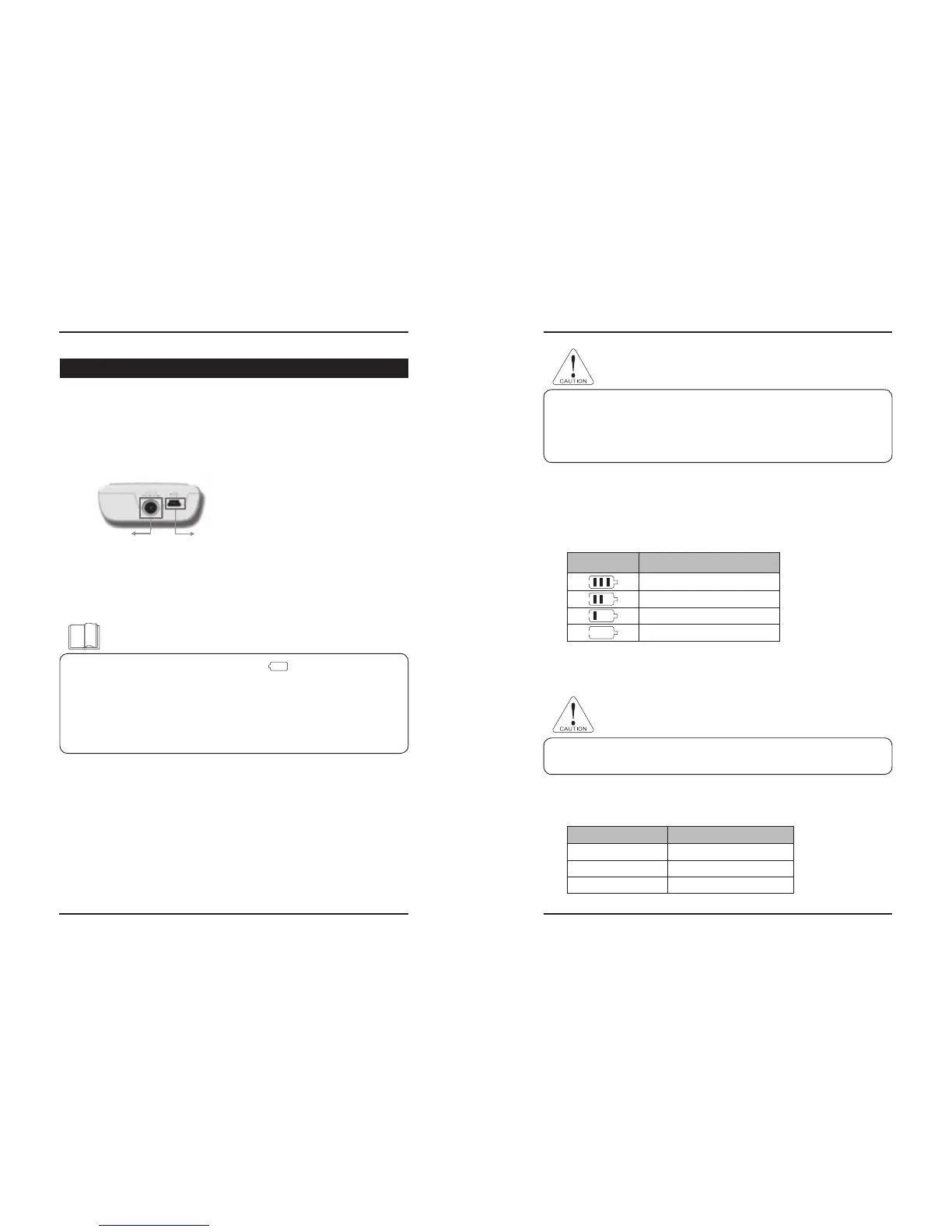

31 Power & Battery Specifications Power & Battery Specifications 32
PalmCare plus
PalmCare plus can be operated DC power. It can be operated while on the move by getting the power
from the internal battery which ca be used again by recharging with the DC adapter.
■ DC Adapter Power
In case battery power is running out, it is automatically recharged if you connect DC adapter to
Palmcare plus to the outlet.
■ Battery Power
The internal battery supplies the sources of electricity, if you separate the Dc adapter from Palmcare
plus.
- Recharging period : 1Houres 1H/2 Min(1CELL), 3 hours (2CELL)
- Continuous operating time : 3 hours(1CELL: 1130mAh) - Standard
6hours (2CELL: 2260mAh) - Optional
■ Both AC and DC power is used for PalmCare plus. Basically, AC power is used and a rechargeable
battery is available for portable use.
9.1 AC Power (110 ~ 240VAC)
If the AC power is connected to the main body of the product, If the product is not being used, the
power changes automatically to the recharging mode.
A. Type of Adaptor
- Model : JMW110KA0500M03 - Input : 100~240V~, 50~60Hz
- Manufacturer : BridgePower Corp. - Output : 5V(DC), 2Amps
9. Power & Battery Specifications
◈ In case battery power is running out, battery – shaped icon ( ) will blink at the upper portion of
the LCD screen before about 5 minutes of the power shortage. And the power can be immediately
turned off according to the using parameter. Therefore, DC power has to be supplied at once.
◈ For the effective use of battery, Palmcare plus has the power saving mode it turn off the LCD back
light after 3 seconds and also turn off the all functions of Palmcare plus after 30 seconds, if the user
does not operate any button or measures. (However, if he starts operating any button or measurement
within 30 seconds, the LCD back light turns on again) But it will not turn off the power if the AC
adapter is connected.
9.2 Battery Specifications
When the AC power is disconnected and the switch is turned on, the power is supplied using the
battery.
A. Signs for Battery
B. Time for 1ea of battery
Recharging time: 1H 1H/2Min, 3H(OP MODE), (2H,4H)(POWER OFF)
Use time : 180 Min, 360 MIN
C. Natural lifetime for spontaneous discharge of battery
The table below shows the lifetime for spontaneous discharge of the battery when the product is
unused.
Battery full
After use for 70 ~ 80 minutes
Requiring recharging
Low Battery requiring recharging
Battery status
Description
◈ During operation using AC power, noise may occur in the waveform. If this is the case,
ground the product soundly.
◈ An AC power connection in a wet or damp area may cause electric shock or fatal damage to
the product.
◈ When you connect the adapter will charge the battery automatically.
◈ When the battery is removed, all data can be reset. Only in case the product is kept for long
time, Remove the battery from the product.
Storage temperature
Life for spontaneous discharge
3 months
6 months
9 months
31℃ ~ 45℃
21℃ ~ 30℃
0℃ ~ 20℃
① USB (mini B Type) Communication connector
② DC Adapter connector
①②
NOTE
CAUTION
CAUTION
