Bionics PalmCare plus - 3 Description of Product Symbols; Screen Configuration

Handheld Pulse Oximeter
13 Description of Equipment Symbols Description of Equipment Symbols 14
PalmCare plus

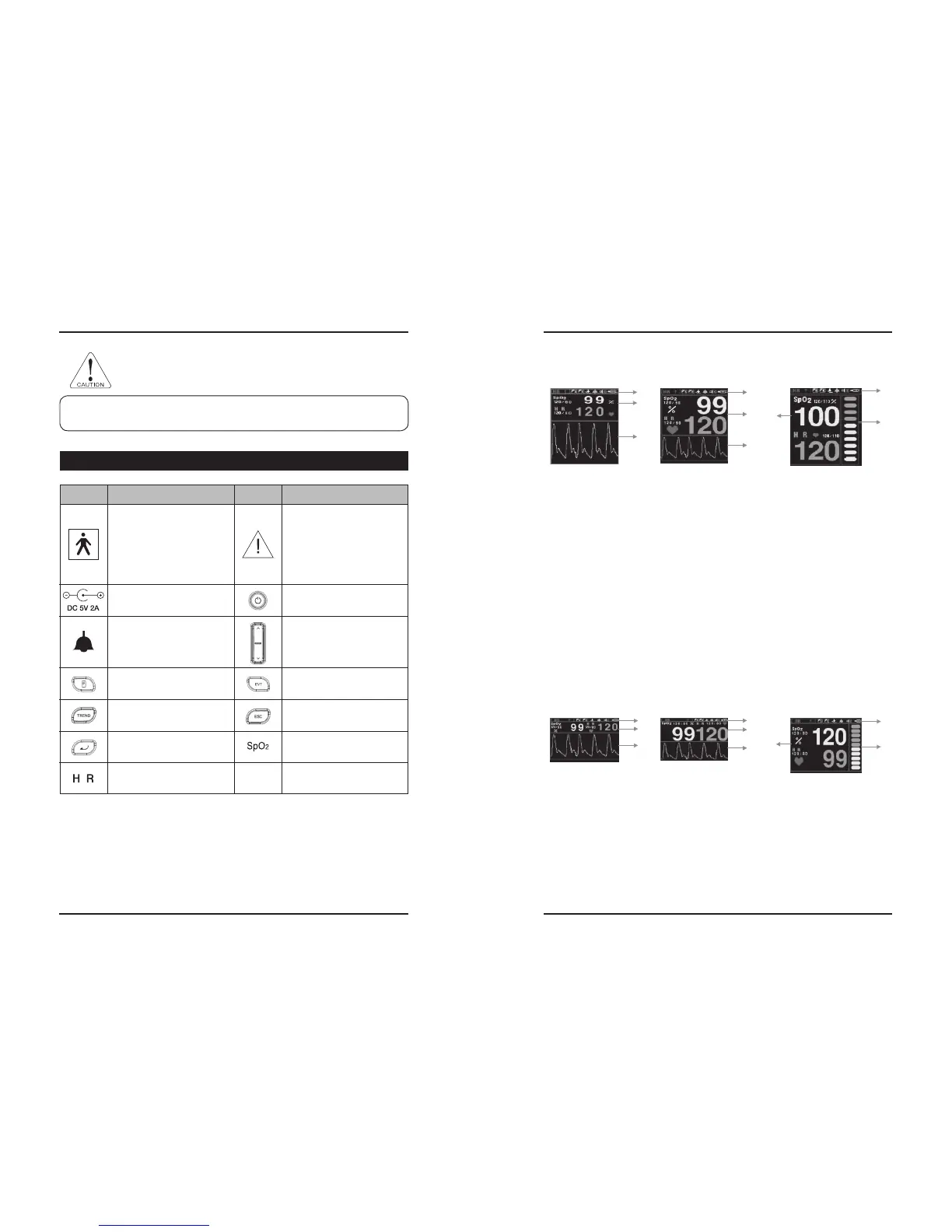

3. Description of Equipment Symbols
Symbol Description Symbol Description
Type BF equipment. Type BF
equipment is suitable for
intentional external and internal
application to the patient,
excluding a direct conductive
connection to the patient’s heart.
This symbol means attention
during operation. You should pay
special attention to the equipment
when the equipment is operated in
conjunction with other equipment.
DC 5V POWER INPUT
ALARM SOUND ON/OFF
MENU BOTTON
TREND BOTTON
ENTER BOTTON
HEART BEAT RATE PER
MINUTE
POWER SWITCH
UP/DOWN BUTTON
EVENT SAVE BOTTON
ESC BOTTON
OXYGEN SATURATION
3.1 Screen Configuration
Initial screen is shown after system boot and test for about 3 seconds, if you turn the power on.
※PalmCare plus offers six kinds of initial screen as the following pictures for the user’s
convenience, initial screen displayed on pressing power button can be set up differently.
※Please refer the chapter 6 for how to set up each initial display mode.
◈ In order to avoid electrical shock, do not open the cover. Disassembling of the equipment
must be done only an by service personnel who is authorized by BIONICS.
- Vertical mode initial screen
(1) Big Wave Mode
①The domain showing various kinds of icons which describe the current state(Information
Alarm) of PalmCare plus
②Measured SpO2 and pulse rate value
③Big Wave
(2) Small Wave Mode
①The domain showing various kinds of icons which descried the current sate (information
Alarm) of Palmcare plus
②Measured SpO
2 and pulse rate value
③Small Wave
(3) Pleth Bar Mode
①The domain showing various kinds of icons which descried the current sate (information
Alarm) of Palmcare plus
②Measured SpO
2 and pulse rate value
③Pleth Bar
- Horizontal Mode initial screen
(1) Big Wave Mode
①The domain showing various kinds of icons which describe the current state(Information
Alarm) of PalmCare plus
②Measured SpO
2 and pulse rate value
③Big Wave
(2) Small Wave Mode
①The domain showing various kinds of icons which describe the current state(Information
Alarm) of PalmCare plus.
②Measured SpO
2 and pulse rate value
①
②
③
1) Large Wave Mode
①
②
③
1) Large Wave Mode
①
②
③
2) Small Wave Mode
①
②
③
2) Small Wave Mode
①
②
③
3) Pleth Bar Mode
①
②
③
3) Pleth Bar Mode
CAUTION
