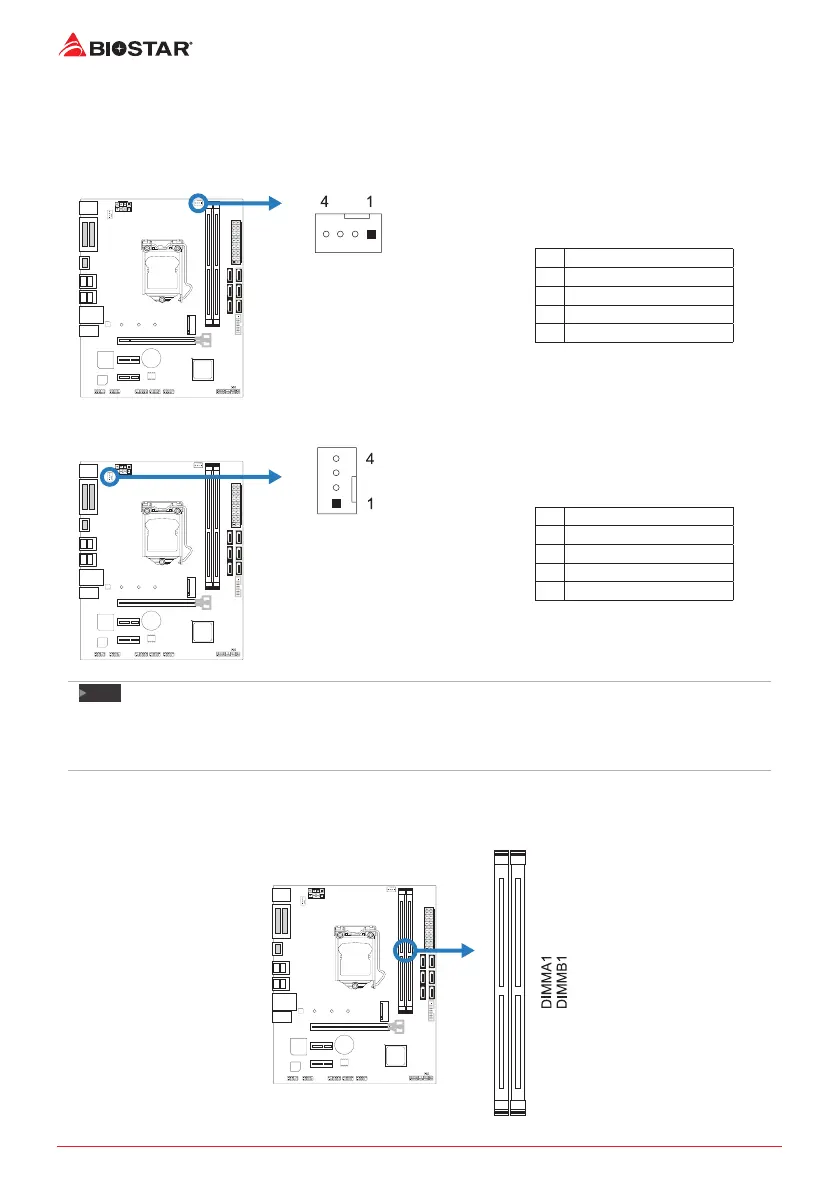

2.3 Connect Cooling Fans
These fan headers support cooling-fans built in the computer. The fan cable and connector
may be dierent according to the fan manufacturer.
CPU_FAN: CPU Fan Header
Pin Assignment
1 Ground
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
SYS_FAN: System Fan Header
Pin Assignment
1 Ground
2 Voltage Speed Control
3 Sense
4 PWM Speed Control
Note
»
 CPU_FAN,SYS_FANsupport4-pinand3-pinheadconnectors.Whenconnecngwithwiresonto
connectors,pleasenotethattheredwireistheposiveandshouldbeconnectedtopin#2,andthe
blackwireisGroundandshouldbeconnectedtopin#1(GND).
2.4 Install System Memory
DDR4 Modules
