14 | Chapter 2: Hardware installaon

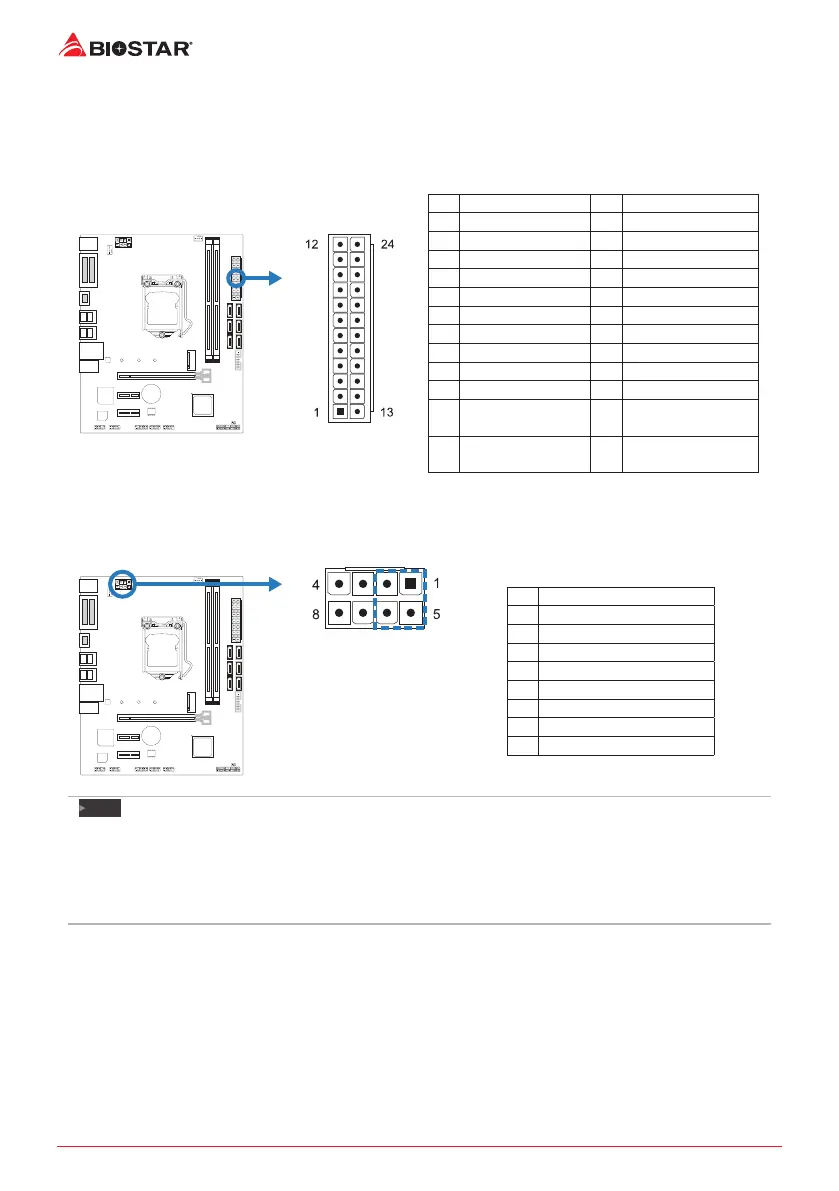

2.7 Headers & Connectors
ATX: ATX Power Source Connector
For beer compability, we recommend to use a standard ATX 24-pin power supply for this
connector. Make sure to nd the correct orientaon before plugging the connector.
Pin Assignment Pin Assignment
13 +3.3V 1 +3.3V
14 -12V 2 +3.3V
15 Ground 3 Ground
16 PS_ON (So On/O) 4 +5V
17 Ground 5 Ground
18 Ground 6 +5V
19 Ground 7 Ground
20 NC 8 Power Good
21 +5V 9 Standby Voltage+5V
22 +5V 10 +12V
23
+5V (Only for 2x12-pin
ATX)
11
+12V (Only for 2x12-pin
ATX)
24
Ground (Only for 2x12-
pin ATX)
12
+3.3V (Only for 2x12-pin
ATX)
ATX_12V_2X4: ATX Power Source Connector
The connector provides +12V to the CPU power circuit. If the CPU power plug is 4-pin, please
plug it into Pin 1-2-5-6 of ATXPWR2.
Pin Assignment
1 Ground (Only for 2x4-pin 12V)
2 Ground (Only for 2x4-pin 12V)
3 Ground
4 Ground
5 +12V (Only for 2x4-pin 12V)
6 +12V (Only for 2x4-pin 12V)
7 +12V
8 +12V
Note
»
 Beforeyoupoweronthesystem,pleasemakesurethatbothATXandATX_12V_2X4connectors
havebeenplugged-in.
»
 Insucientpowersuppliedtothesystemmayresultininstabilityortheperipheralsnotfunconing
properly.UseofaPSUwithahigherpoweroutputisrecommendedwhenconguringasystemwith
morepower-consumingdevices.
