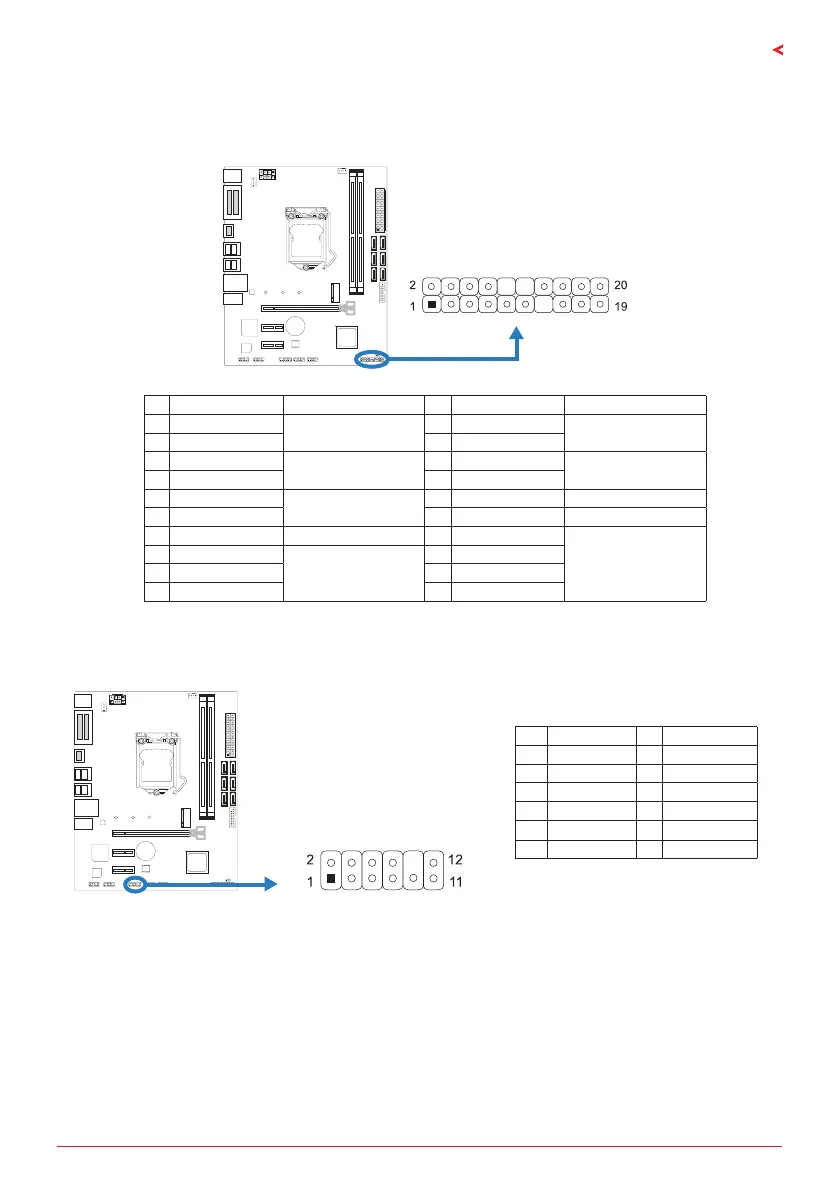

F_PANEL: Front Panel Header
This 20-pin header includes Power Switch, Reset, Chassis Intrusion Switch, Power LED, and
speaker connecon.
Pin Assignment Funcon Pin Assignment Funcon
1 HD+
Hard Drive Acvity LED
2 PLED+
Power LED
3 HD- 4 PLED-
5 RES-
Reset Switch
6 PW+
Power Switch
7 RES+ 8 PW-
9 CI-
Chassis Intrusion Header
10 N/A N/A
11 CI+ 12 N/A N/A
13 N/A N/A 14 SPEAK+
Speaker
15 PWR_LED+
Power LED
16 NC
17 PWR_LED- 18 NC
19 PWR_LED- 20 SPEAD-
TPM: Trusted Plaorm Module Header
This header allows you to store cryptographic keys that protect informaon.
Pin Assignment Pin Assignment
1 LAD0 2 +3V
3 LAD1 4 N/A
5 LAD2 6 LCLK
7 LAD3 8 Ground
9 LFRAME 10 NC
11 SERIRQ 12 LRESET
