第二章: 硬體安裝 | 11
B550MX/E PRO | B550MH/E PRO
2�3 風扇接頭

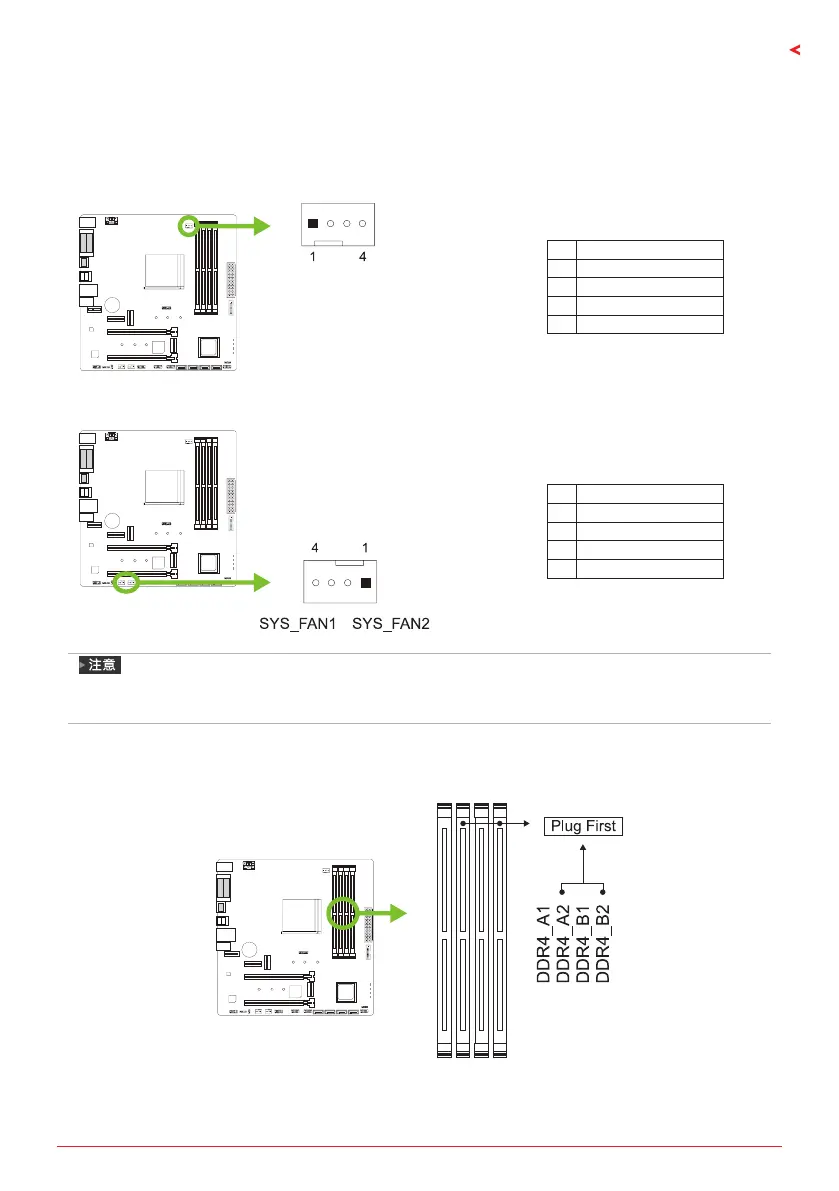

此風扇接頭支援電腦上設置的冷卻風扇,風扇電纜和連接器可能因風扇製造商而有差
異。
CPU_FAN: CPU風扇接頭
定義
1 接地
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1/ SYS_FAN2: 系統風扇接頭
定義
1 接地
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
»
CPU_FAN1SYS_FAN1/ SYS_FAN2支援4個針腳和3針腳接頭線時請注意紅線是正級需接
到第二個針腳線接地需接到接地針腳
2�4 系統記憶體
DDR4記憶體模組
