Глава 2: Установка оборудования | 11
B550MX/E PRO | B550MH/E PRO
2�3 Подключение охлаждающих вентиляторов
Следующие штыревые соединители предназначены для охлаждающих вентиляторов,
встроенных в компьютер. Кабель и разъем вентилятора могут отличаться в зависимости
от производителя вентилятора.

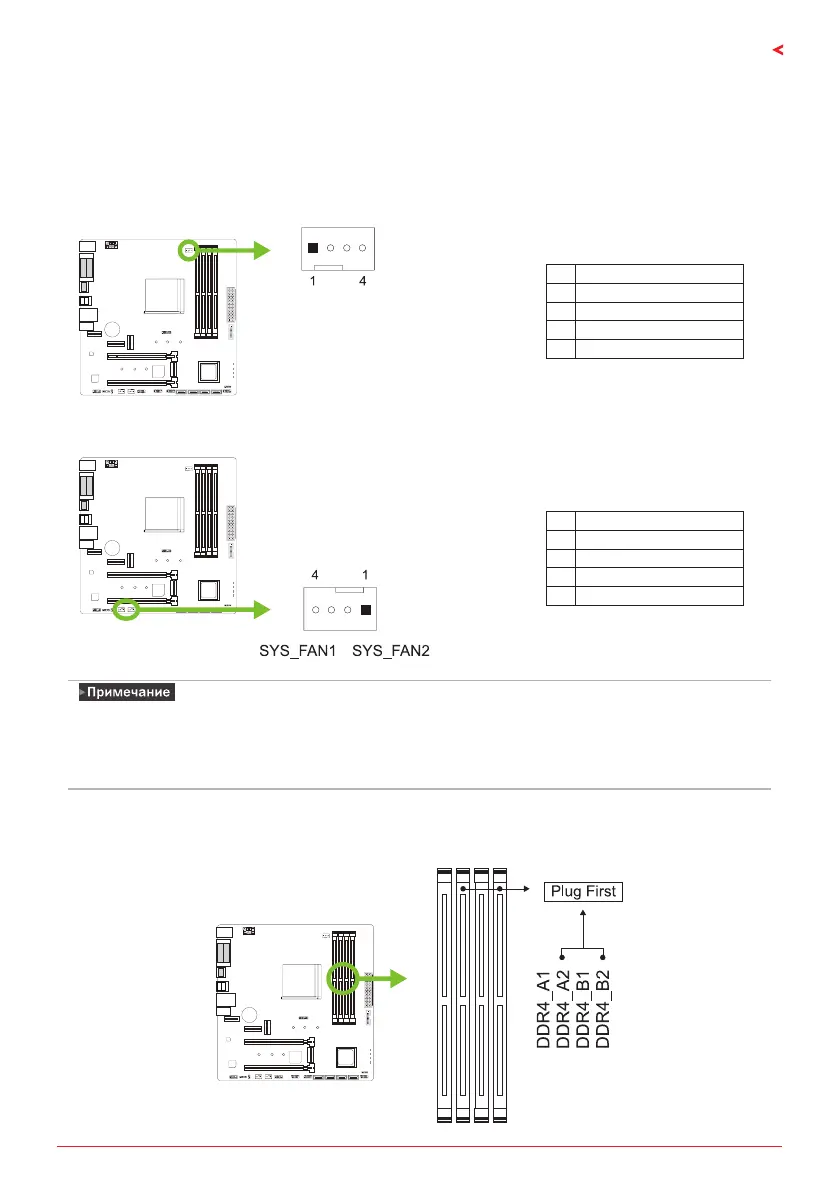

CPU_FAN: Штыревой соединитель вентилятора ЦП
Pin Назначение
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control
SYS_FAN1/ SYS_FAN2: Штыревой соединитель вентилятора системы
Pin Назначение
1 Ground
2 +12V
3 FAN RPM rate sense
4 AI Fan Control

»




2�4 Установка системной памяти
Модули DDR4

Biostar B550MX/E PRO Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B550
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3600, 3800, 4000, 4400, 4600, 4800, 4933 MHz
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
DirectX version	12.0
Parallel processing technology support	Not supported
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	-
Cables included	SATA
Bundled software	BullGuard
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	244 mm
