Chapter 2: Hardware installaon | 13

B550MX/E PRO | B550MH/E PRO

2.5 Expansion Slots

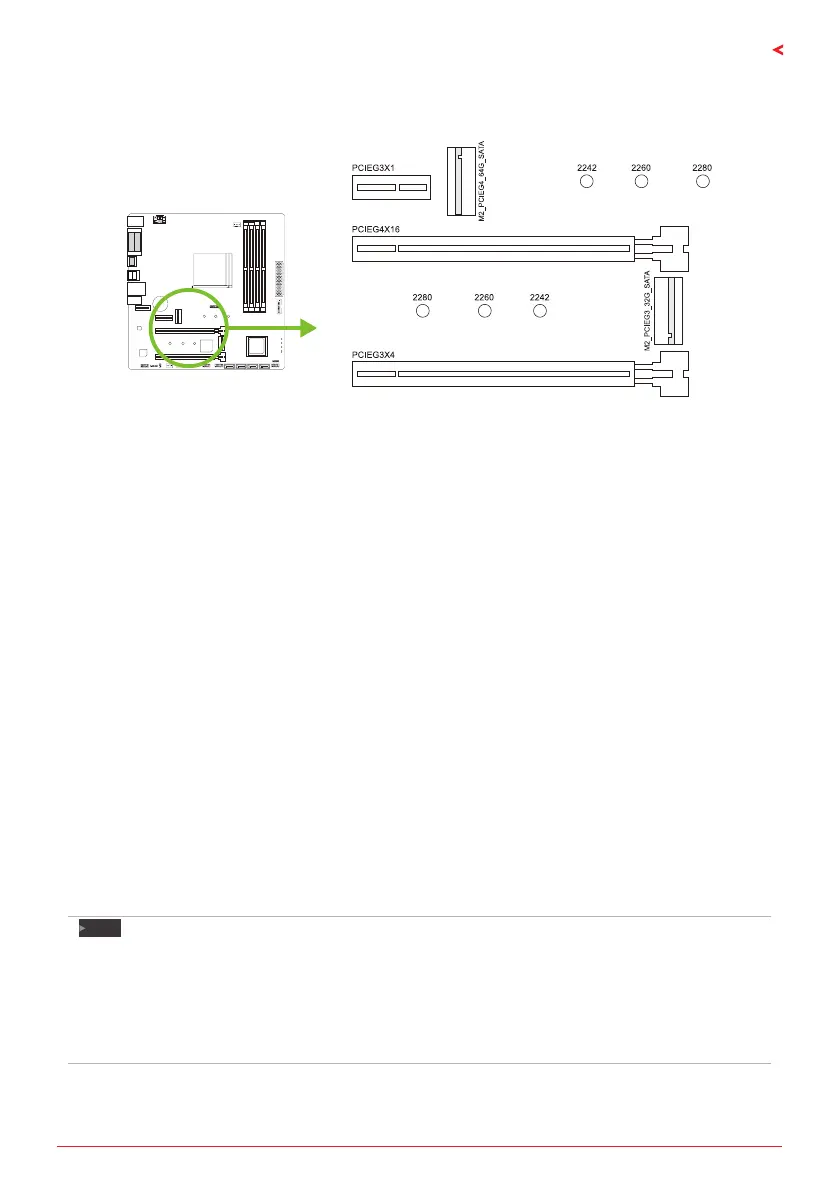

PCIEG4X16: PCI-Express Gen3/ Gen4 x16 Slot (x16 Mode)

• PCI-Express 3.0 compliant. The maximum bandwidth of the PCIe slot is 32GB/s.

• PCI-Express 4.0 compliant. The maximum bandwidth of the PCIe slot is 64GB/s.

• Supports PCIe 3.0 x16/ 4.0 x16 mode with AMD® Ryzen™ processors.

• Supports PCIe 3.0 x16 mode AMD® Ryzen™ with Radeon Vega Graphics processors.

PCIEG3X4: PCI-Express Gen3 x16 Slot (x4 Mode)

• PCI-Express 3.0 compliant. The maximum bandwidth of the PCIe slot is 8GB/s.

• Supports PCIe 3.0 x4 mode.

PCIEG3X1: PCI-Express Gen3 x1 Slot

• PCI-Express 3.0 compliant.

• Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total.

M2_PCIEG4_64G_SATA/ M2_PCIEG3_32G_SATA: M.2 (M Key) Socket

• The M.2 slot supports M.2 Type 2242/2260/2280 SSD module. When installing M.2 SSD

module, please place the screw and hex pillar to correct posion.

• M2_PCIEG4_64G_SATA:

Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen4 x4

(64Gb/s) or Gen3 x4 (32Gb/s) - NVMe/ AHCI SSD.

• M2_PCIEG3_32G_SATA:

Support M.2 SATA III (6.0 Gb/s) module and M.2 PCI Express module up to Gen3 x4

(32Gb/s) - NVMe/ AHCI SSD.

Note



AccordingtodierentCPUswillhavedierentspeeds.



PCIe4.0speedonlyforAMD®Ryzen™3rdGenMasseand4thGenVermeerCPUs.



M.2(MKey)Socket(M2_PCIEG4_64G_SATA):ThebandwidthisdependedonCPU.

SupportsPCI-E4.0x4(64Gb/s)speed,whichdependsonlyonRyzen3rdGenMasseand4thGen

VermeerCPUs.



WhenusingPCIex1slot(PCIEG3X1),PCIex16slot(PCIEG3X4)willbeadjustedtox2lanes.
