Biostar B550MX/E PRO User Manual

第二章: 硬體安裝 | 13
B550MX/E PRO | B550MH/E PRO

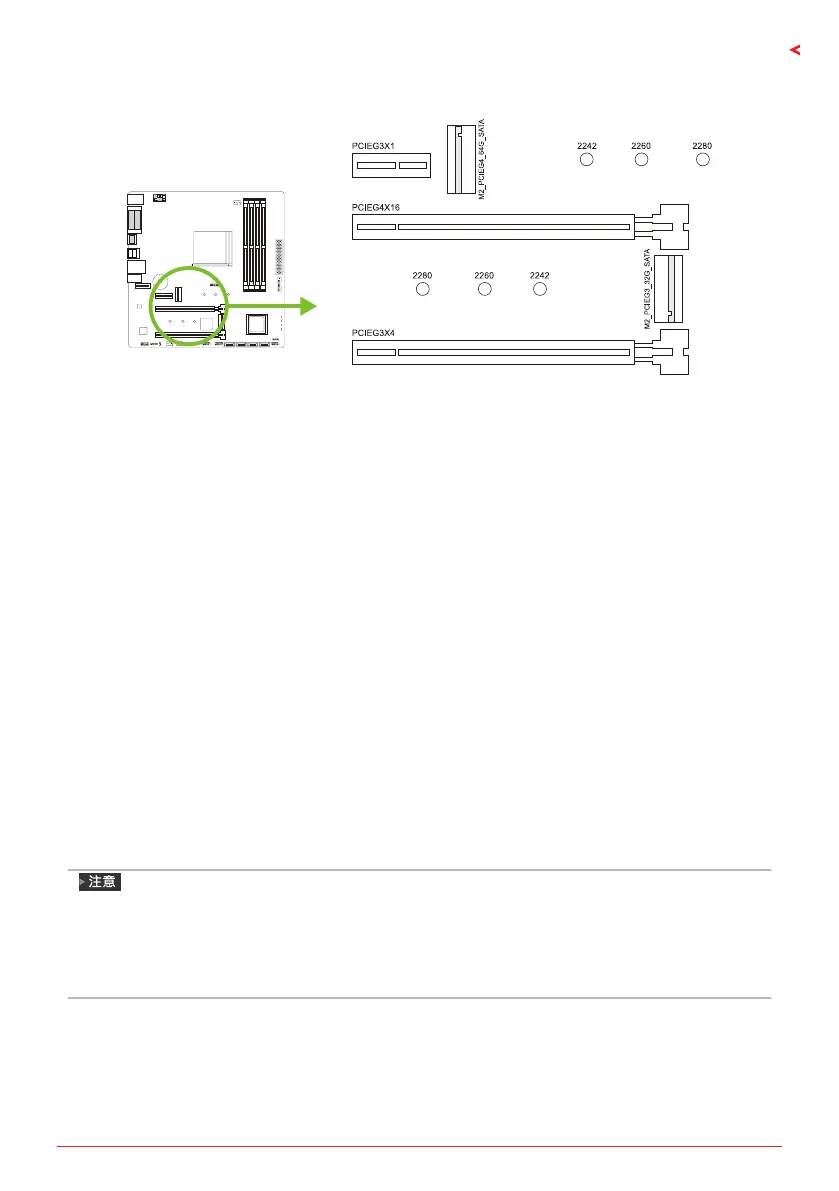

2�5 擴充插槽
PCIEG4X16: PCI-Express Gen3/ Gen4 x16 插槽 (x16 通道)
• 符合PCI-Express 3.0規範。最大帶寬總計為32GB/s。
• 符合PCI-Express 4.0規範。最大帶寬總計為64GB/s。
• AMD
®
Ryzen™ 處理器支援PCIe 3.0 x16/ 4.0 x16通道。
•
AMD
®
Ryzen™搭載Radeon™ 顯示卡處理器支援PCIe 3.0 x16通道。
PCIEG3X4: PCI-Express Gen3 x16 插槽 (x4 通道)
• 符合PCI-Express 3.0規範。最大帶寬總計為8GB/s。
• 支援PCIe 3.0 x4通道。
PCIEG3X1: PCI-Express Gen3 x1 插槽
• 符合PCI-Express 3.0規範。
• 每個資料傳輸頻寬高達1GB/s； 總頻寬為2GB/s。
M2_PCIEG4_64G_SATA/ M2_PCIEG3_32G_SATA: M�2 (M Key) 插槽
• M.2插槽支援2242/2260/2280類型SSD模組, 安裝M.2模組前請將六角柱放到正確
的位置。
• M2_PCIEG4_64G_SATA:
支援M.2 SATA III (6.0 Gb/s)模組與M.2 PCI Express Gen4 x4模組 (64Gb/s) 或
Gen3 x4模組 (32Gb/s) - NVMe/ AHCI SSD。
• M2_PCIEG3_32G_SATA:
支援M.2 SATA III (6.0 Gb/s)模組與M.2 PCI Express Gen3 x4模組 (32Gb/s) -
NVMe/ AHCI SSD。
»
根據不同的CPU會有不同的速度。
»
PCIe 4.0速度僅適用於AMD
®
Ryzen™第三代Matisse和第四代Vermeer處理器。
»
M.2插槽(M Key) (M2_PCIEG4_64G_SATA) : 頻寬取決於處理器。支援PCI-E 4.0 x4 (64Gb/s)
速度，該速度僅限於Ryzen第三代Matisse和第四代Vermeer處理器。
»
使用PCIe x1插槽(PCIEG3X1)時，PCIe x16插槽(PCIEG3X4)將調整為x2通道。

Biostar B550MX/E PRO Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B550
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3600, 3800, 4000, 4400, 4600, 4800, 4933 MHz
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
DirectX version	12.0
Parallel processing technology support	Not supported
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	-
Cables included	SATA
Bundled software	BullGuard
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	244 mm
