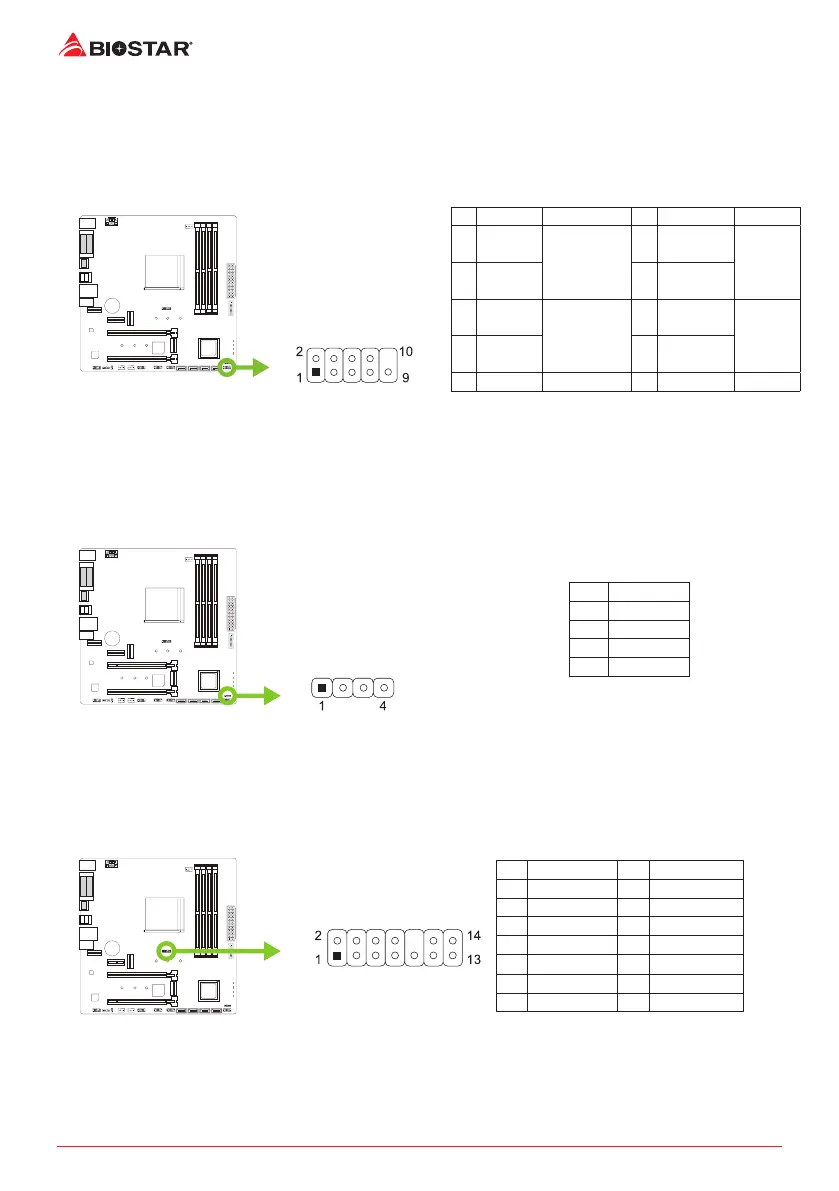

18 | 챕터 2: 하드웨어 설치
F_PANEL: 전면 패널 헤더
커넥터에는 전원 켜기, 재설정, HDD LED 및 전원 LED 연결이 포함됩니다. 사용자가
PC 케이스의 전면 패널 스위치 기능을 연결할 수 있습니다.
배열 기능 배열 기능
1
HDD LED
(+)
하드드라이브
LED
2
Power LED
(+)
파워 LED
3
HDD LED
(-)
4
Power LED
(-)
5 Ground
리셋 버튼
6
Power
button
전원 버튼
7
Reset
control
8 Ground
9 NC NC 10 NA NA
SPKR: 섀시 스피커 헤더
섀시 스피커를이 헤더에 연결하십시오.
배열
1 +5V
2 N/A
3 N/A
4 Speaker
TPM: 신뢰할 수있는 플랫폼 모듈 헤더
이 헤더를 사용하면 정보를 보호하는 암호화 키를 저장할 수 있습니다.
정의 정의
1 F_LAD0 2 +3V
3 F_LAD1 4 +3V
5 F_LAD2 6 TPM_24MHZ
7 F_LAD3 8 GND
9 L_FRAME_N 10 NC
11 SER_IRQ 12 PLTRST_N
13 CLK_RUN_N 14 +3V3_DUAL
