Biostar B550MX/E PRO User Manual

第二章: 硬體安裝 | 15
B550MX/E PRO | B550MH/E PRO
2�6 跳線設定

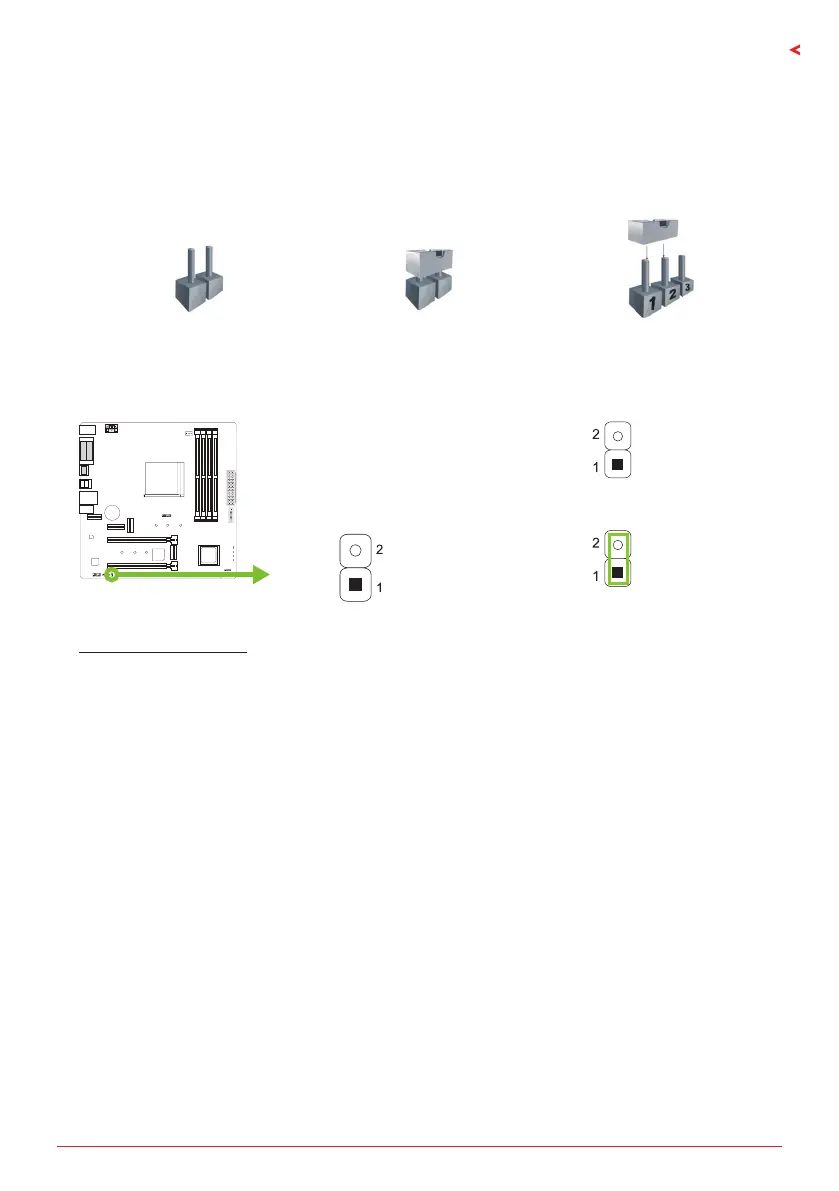

下圖顯示為如何安裝跳線。當跳帽放置在針腳上時，跳線為關閉(close)狀態。若跳帽未
放置在針腳上時，則跳線為打開(open)狀態。下圖顯示如何設置跳線。
針腳 打開 針腳 關閉 針腳1-2
關閉
JCMOS1: 清空CMOS 跳線
用戶可清空CMOS數據並恢復BIOS安全設定，請依照以下步驟操作以免造成主板損壞。
針腳 1-2 打開: 一般操作(預設)
針腳 1-2 短路: 清空CMOS數據
清空CMOS數據過程:
1. 關閉AC電源。
2. 將跳線設置成1-2接腳短路，建議可以使用一個金屬物體如螺絲起子同時
觸碰1-2針腳。
3. 等待5秒鐘。
4. 清空CMOS數據後，請確認跳線設定為1-2針脚打開。
5. 打開AC電源。
6. 開機後按下<Del>鍵進入BIOS設定。

Biostar B550MX/E PRO Specifications

General

Processor socket	Socket AM4
Processor manufacturer	AMD
Compatible processor series	AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 3rd Gen, AMD Ryzen 9 5th Gen
Maximum number of SMP processors	1
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	AMD B550
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64
ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	2133, 2400, 2667, 2933, 3200, 3600, 3800, 4000, 4400, 4600, 4800, 4933 MHz
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
DirectX version	12.0
Parallel processing technology support	Not supported
Number of M.2 (M) slots	2
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Wi-Fi	No
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
BIOS type	-
Cables included	SATA
Bundled software	BullGuard
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	244 mm
