第二章: 硬體安裝 | 13
B760MZ-E PRO | B760MX-E PRO | B760MH-E PRO | B760MP-E PRO
第二章: 硬體安裝

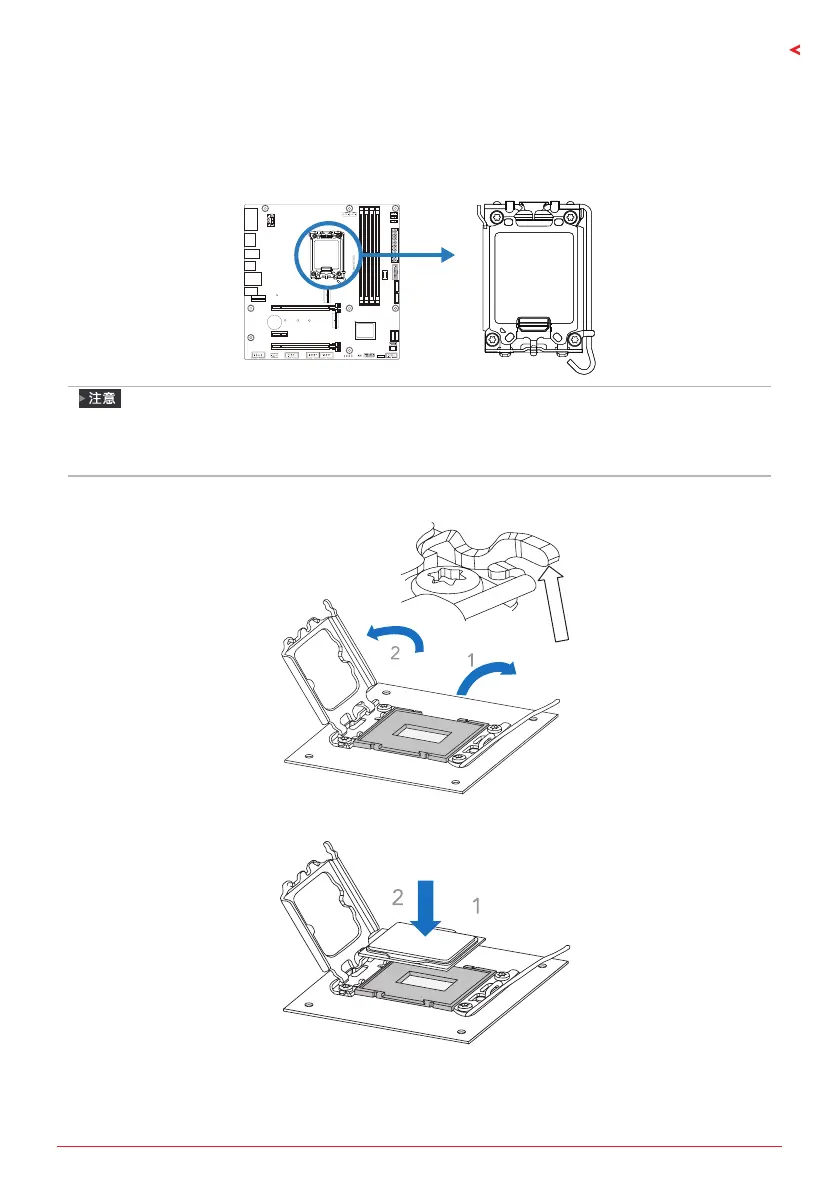

2�1 中央處理器(CPU)
步驟1: 找到主板上的CPU插槽。
»
安裝前請取掉針腳保護蓋並妥善保管備使用移開CPU後請蓋上保護蓋以確保針腳不會被
壞。
»
主板可能配有兩種不同的針腳保護蓋請參照以下指示取掉保護蓋
步驟2: 將ILM拉桿向上抬起並將 CPU保護蓋掀起。
步驟3: 將處理器對準插槽上相對應位置。

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Biostar B760MZ-E PRO and is the answer not in the manual?

Biostar B760MZ-E PRO Specifications

General IconGeneral
Processor socketLGA 1700
Processor manufacturerIntel
Compatible processor seriesIntel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Maximum number of SMP processors1
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds5000, 5200, 5400, 5600, 5800, 6000 MHz
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Parallel processing technology support-
USB 2.0 connectors2
EPS power connector (8-pin)Yes
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
Wi-FiNo
LAN controllerRealtek RTL8125B
Ethernet interface type2.5 Gigabit Ethernet
Audio chipRealtek ALC897
Component forPC
Motherboard chipsetIntel B760
PC health monitoringFAN, Temperature, Voltage
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Cables includedSATA
Weight and Dimensions IconWeight and Dimensions
Width244 mm
