Biostar B760MZ-E PRO - 2.5 Expansion Slots

Chapter 2: Hardware installaon | 17
B760MZ-E PRO | B760MX-E PRO | B760MH-E PRO | B760MP-E PRO
Memory Capacity
DIMM Socket Locaon DDR5 Module Total Memory Size
DDR5_A1 8GB/16GB/32GB
Max is 128GB.
DDR5_A2 8GB/16GB/32GB
DDR5_B1 8GB/16GB/32GB
DDR5_B2 8GB/16GB/32GB
Dual Channel Memory Installaon
Please refer to the following requirements to acvate Dual Channel funcon:
Install memory module of the same density in pairs, shown in the table.
Dual Channel Status DDR5_A1 DDR5_A2 DDR5_B1 DDR5_B2
Enabled X O X O
Enabled O O O O
(O means memory installed, X means memory not installed.)
Note
»
»
When installing more than one memory module, we recommend to use the same brand and
capacity memory on this motherboard.

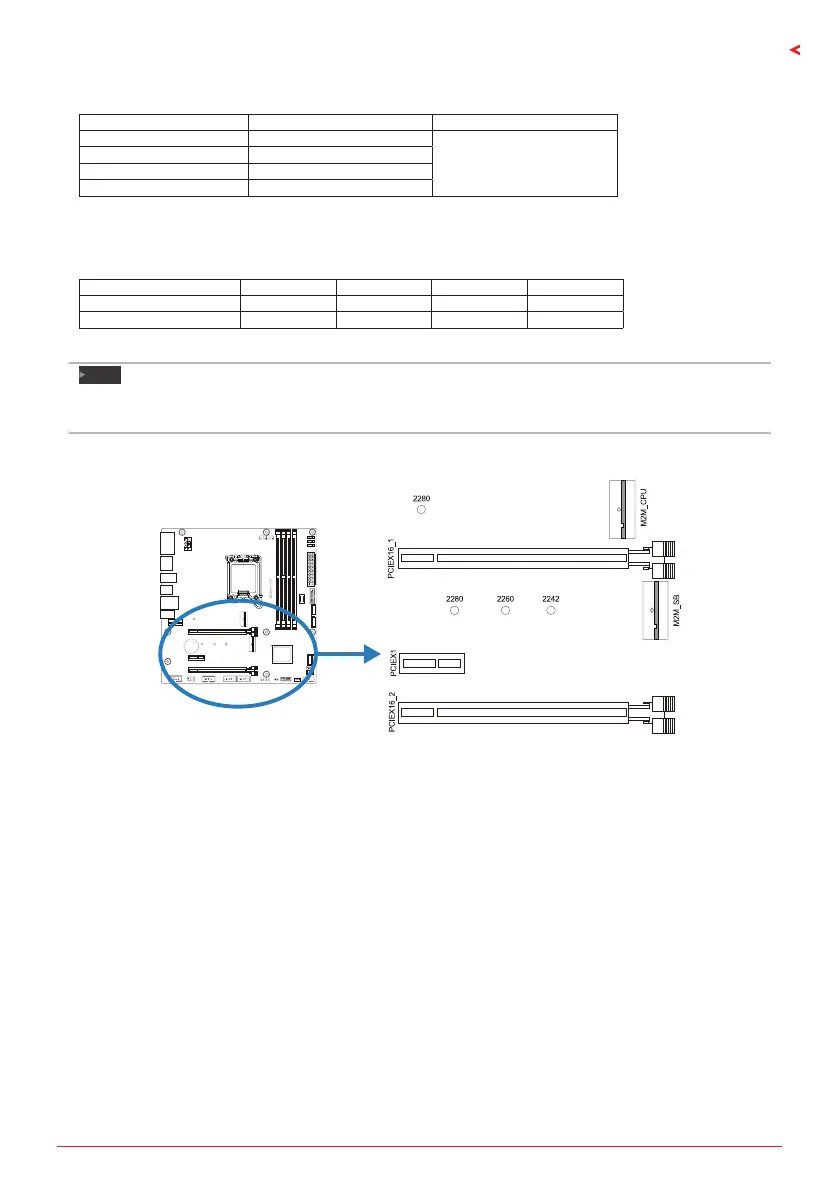

2.5 Expansion Slots
PCIEG4X16: PCI-Express Gen4 x16 Slots (x16 mode)
• PCI-Express 4.0 compliant.
• The maximum bandwidth of the PCIe slot is 64GB/s.
PCIEG3X4: PCI-Express Gen3 x16 Slots (x4 mode)
• PCI-Express 3.0 compliant.
• The maximum bandwidth of the PCIe slot is 4GB/s.
PCIEG3X1: PCI-Express Gen3 x1 Slots
• PCI-Express 3.0 compliant.
• Data transfer bandwidth up to 1GB/s per direcon; 2GB/s in total
