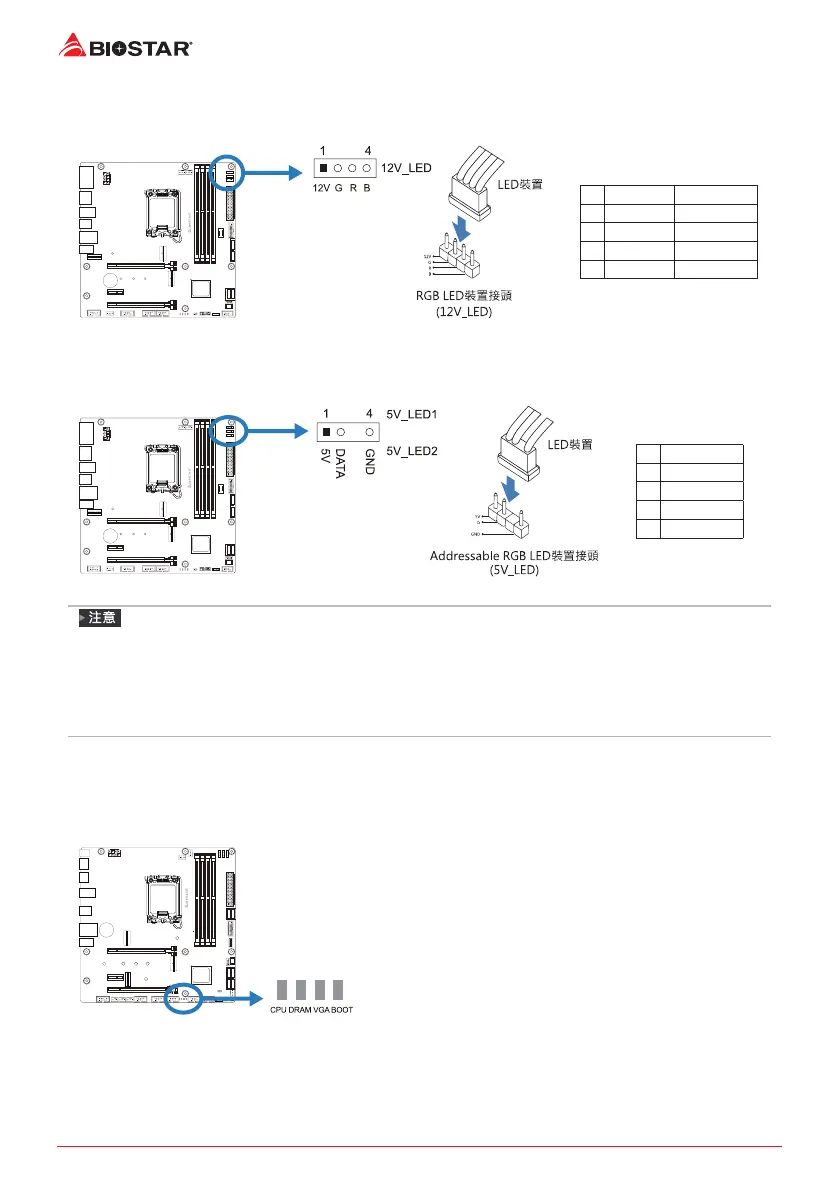

26 | 第二章: 硬體安裝
12V_LED: RGB LED裝置 (5050 SMD) 接頭
此接頭提供12V電源與RGB控制訊號,可連接RGB LED裝置(5050 SMD)。
電纜顏色 定義
1 12V (黑色) VCC12
2 G (綠色) LED_GREEN
3 R (紅色) LED_RED
4 B (藍色) LED_BLUE
5V_LED1/ 5V_LED2: Addressable RGB LED裝置 (WS2818B) 接頭
此接頭提供5V電源與數據控制訊號,可連接ARGB LED裝置 (WS2818B)。
定義
1 VCC5
2 數據
3 N/A
4 接地
»
請確保並正確的將針腳連接至LED裝置錯誤的連接可能會損壞您的LED裝置或主板
»
12V_LED接頭支援5050 RGB LED燈最大輸出功率為3A12V
»
5V_LED接頭最多可支援300個LED WS2818B Addressable RGB LED燈條最大輸出功耗為
3A (5V)
»
請使用Vivid LED DJ軟體控制LED。 有關詳細的軟體設定訊息請參閱第3.3章
2�8 LED燈
Debug LED: 檢測LED指示燈
LED指示燈顯示主板的檢測狀態。
CPU - 表示 CPU 未檢測到或發生故障。
DRAM - 表示 DRAM 未檢測到或發生故障。
VGA - 表示 GPU 未檢測到或發生故障。
BOOT - 表示啟動設備未檢測到或發生故
障。

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Biostar B760MZ-E PRO and is the answer not in the manual?

Biostar B760MZ-E PRO Specifications

General IconGeneral
Processor socketLGA 1700
Processor manufacturerIntel
Compatible processor seriesIntel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Maximum number of SMP processors1
Memory channelsDual-channel
Memory slots typeDIMM
Number of memory slots4
Supported memory typesDDR5-SDRAM
Maximum internal memory128 GB
Supported memory clock speeds5000, 5200, 5400, 5600, 5800, 6000 MHz
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Parallel processing technology support-
USB 2.0 connectors2
EPS power connector (8-pin)Yes
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
Wi-FiNo
LAN controllerRealtek RTL8125B
Ethernet interface type2.5 Gigabit Ethernet
Audio chipRealtek ALC897
Component forPC
Motherboard chipsetIntel B760
PC health monitoringFAN, Temperature, Voltage
Audio output channels7.1 channels
Motherboard form factormicro ATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64
Cables includedSATA
Weight and Dimensions IconWeight and Dimensions
Width244 mm
