Biostar B760MZ-E PRO User Manual

第二章: 硬體安裝 | 25
B760MZ-E PRO | B760MX-E PRO | B760MH-E PRO | B760MP-E PRO

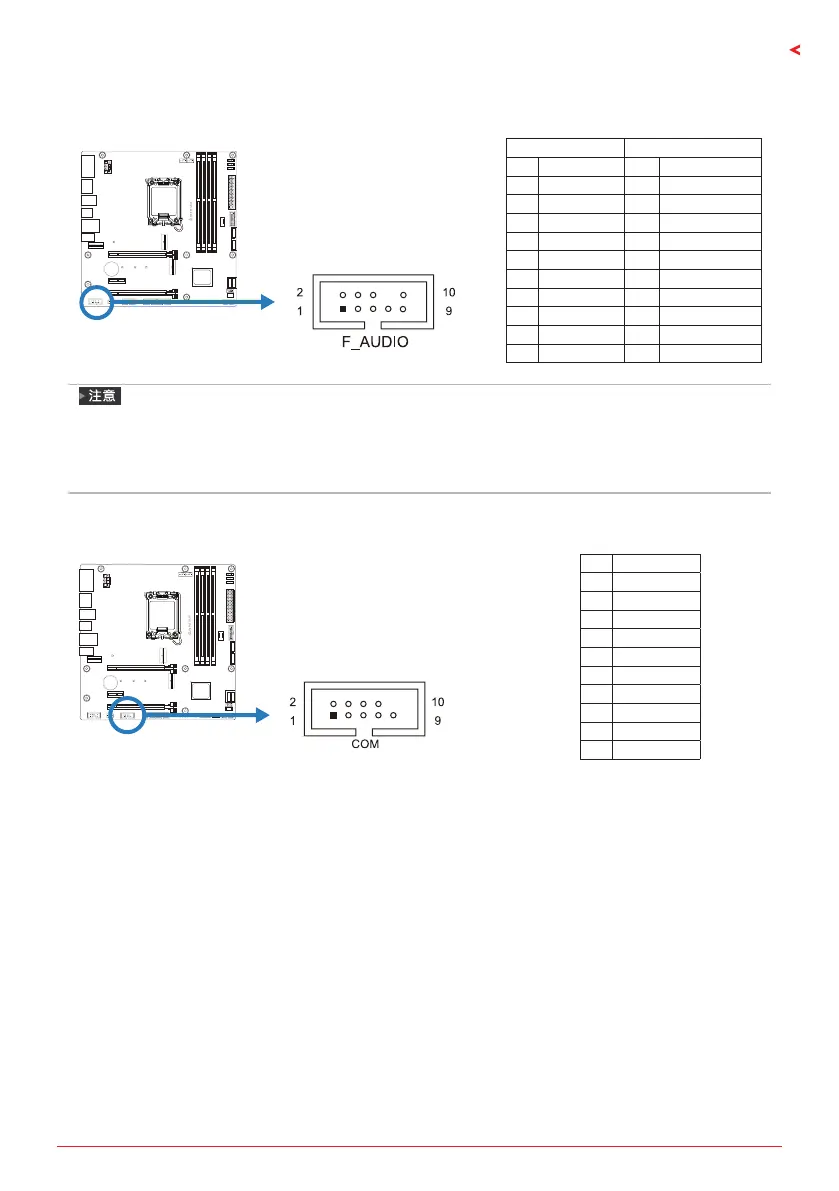

F_AUDIO1: 前置面板音效接頭
此接頭可連接音效輸出數據線，支援HD(高解析)音效和AC’97。
HD Audio AC’97
針 定義 針 定義
1 Mic Left in 1 Mic In
2 接地 2 接地
3 Mic Right in 3 Mic Power
4 GPIO 4 Audio Power
5 Right line in 5 RT Line Out
6 Jack Sense 6 RT Line Out
7 Front Sense 7 Reserved
8 Key 8 Key
9 Left line in 9 LFT Line Out
10 Jack Sense 10 LFT Line Out
»
當使用前置HD音效插孔並插入耳機/麥克風時，後置聲音將自動禁用。
»
建議您連接前置高解析音效插孔，即可使用主板高解析音效功能。
»
如果要連接使用AC’97前置音效輸出數據線，請關閉”前置面板插孔檢測功能”。此功能在系統
音 效 工 具 中可 見。
COM: 序列埠接頭
此主板提供序列埠接頭可接至RS-232接頭。
針 定義
1 載波檢測
2 接收資料
3 發送數據
4 資料終端備妥
5 接地訊號
6 資料集備妥
7 輸送要求
8 清除發送
9 震鈴指示器
10 Key

Biostar B760MZ-E PRO Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Maximum number of SMP processors	1
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
Supported memory clock speeds	5000, 5200, 5400, 5600, 5800, 6000 MHz
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Parallel processing technology support	-
USB 2.0 connectors	2
EPS power connector (8-pin)	Yes
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
Wi-Fi	No
LAN controller	Realtek RTL8125B
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Component for	PC
Motherboard chipset	Intel B760
PC health monitoring	FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Cables included	SATA

Weight and Dimensions

Width	244 mm
