Biostar H410MHG User Manual

Chapter 2: Hardware installaon | 9
H410MHG

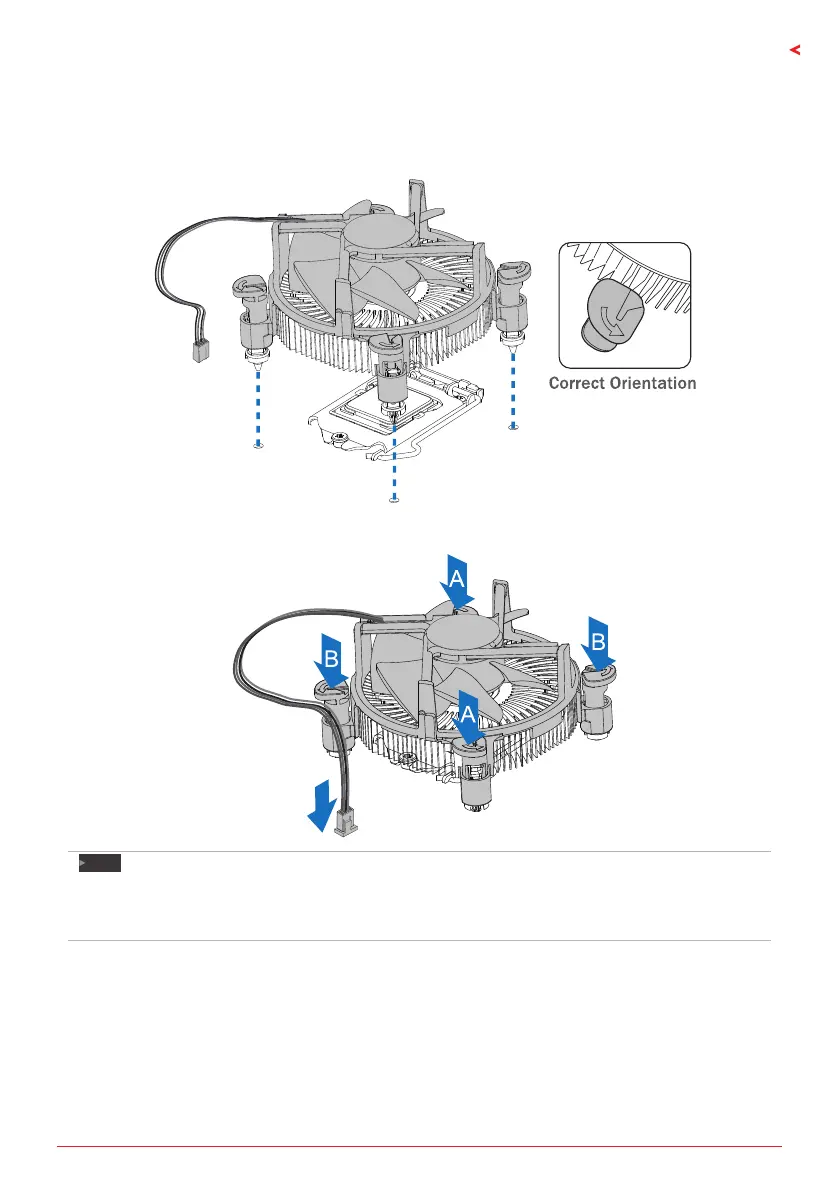

2.2 Install a Heatsink
Step 1: Place the CPU fan assembly on top of the installed CPU and make sure that the four
fasteners match the motherboard holes. Orient the assembly and make the fan cable is closest
to the CPU fan connector.
Step 2: Press down two fasteners at one me in a diagonal sequence to secure the CPU fan
assembly in place. As each fastener locks into posion a click should be heard.
Note
»
 ApplythethermalinterfacematerialontheCPUbeforeheatsinkinstallaon,ifnecessary.
»
 DonotforgettoconnecttheCPUfanconnector.
»
 Forproperinstallaon,pleasekindlyrefertotheinstallaonmanualofyourCPUheatsink.

Biostar H410MHG Specifications

General

Audio chip	Realtek ALC887
Component for	PC
Motherboard chipset	Intel H410
PC health monitoring	CPU, FAN, Temperature, Voltage
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	Intel
Windows operating systems supported	Windows 10 x64
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Non-ECC	Yes
Memory slots type	DIMM
Number of memory slots	2
Supported memory types	DDR4-SDRAM
Maximum internal memory	64 GB
Supported memory clock speeds	1866, 2133, 2400, 2666, 2800, 2933 MHz
Supported memory module capacities	4GB, 8GB, 16GB, 32GB
Number of storage drives supported	5
Supported storage drive interfaces	M.2, SATA III
DirectX version	12.0
Parallel processing technology support	-
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
BIOS type	UEFI
Headphone outputs	3
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Cables included	SATA
Bundled software	BullGuard

Weight and Dimensions

Depth	244 mm
Width	191 mm
